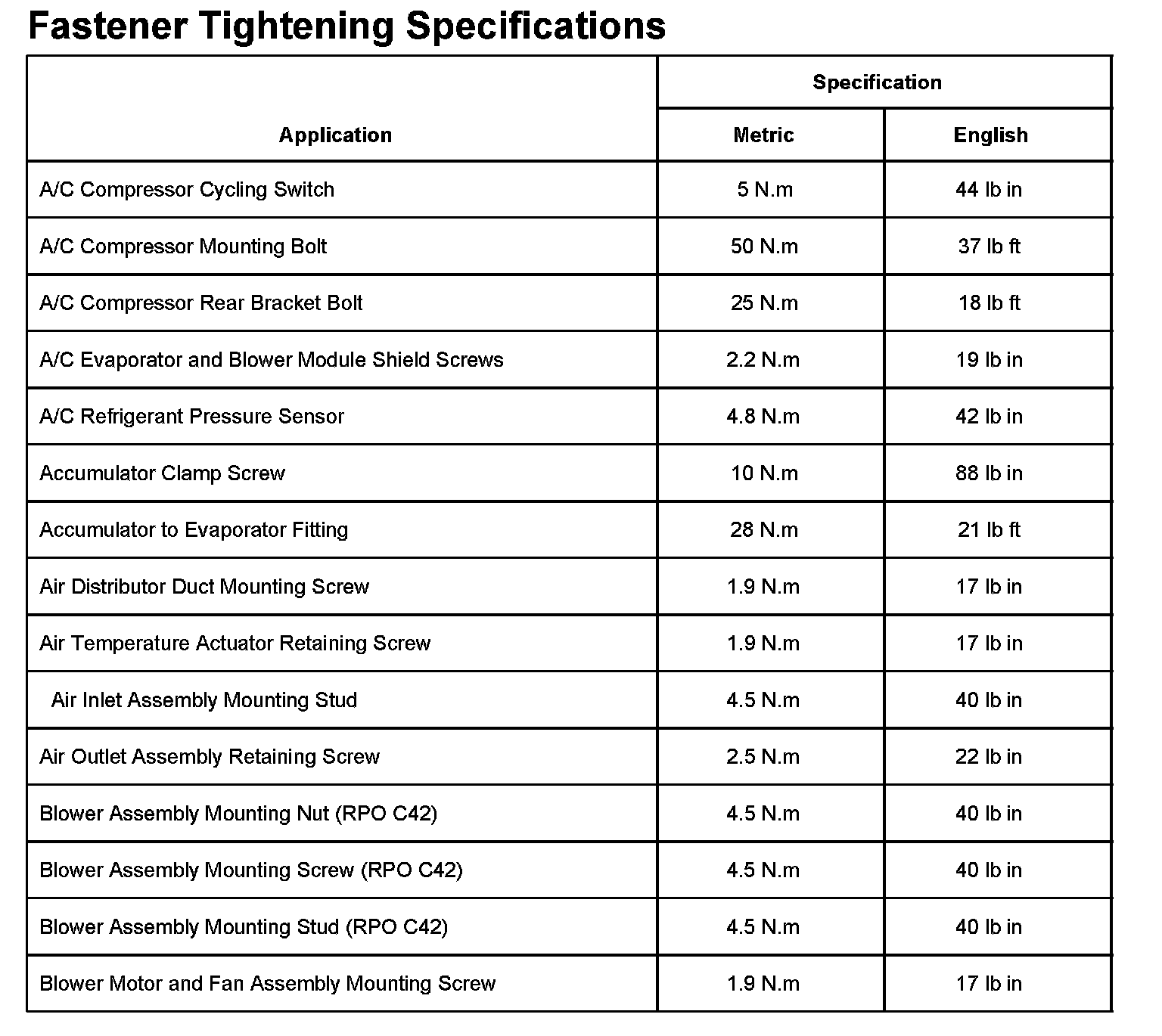

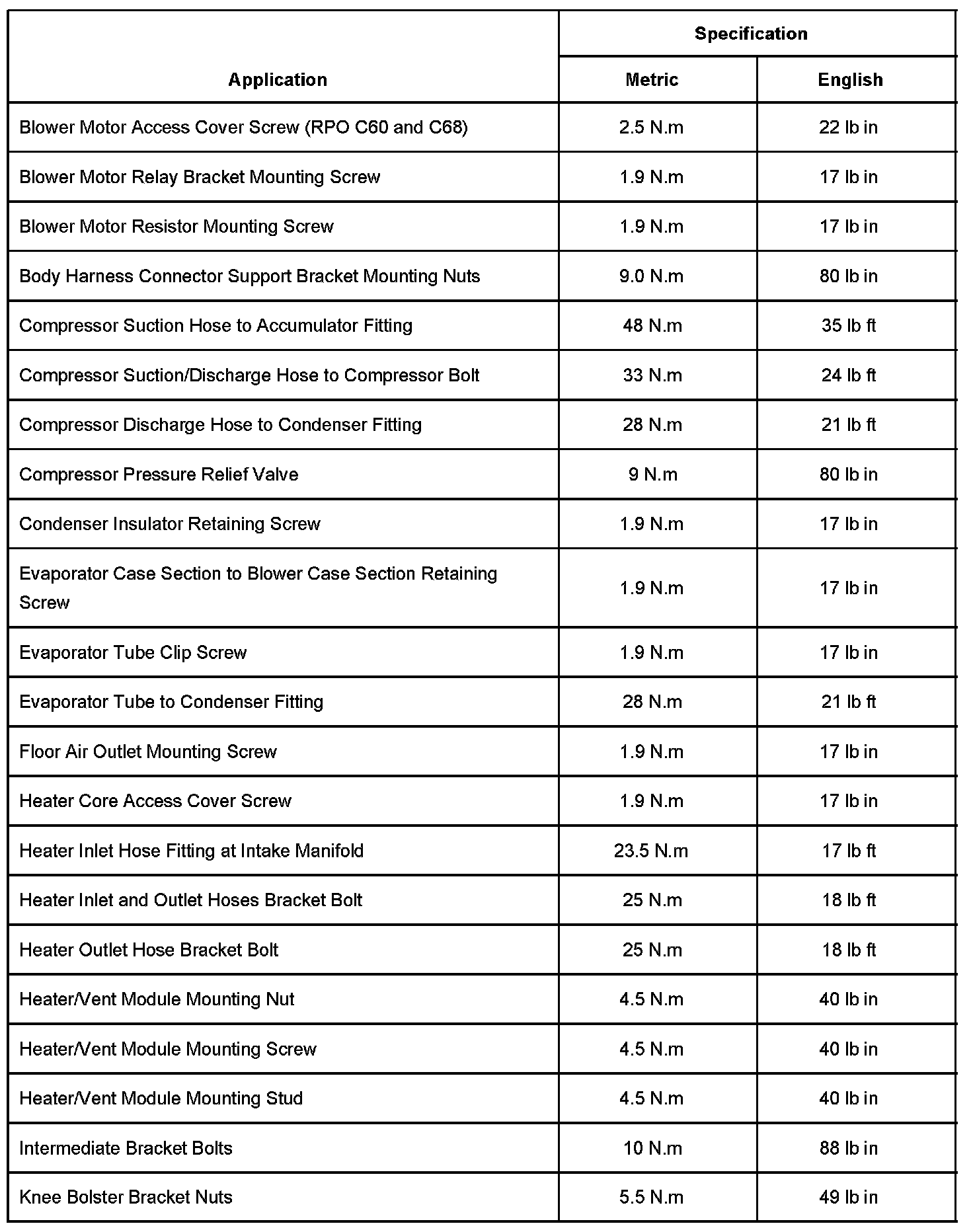

System Specifications

Heating ,Ventilation and Air Conditioning:



Heating ,Ventilation and Air Conditioning:



HVAC System - Manual:



HVAC System - Automatic:
