Home >> Chevrolet >> 2003 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering Column

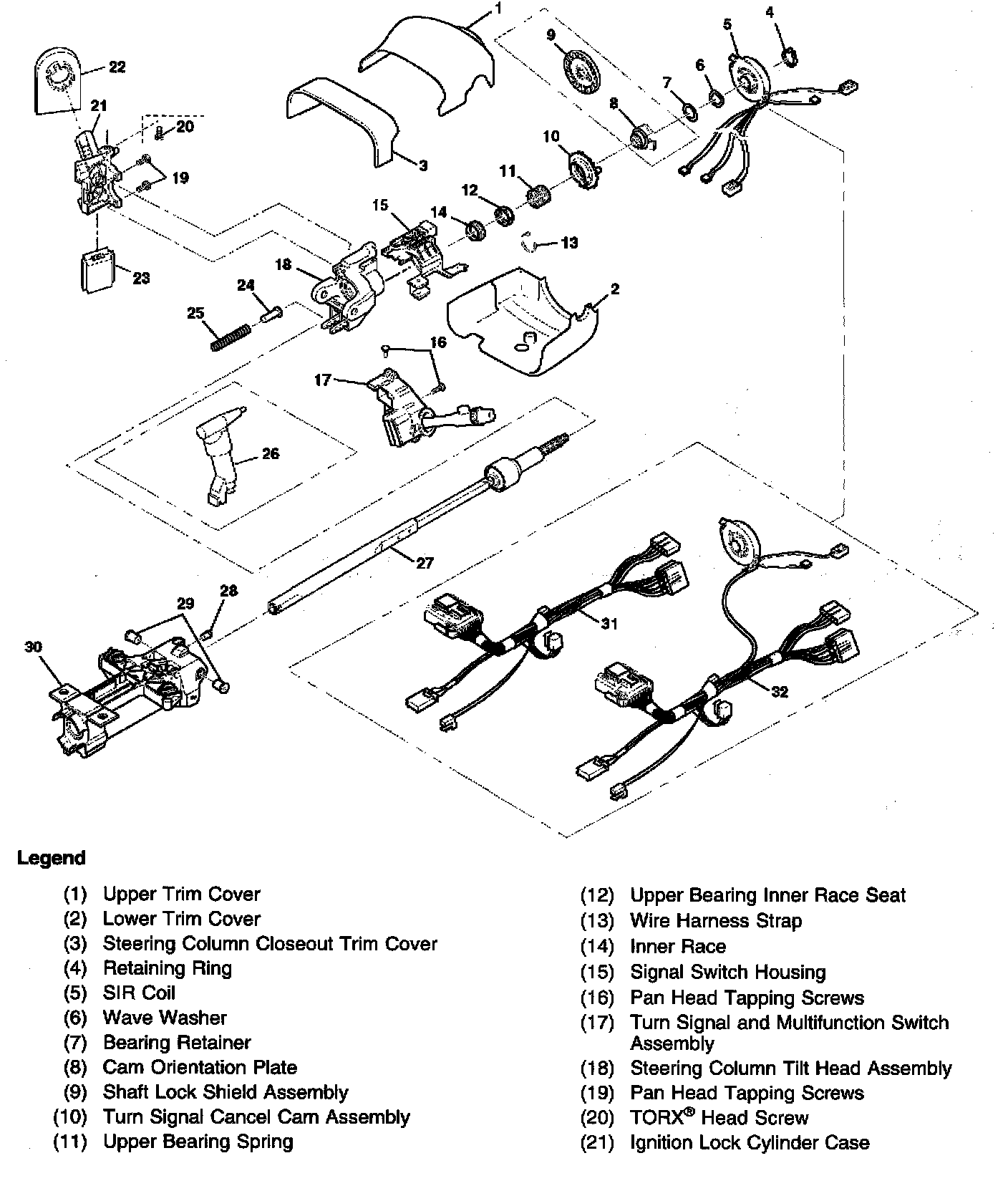

Steering Column

Part 1 Of 2:



Part 2 Of 2:
