Home >> Chevrolet >> 2003 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain and Components

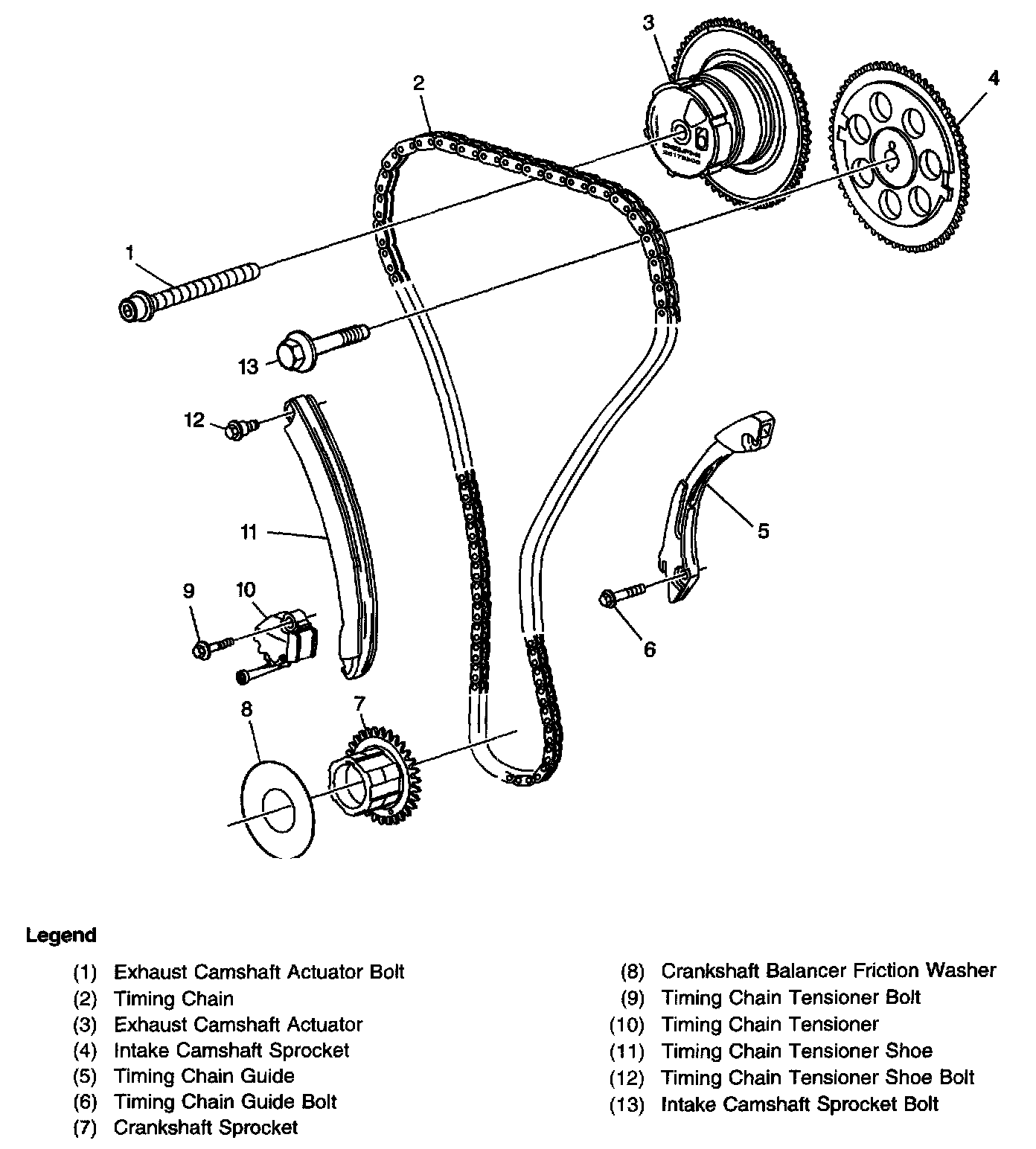

Timing Chain and Components
