Home >> Chevrolet >> 2003 >> Tracker 2WD V6-2.5L VIN 4 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Disc Brake System >> System Specifications

System Specifications

Disc Brake Fastener Tightening Specifications:

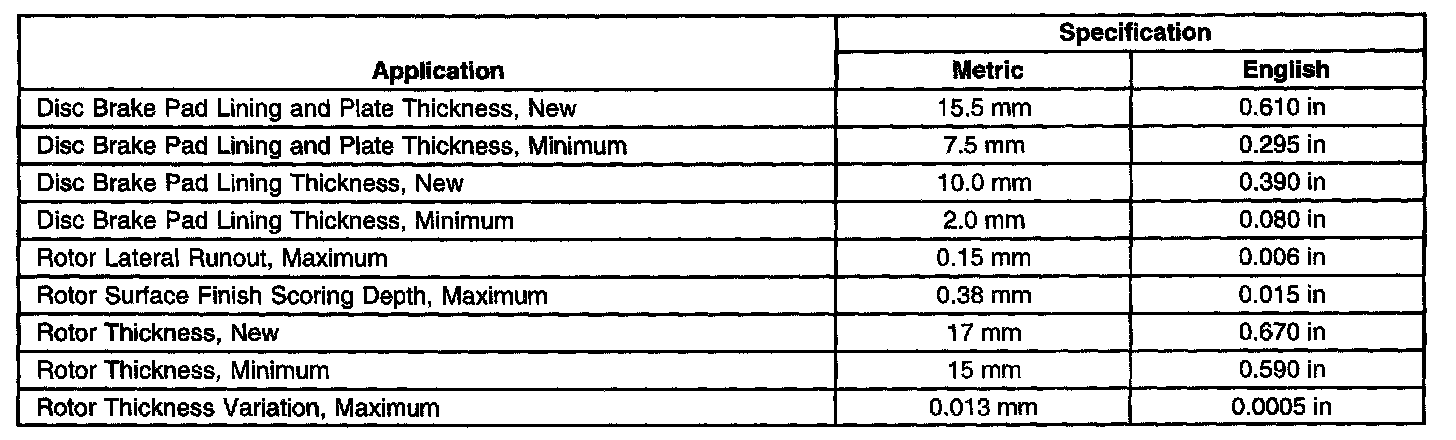

Disc Brake Component Specifications:
