Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Rear Fuse Block

Rear Fuse Block

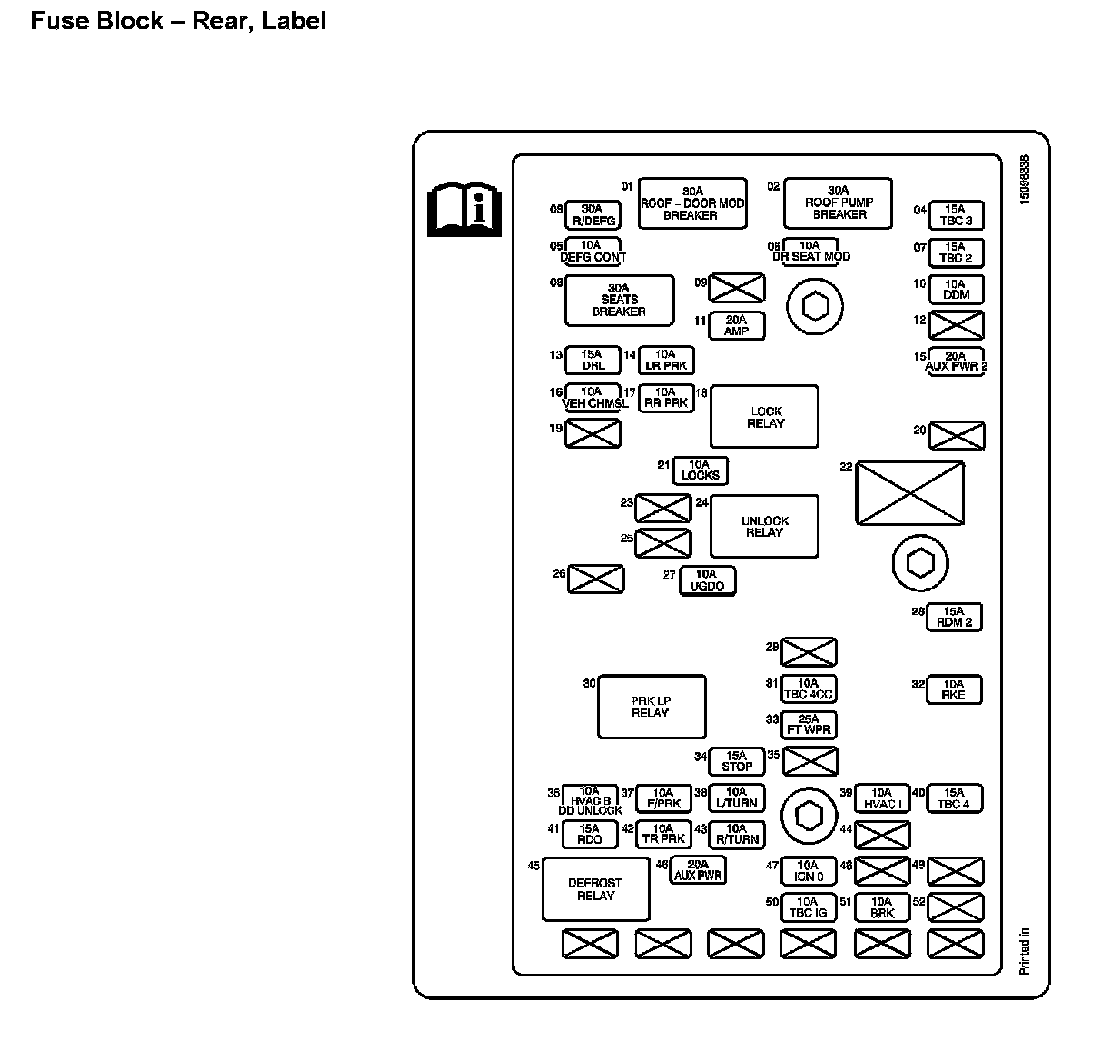

Location View:

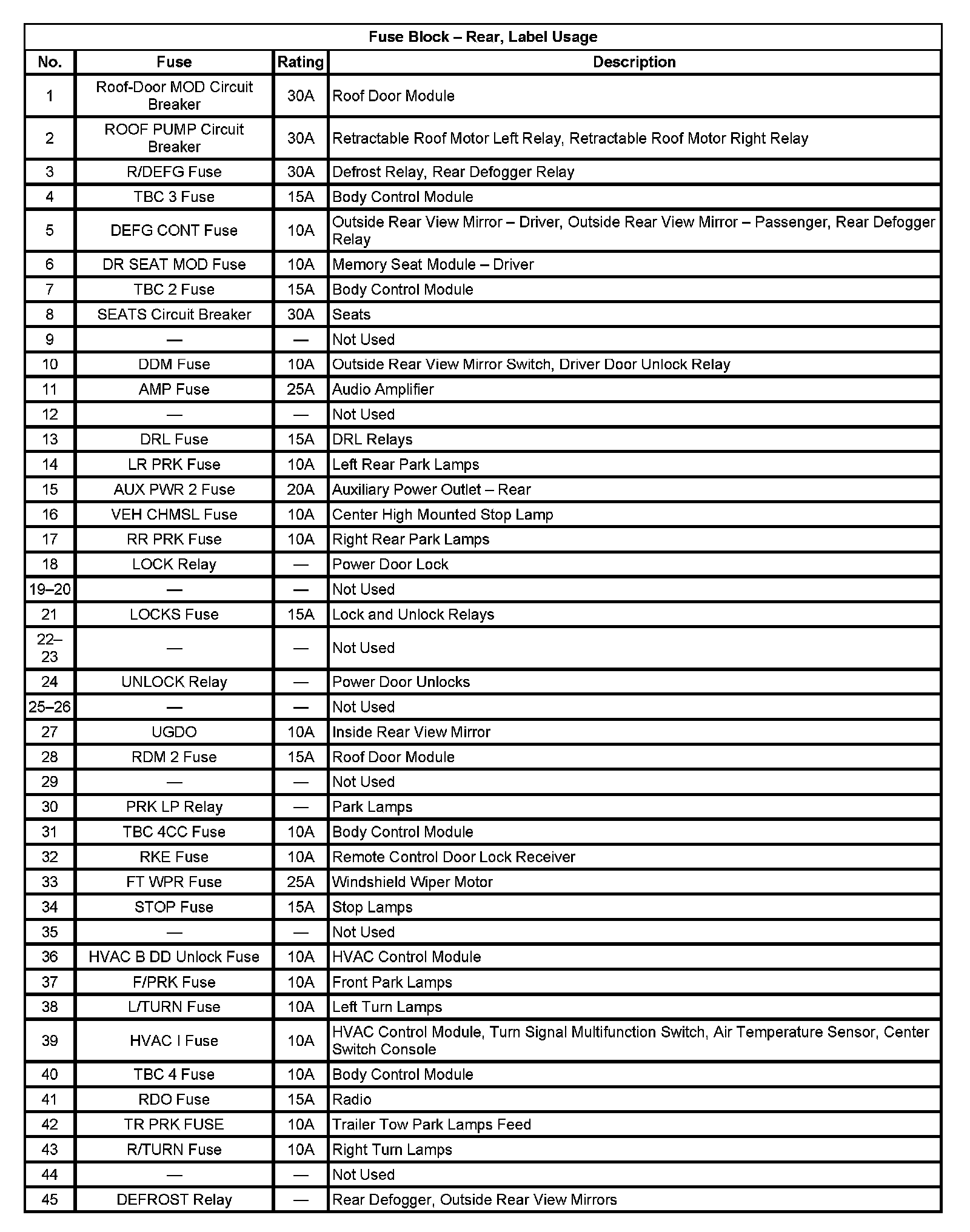

Application Table (Part 1):




Application Table (Part 2):

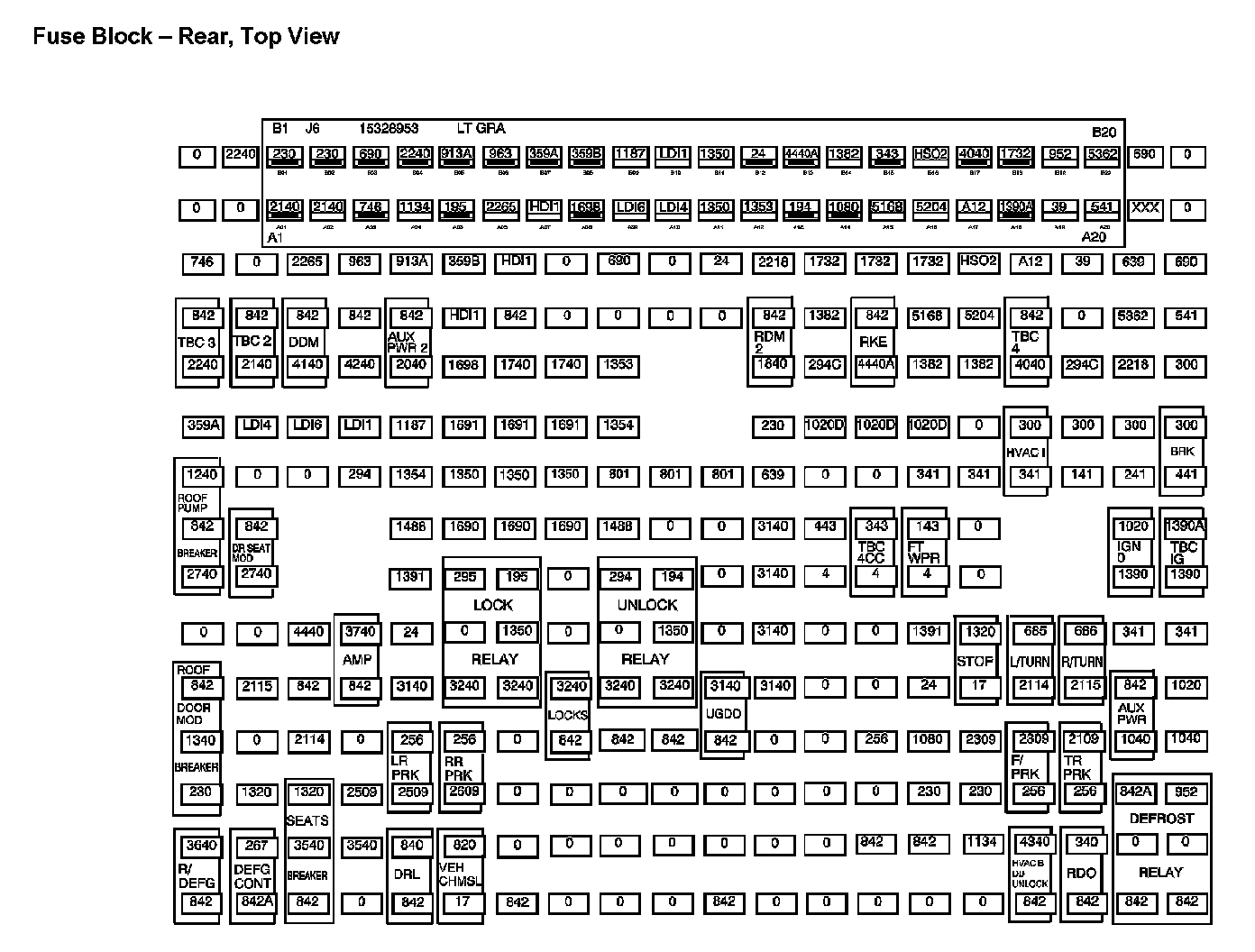

Location View:




Location View:
