Home >> Chevrolet >> 2003 >> SSR V8-5.3L VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

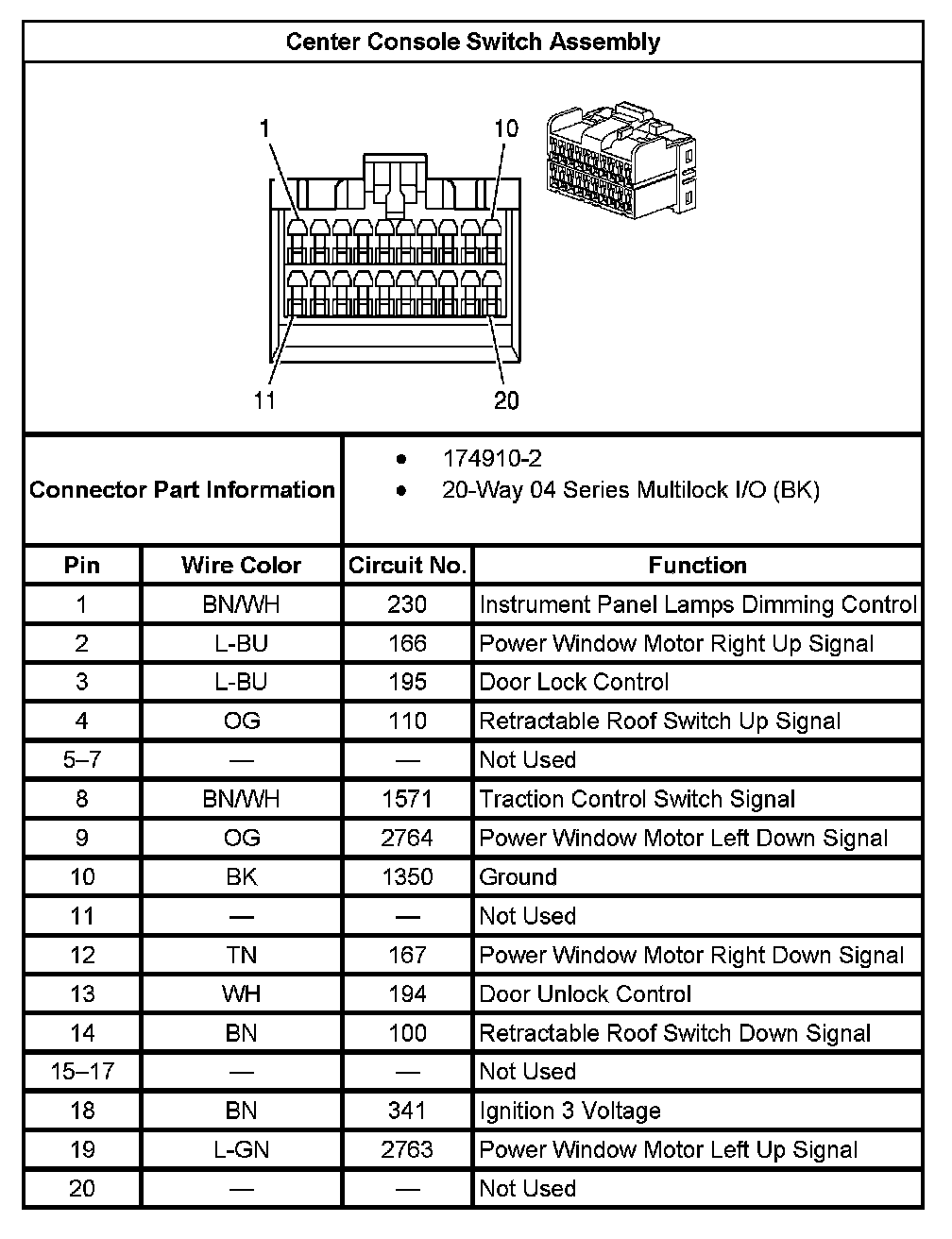

Center Console Switch Assembly:
