Fuel Tank Pressure Sensor: Service and Repair

REMOVAL PROCEDURE
1. Remove the pickup box from the vehicle.

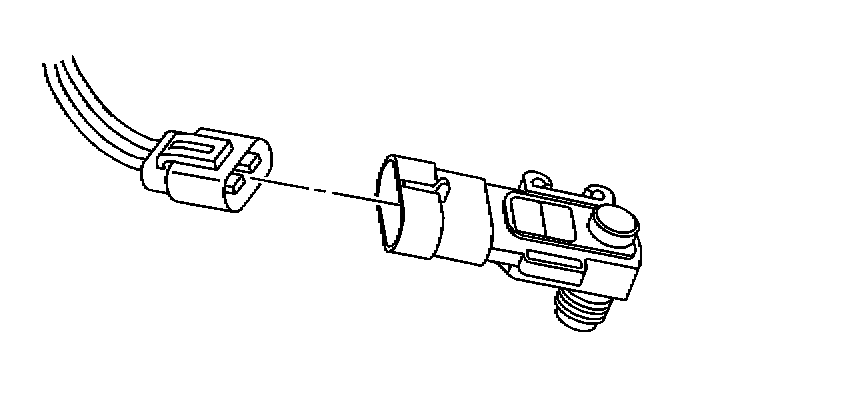

2. Remove the fuel tank pressure (FTP) sensor electrical connector.

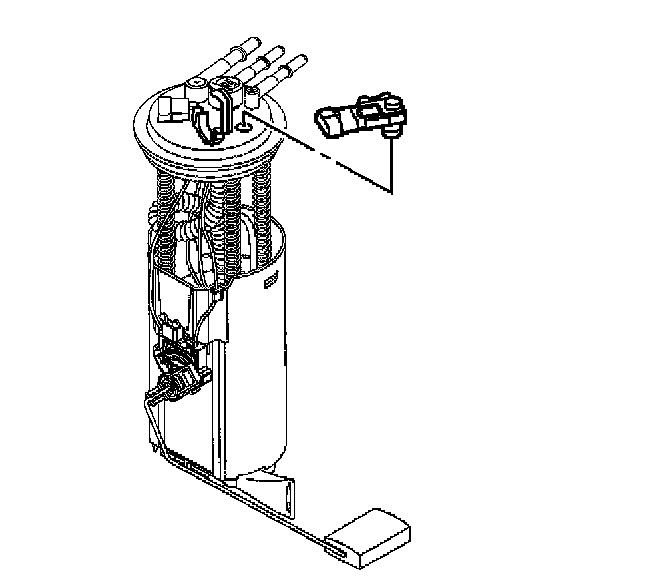

3. Remove the FTP sensor.

INSTALLATION PROCEDURE

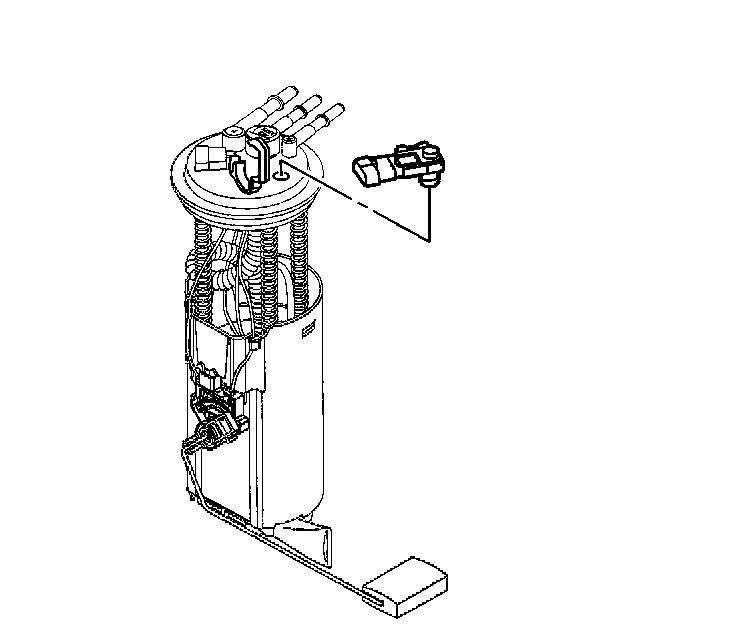

1. Install the FTP sensor.

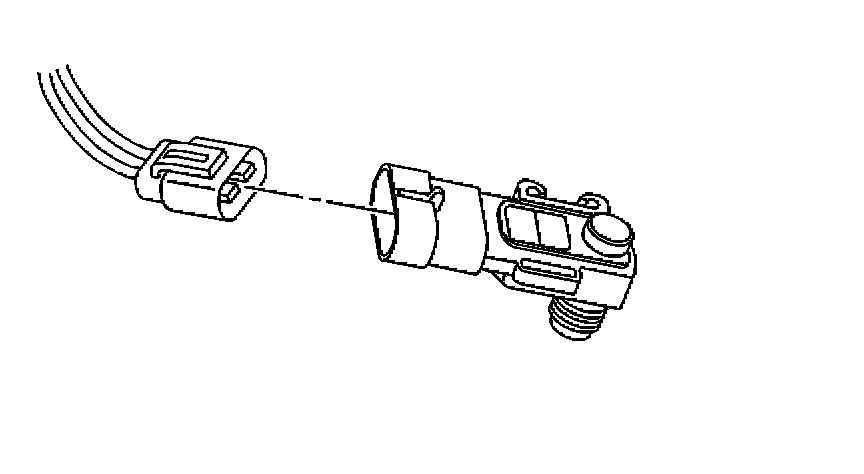

2. Install the FTP sensor electrical connector.
3. Install the pickup box.
