Home >> Chevrolet >> 2003 >> S10/T10 P/U 2WD L4-2.2L VIN H >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake and Exhaust Manifold Components

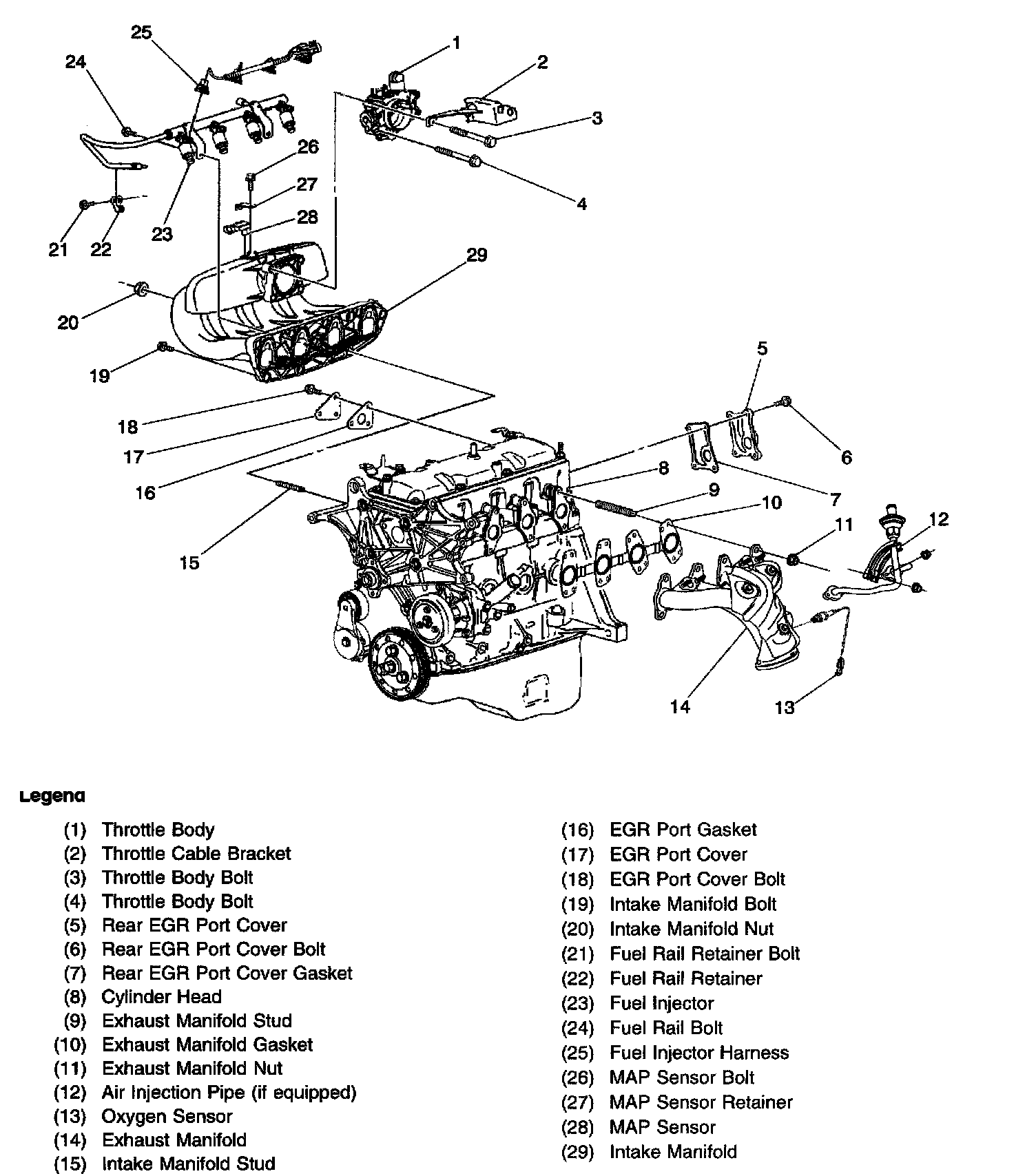

Intake and Exhaust Manifold Components
