Power Door Systems Component Views
Power Door Systems Component Views

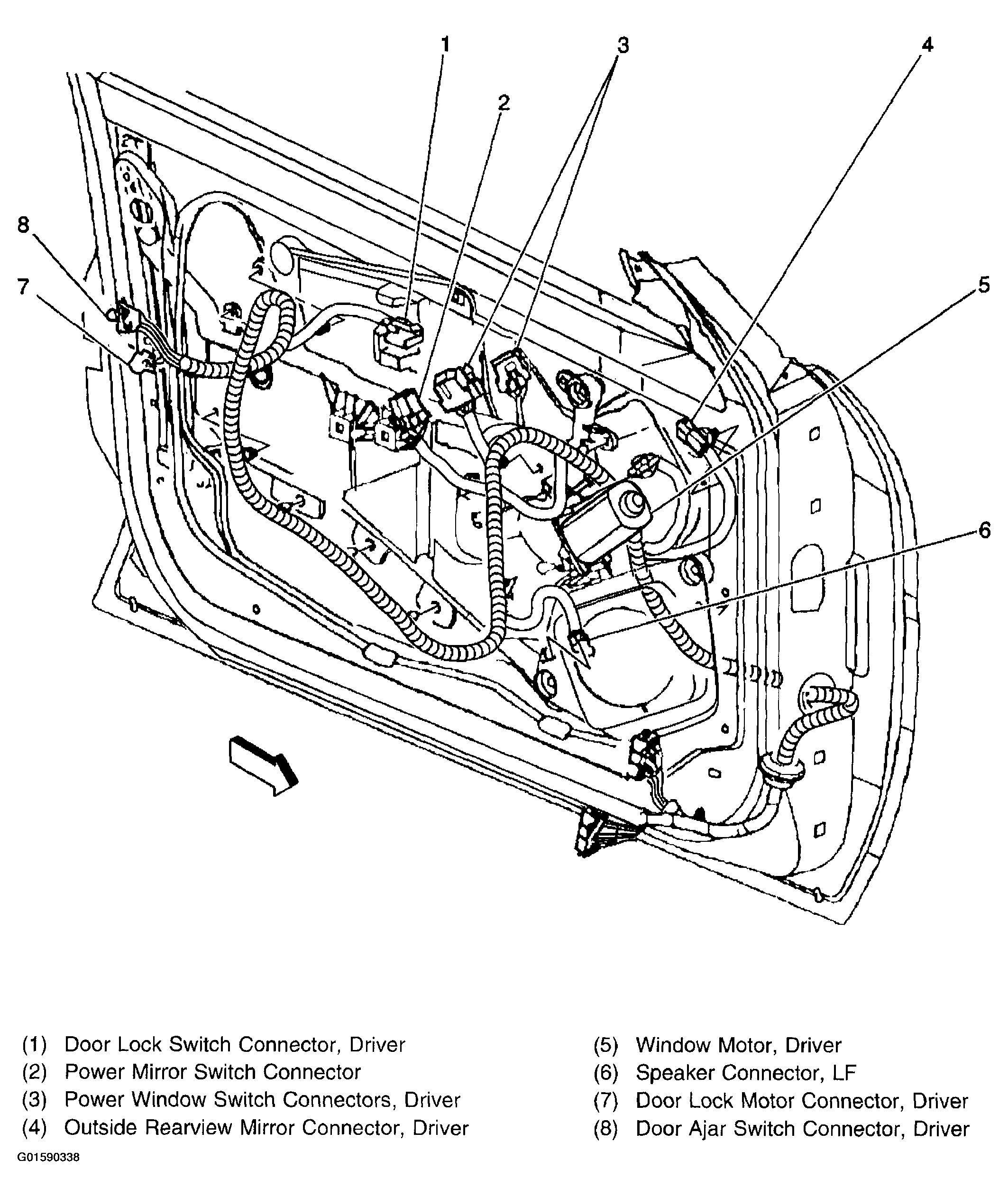

Fig 1: Locating Power Door Systems Components (Drivers Door)
Courtesy of GENERAL MOTORS CORP.

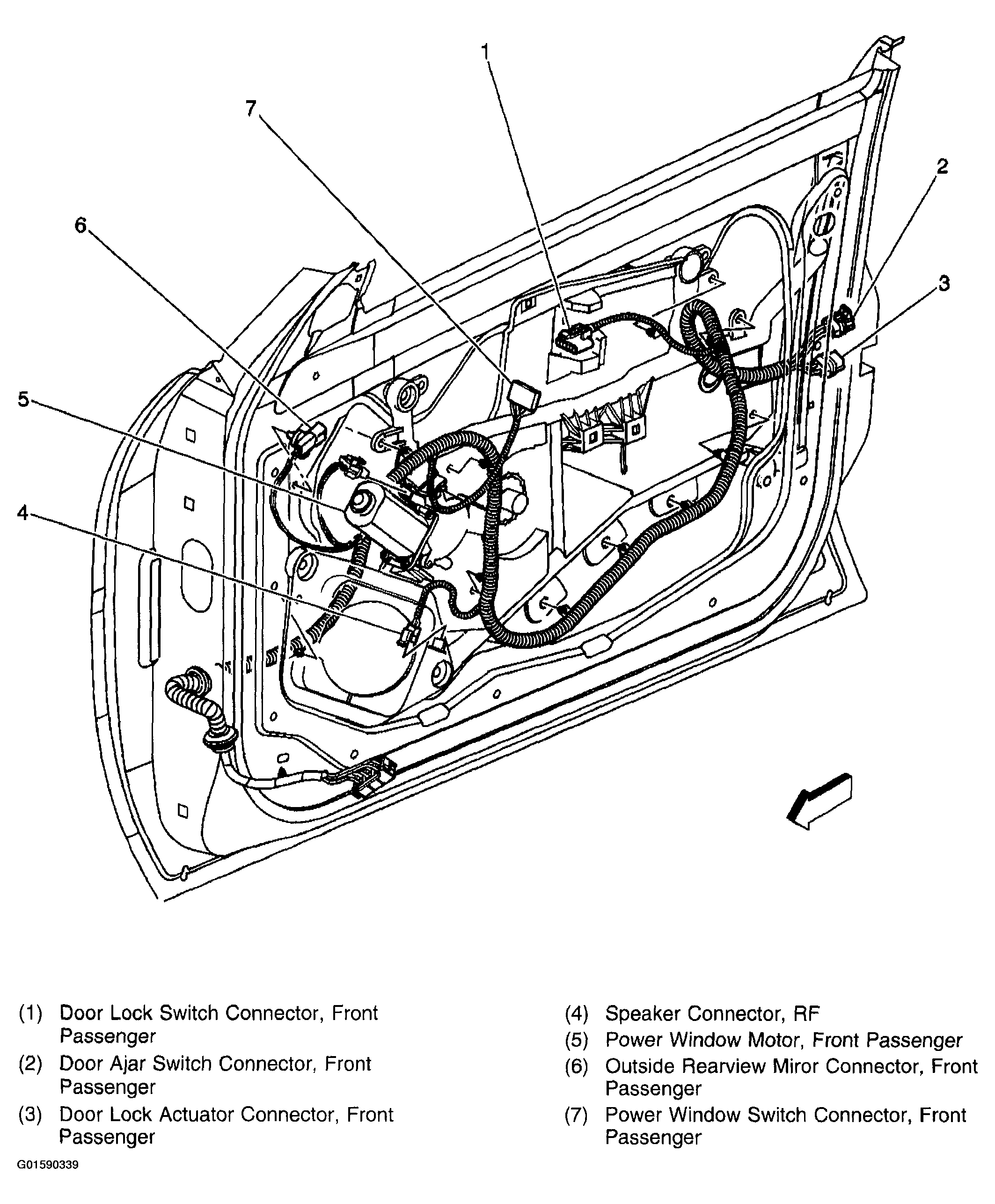

Fig 2: Locating Power Door Systems Components (Front Passenger Door)
Courtesy of GENERAL MOTORS CORP.

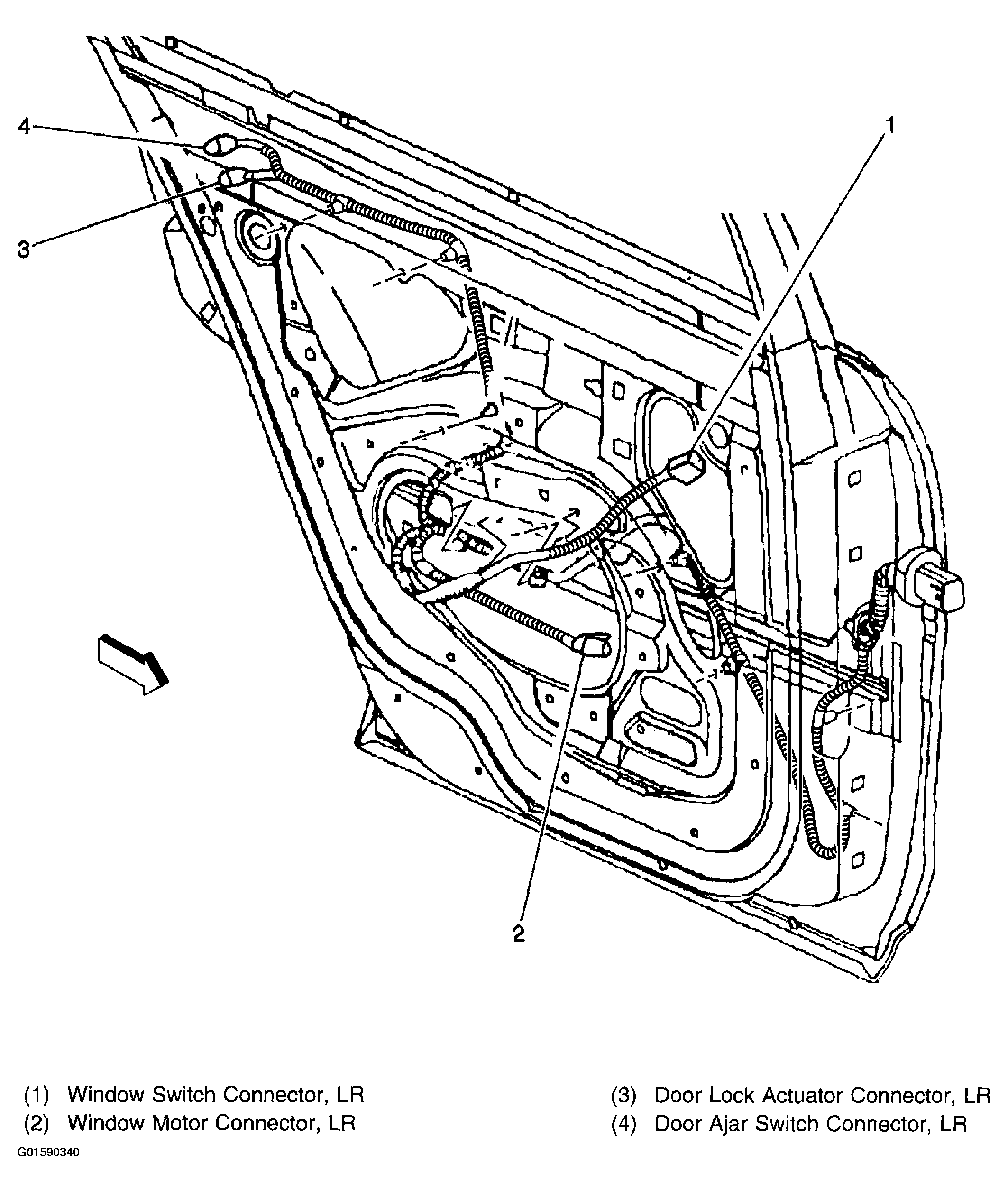

Fig 3: Locating Power Door Systems Components (Left Rear Door)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
