Fastener Tightening Specifications

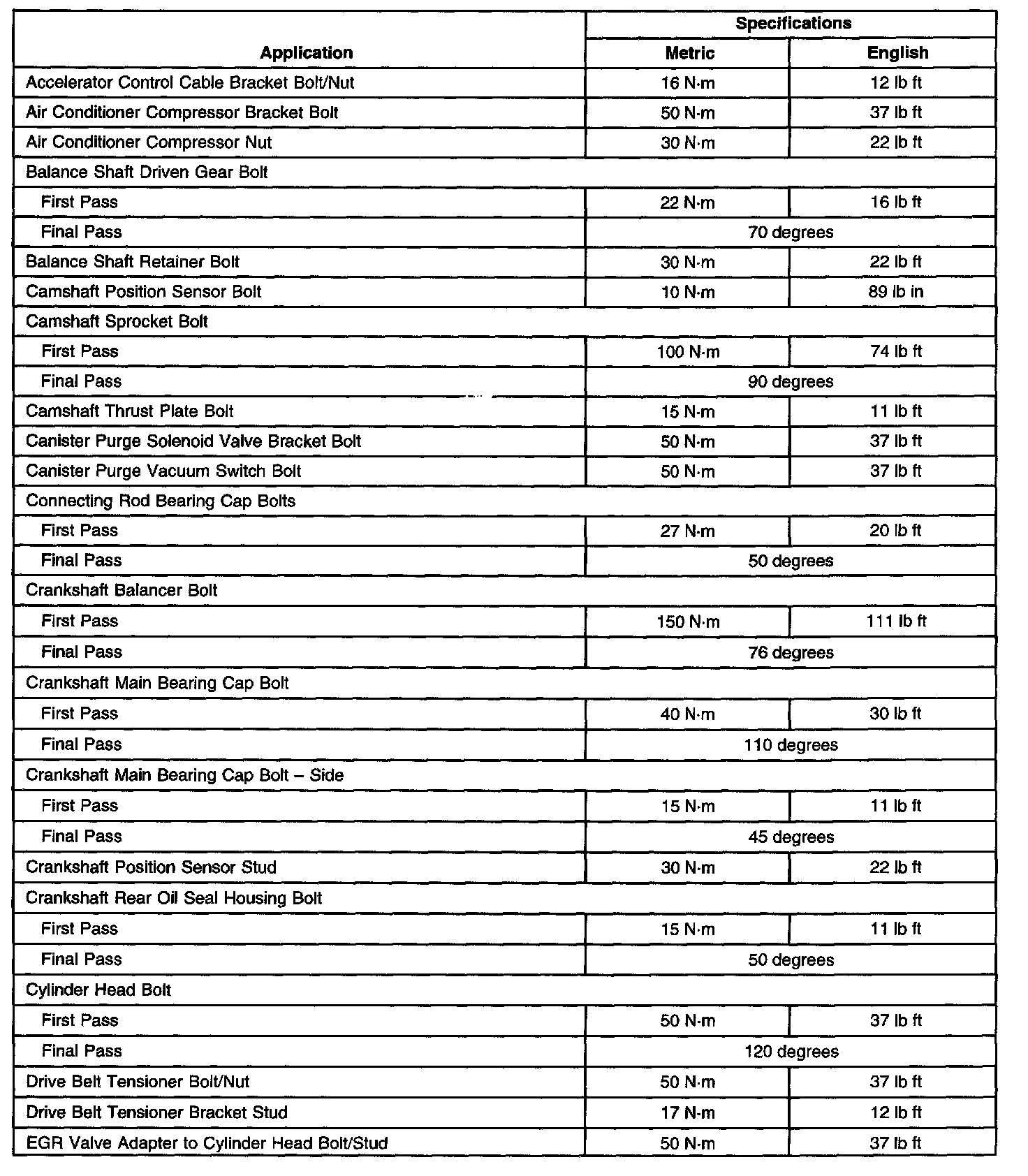

Part 1 Of 3:

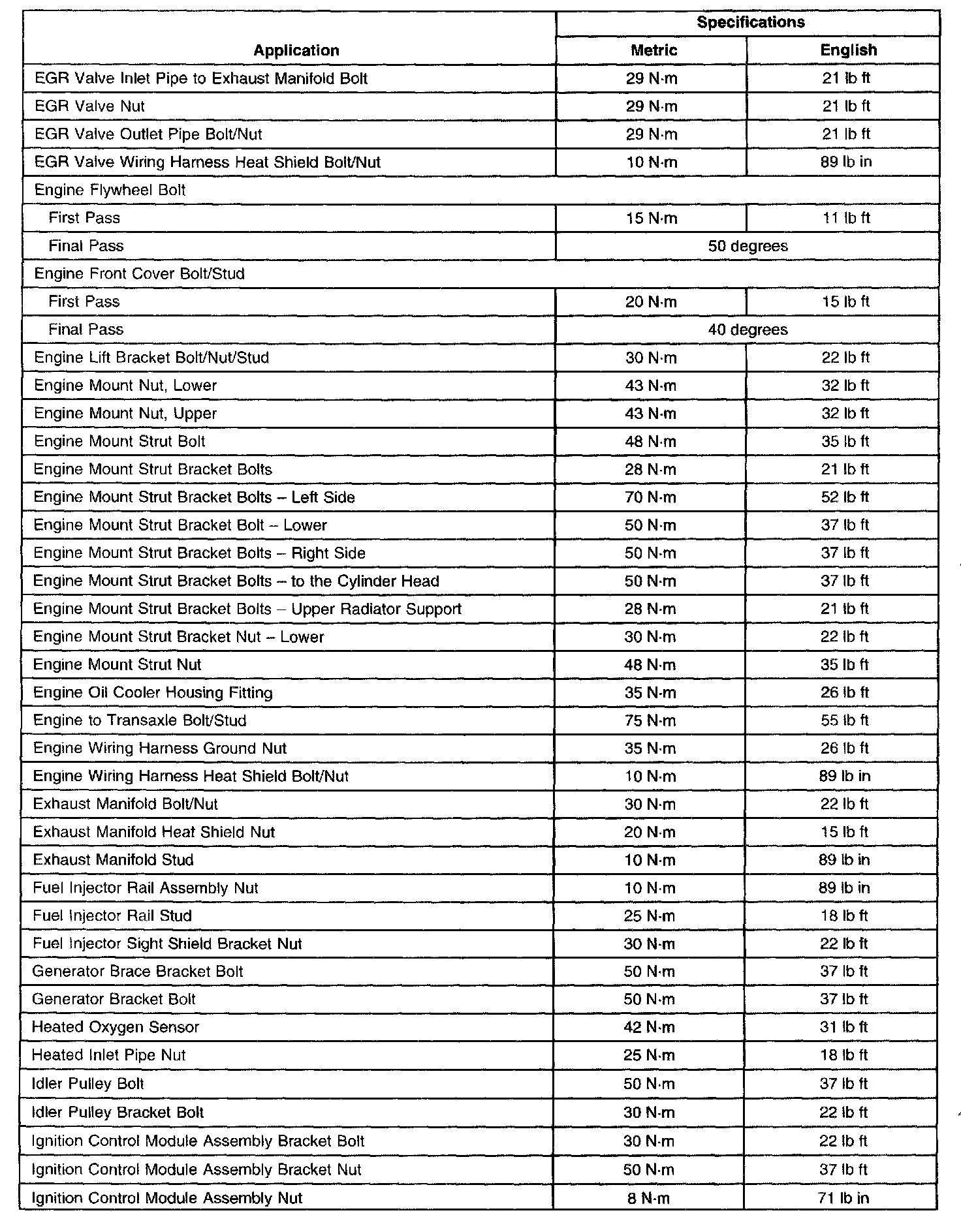

Part 2 Of 3:

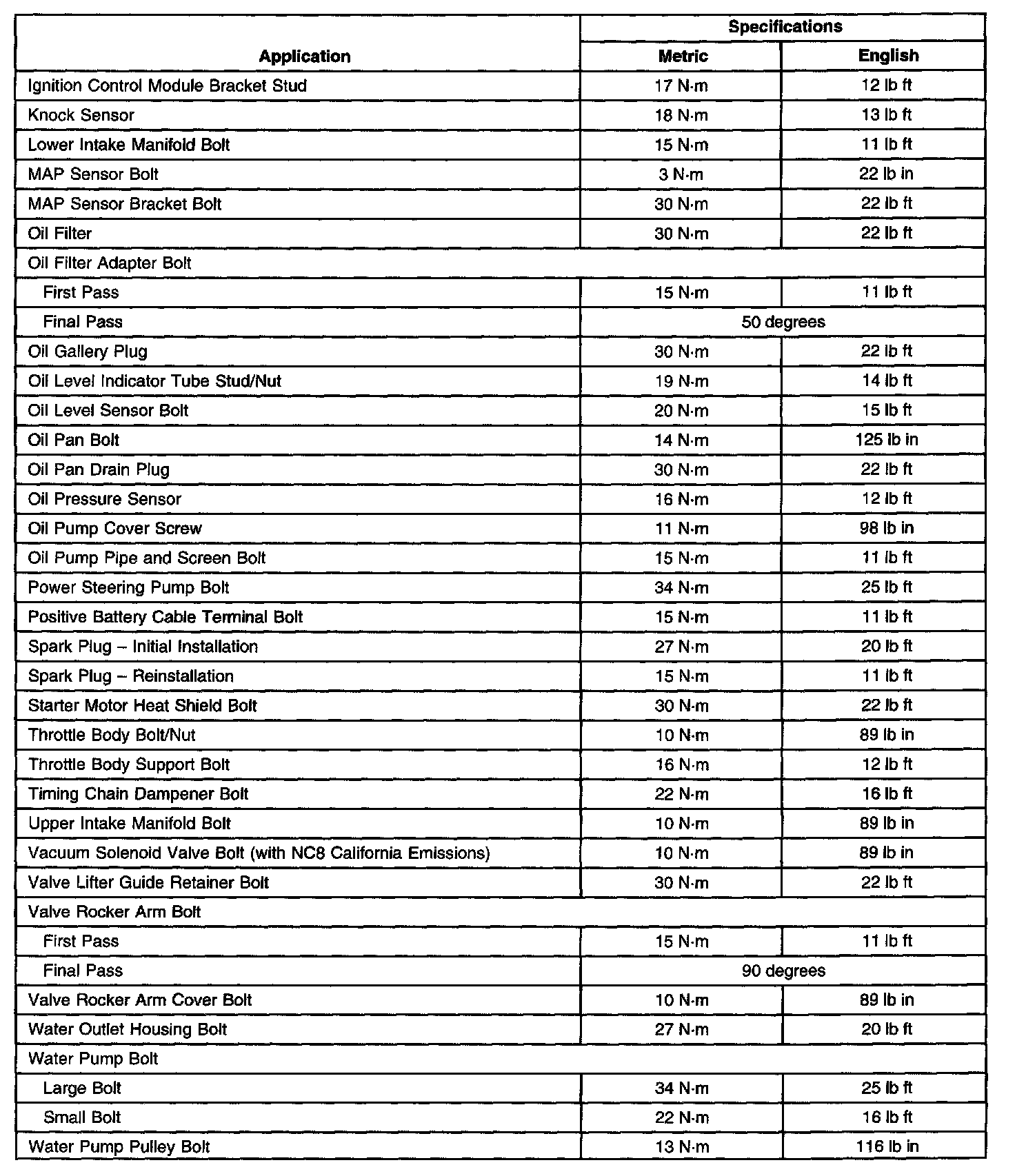

Part 3 Of 3:









Cylinder Head Tightening Sequence
Install the new cylinder head bolts




Lower Intake Manifold Tightening Sequence




Upper Intake Manifold Tightening Sequence
