Intake Manifold and Components

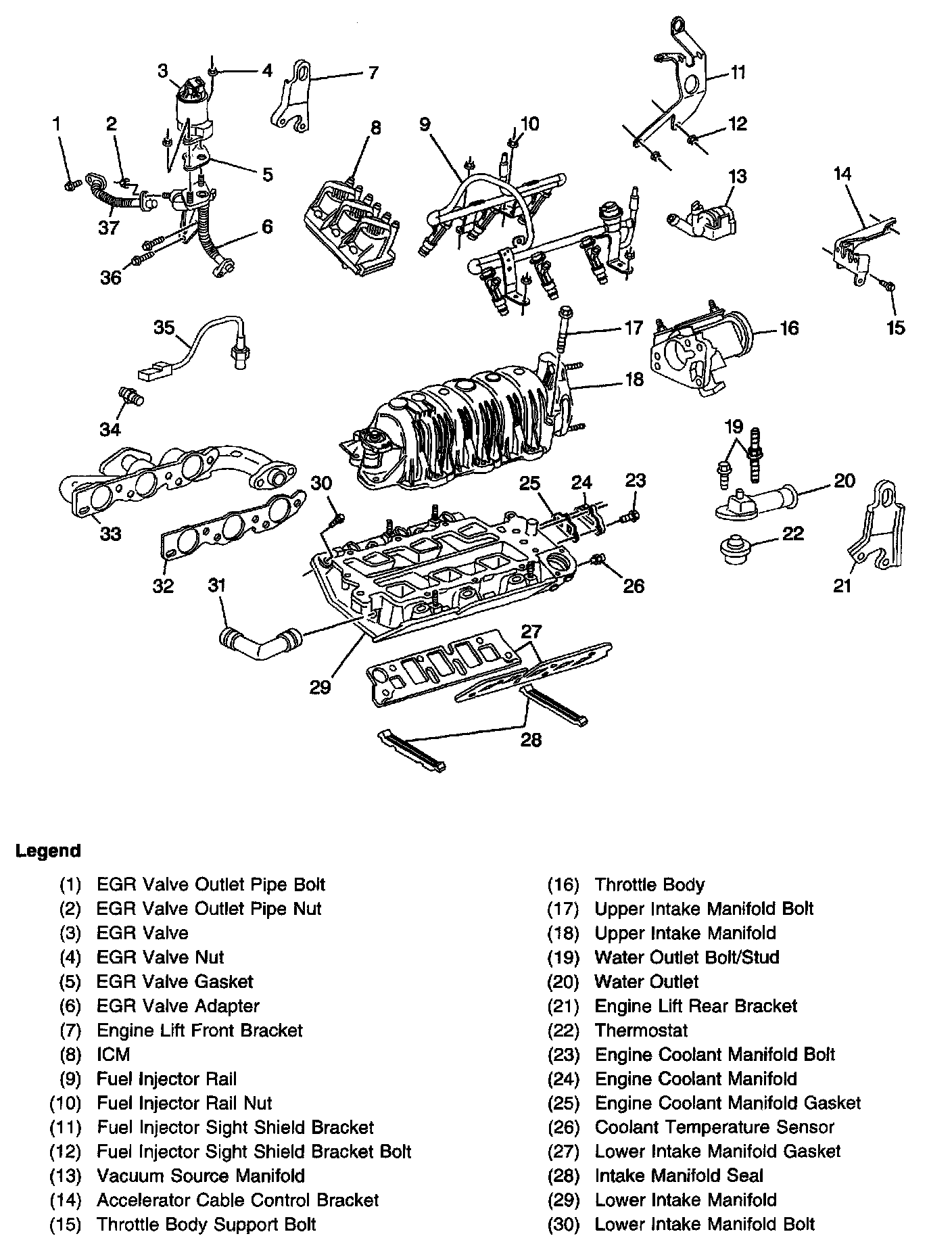

Intake Manifold and Components (Part 1 Of 2):



Intake Manifold and Components (Part 2 Of 2):
