Crankshaft and Components

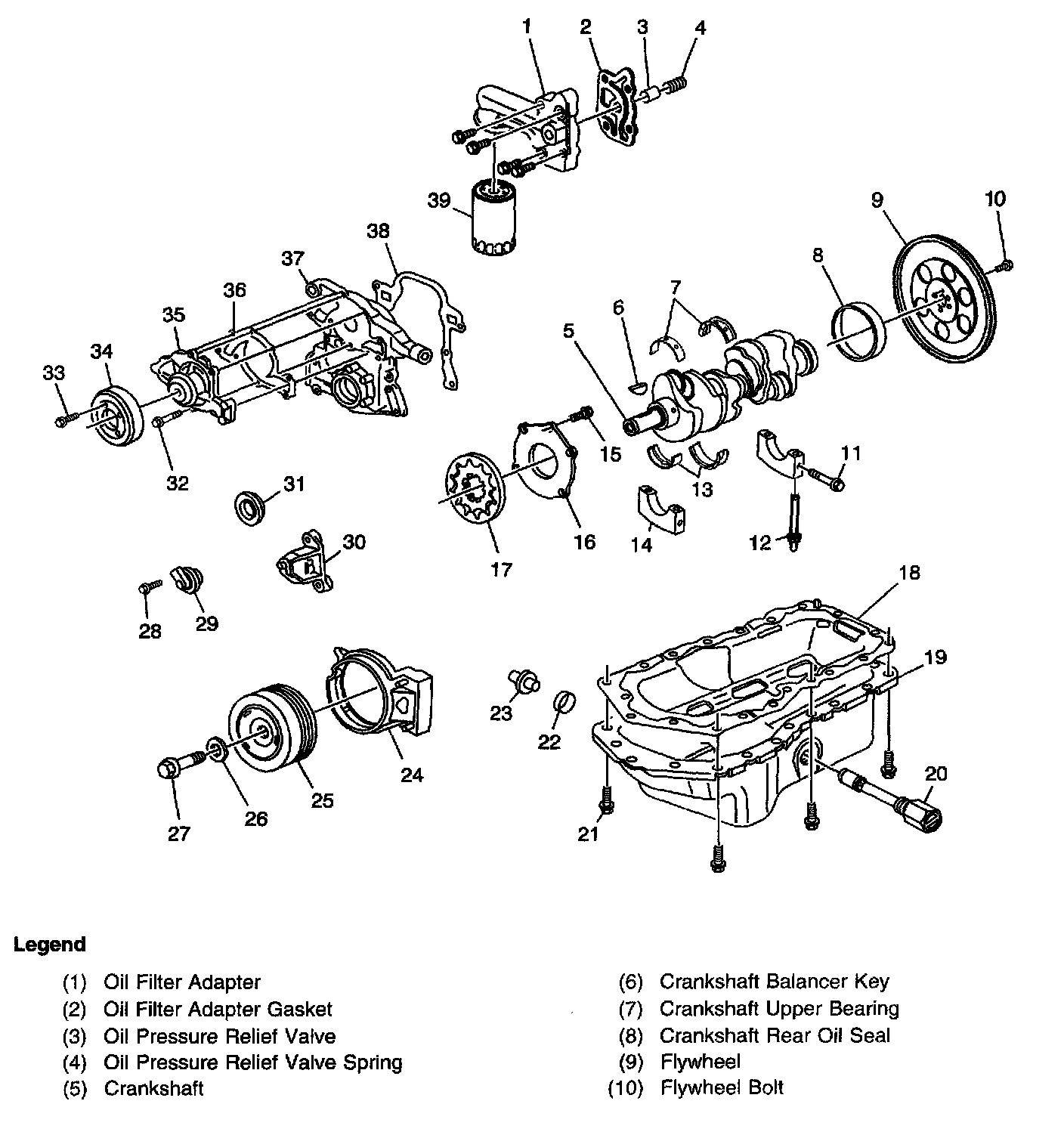

Crankshaft And Components (Part 1 Of 2):

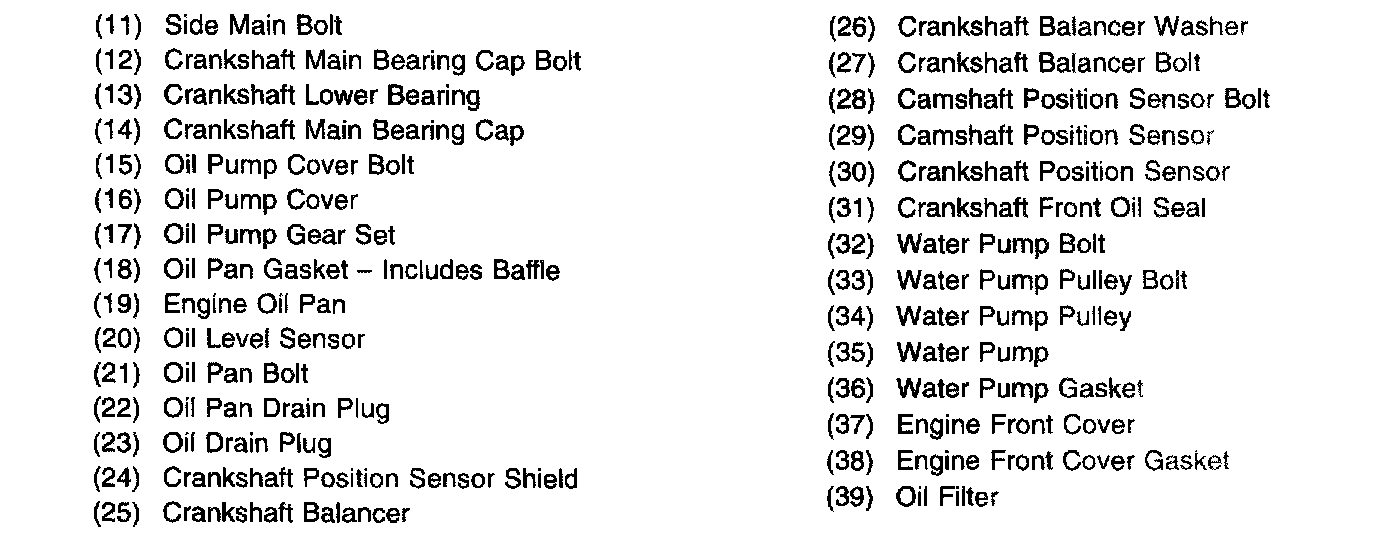

Crankshaft And Components (Part 2 Of 2):
