Power Window Switch

Window Switch-Driver, C1:




Window Switch-Driver, C2 Part 1:




Window Switch-Driver, C2 Part 2:

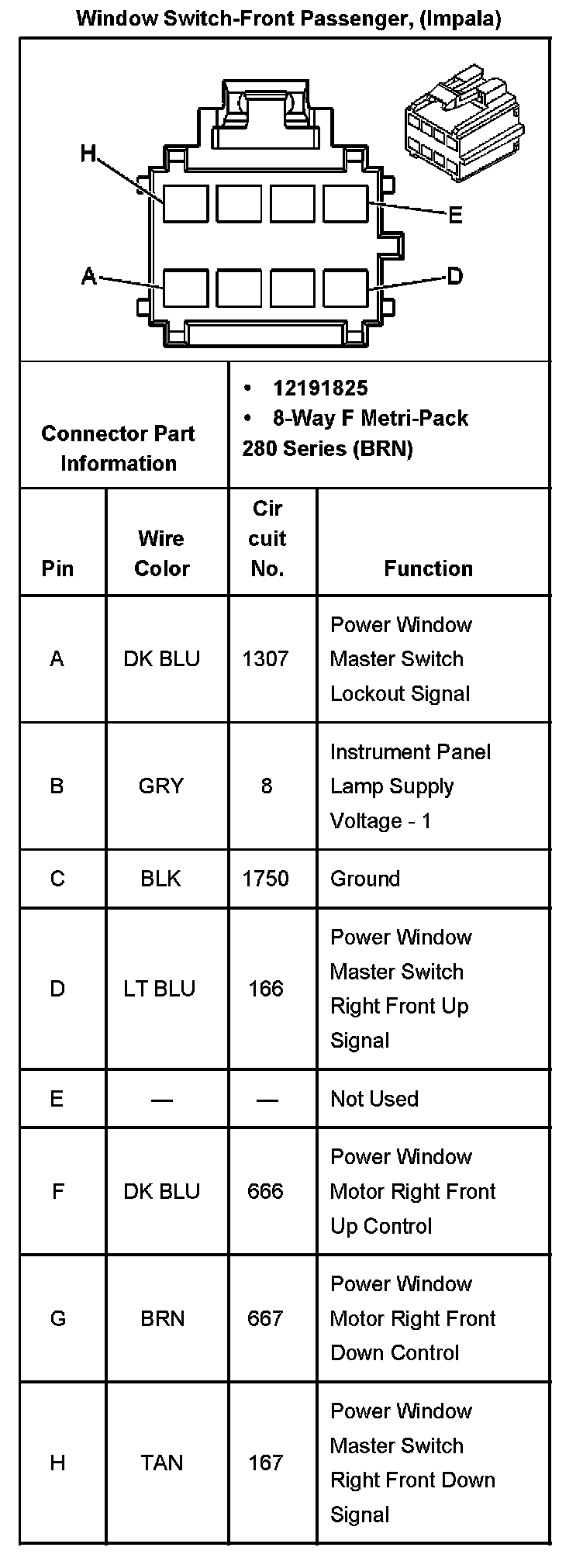

Window Switch-Front Passenger:

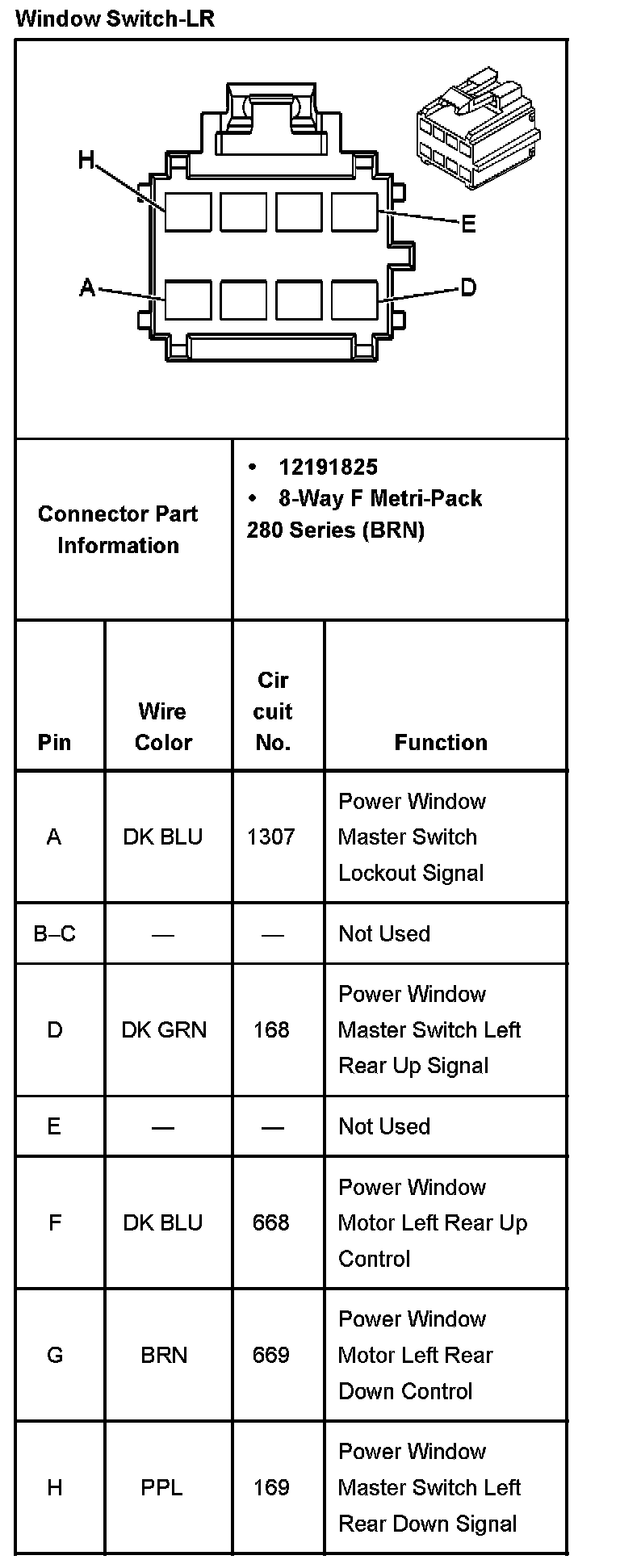

Window Switch-LR:




Window Switch-RR:
