Chevrolet
>>
2003
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
Power Window Motor

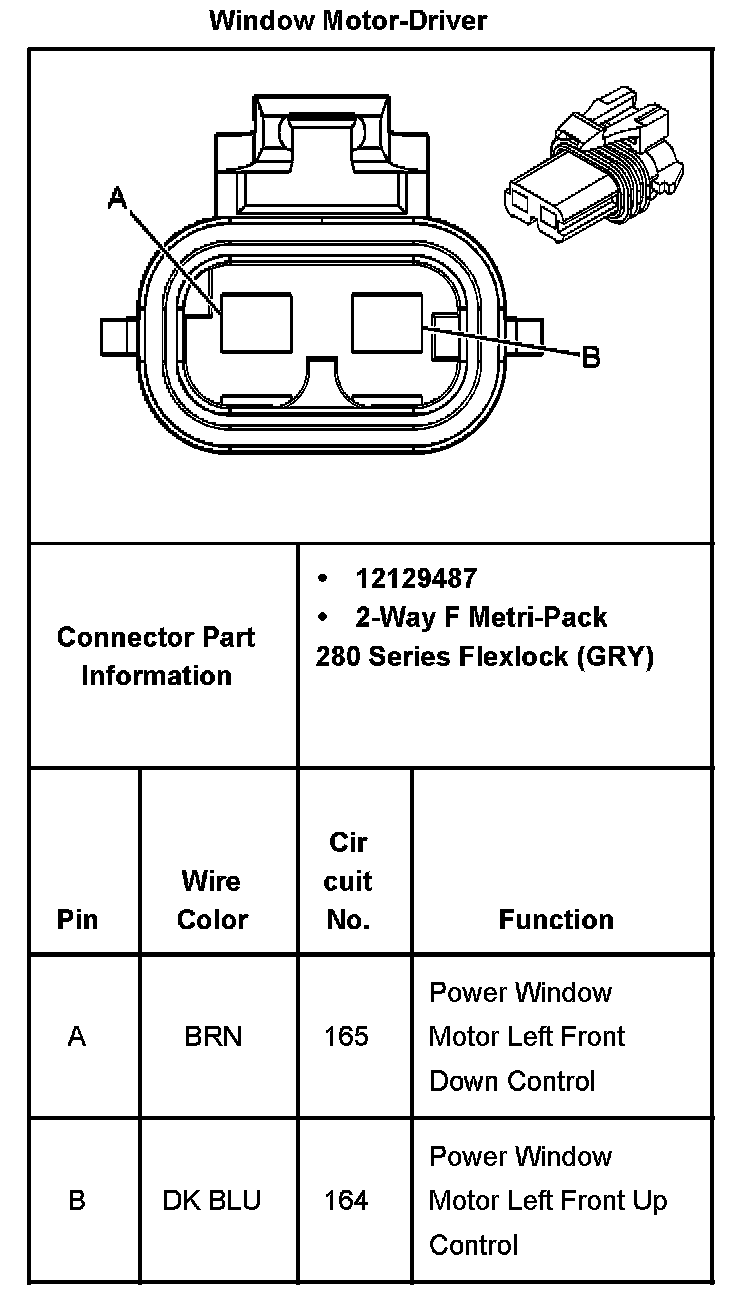

Window Motor-Driver:

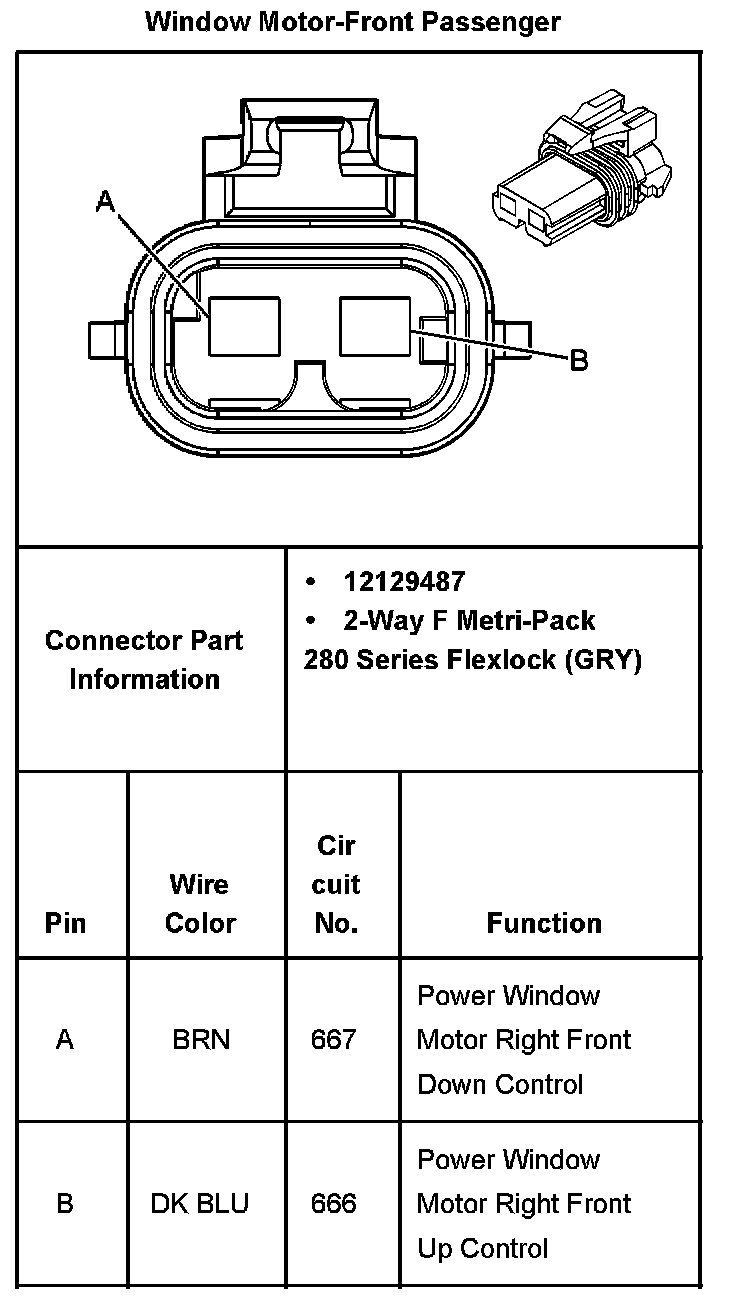

Window Motor-Front Passenger:

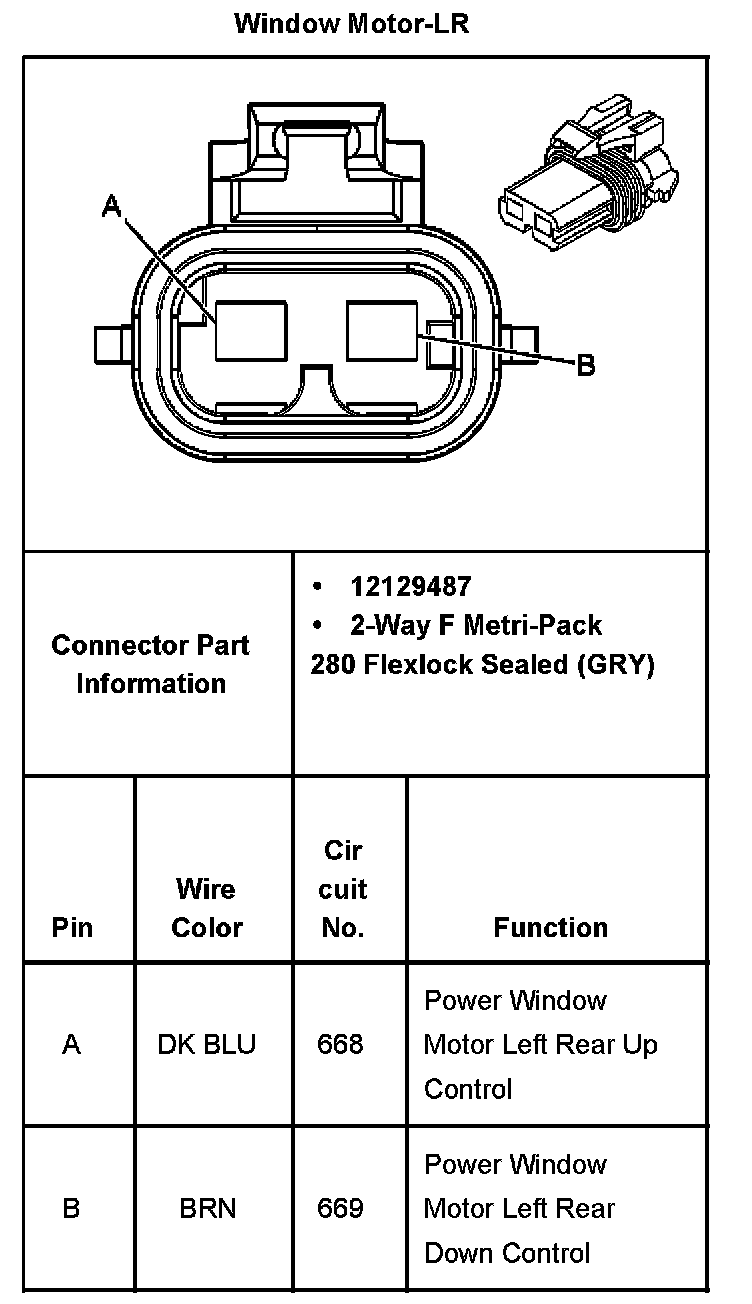

Window Motor-LR:

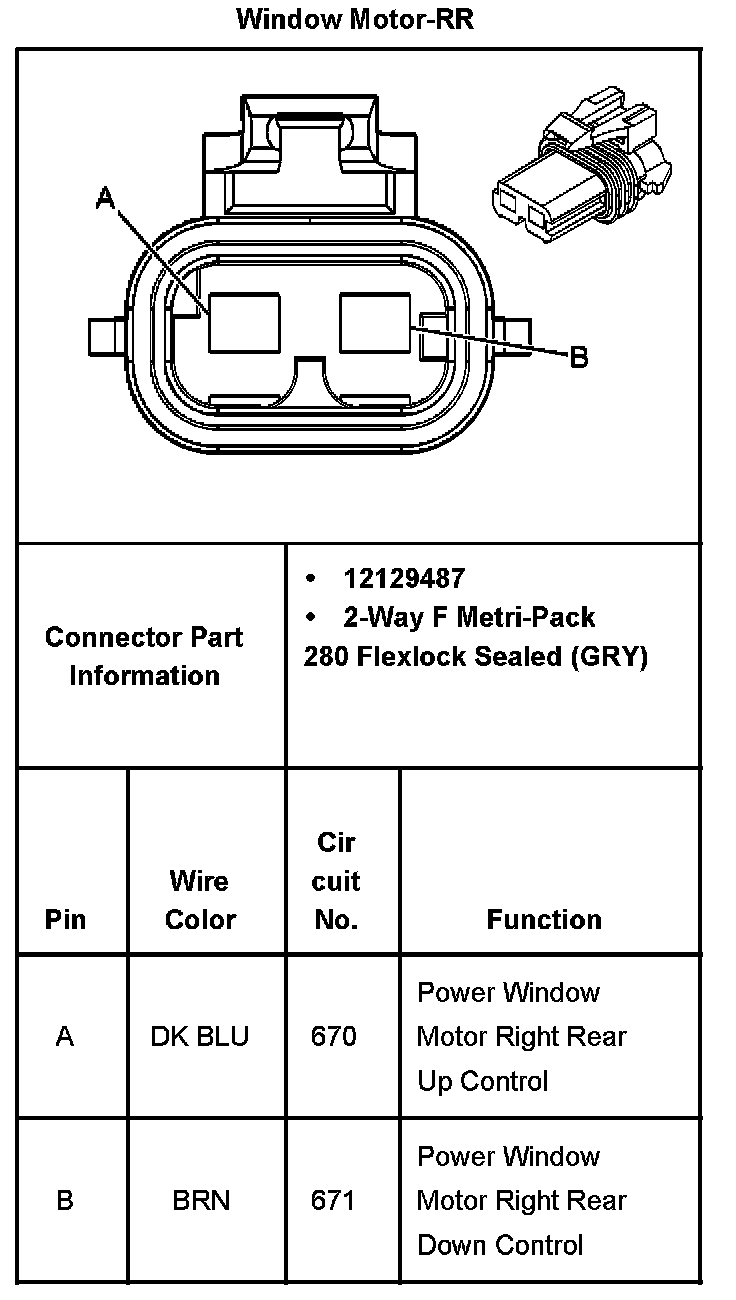

Window Motor-RR:
