Air Bag Control Module: Locations

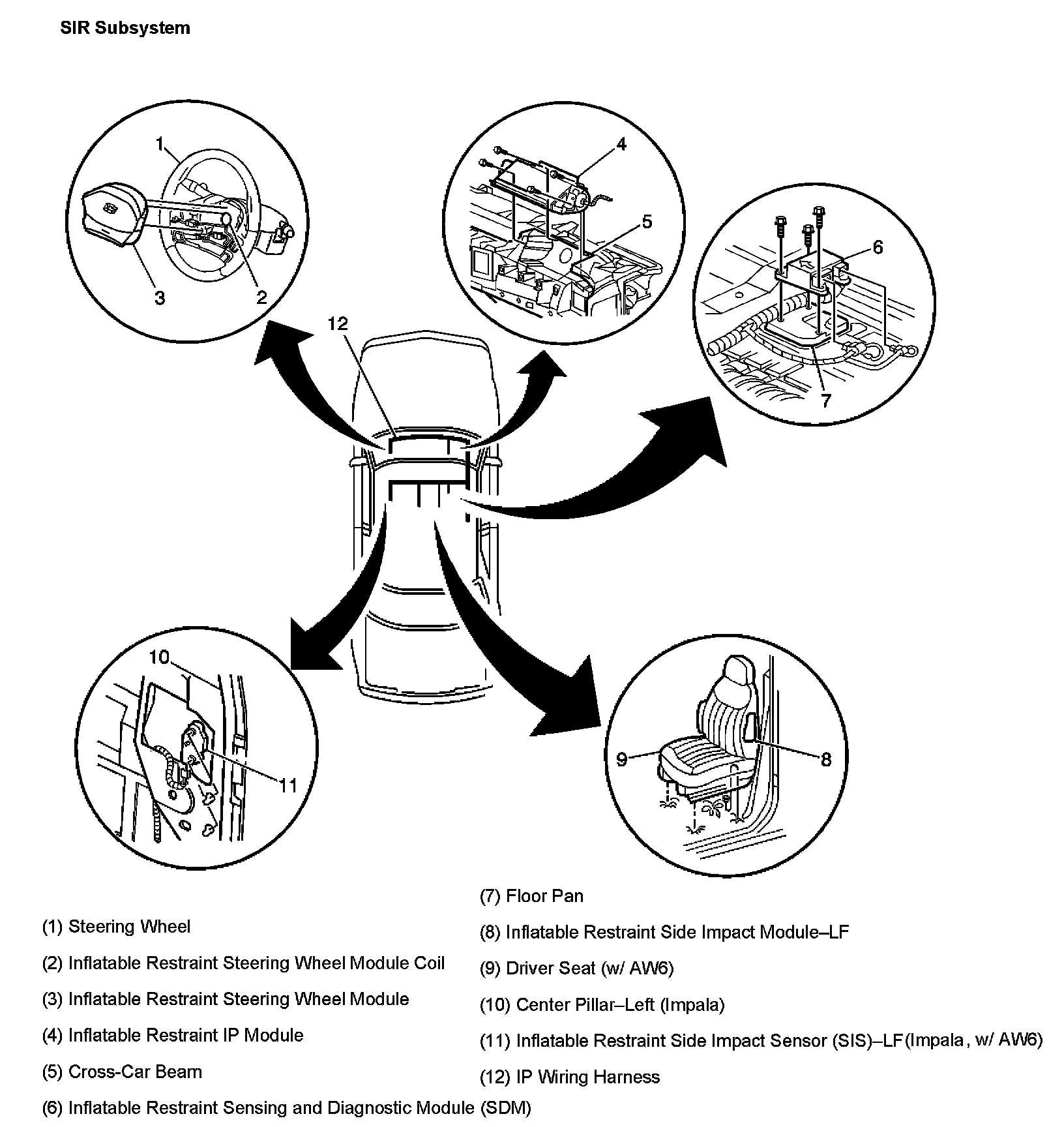

SIR Subsystem:

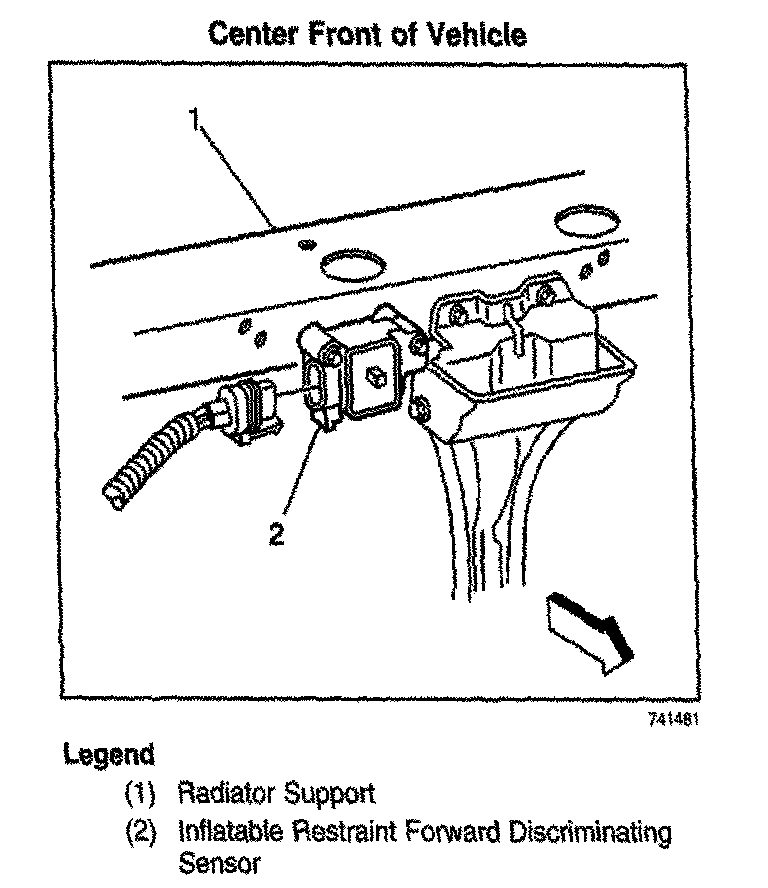

Locations View:

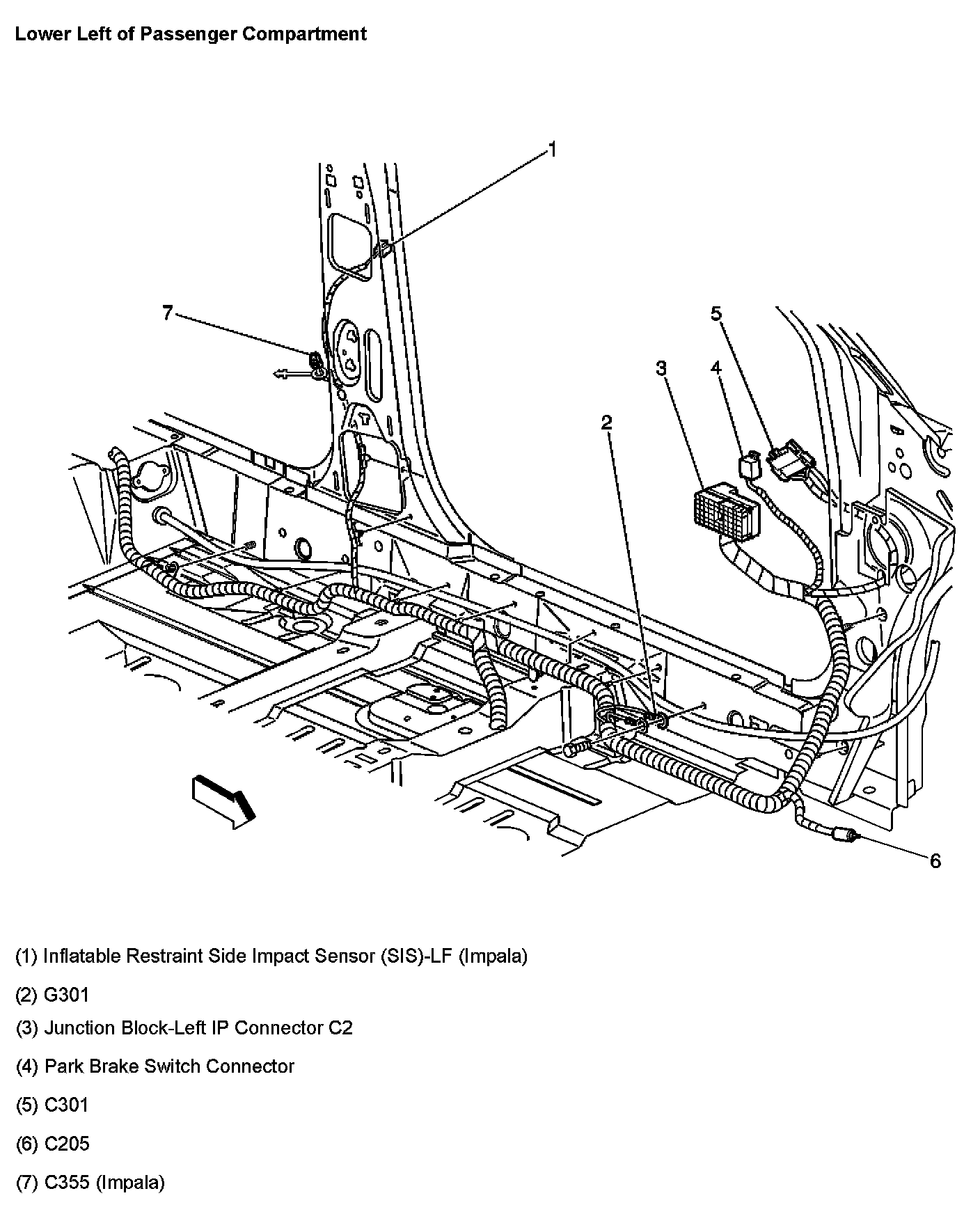

Lower Left Of Passenger Compartment:

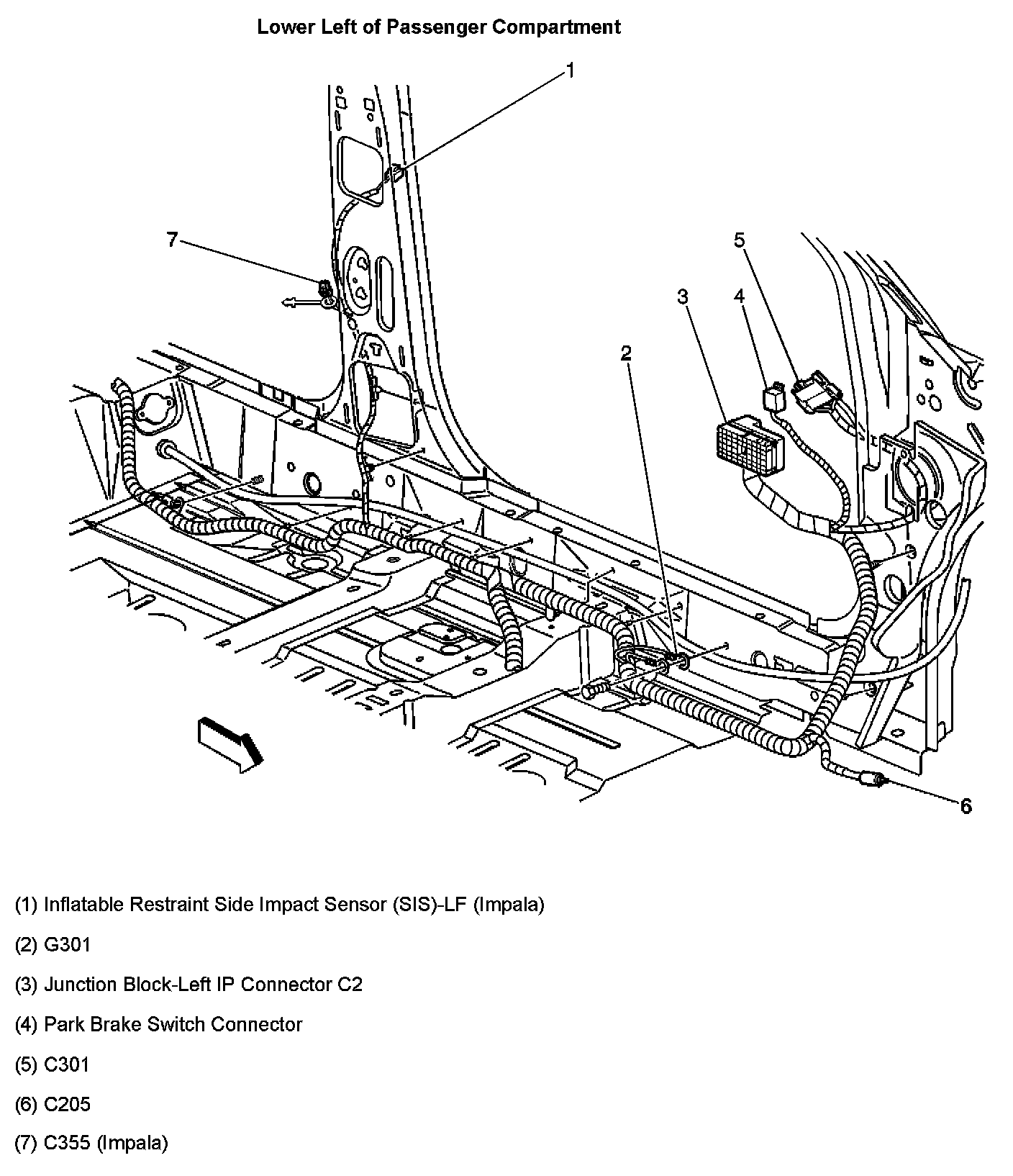

Lower Left Of Passenger Compartment:
