Home >> Chevrolet >> 2003 >> Impala V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> Engine Views >> Lower Left Front of Engine

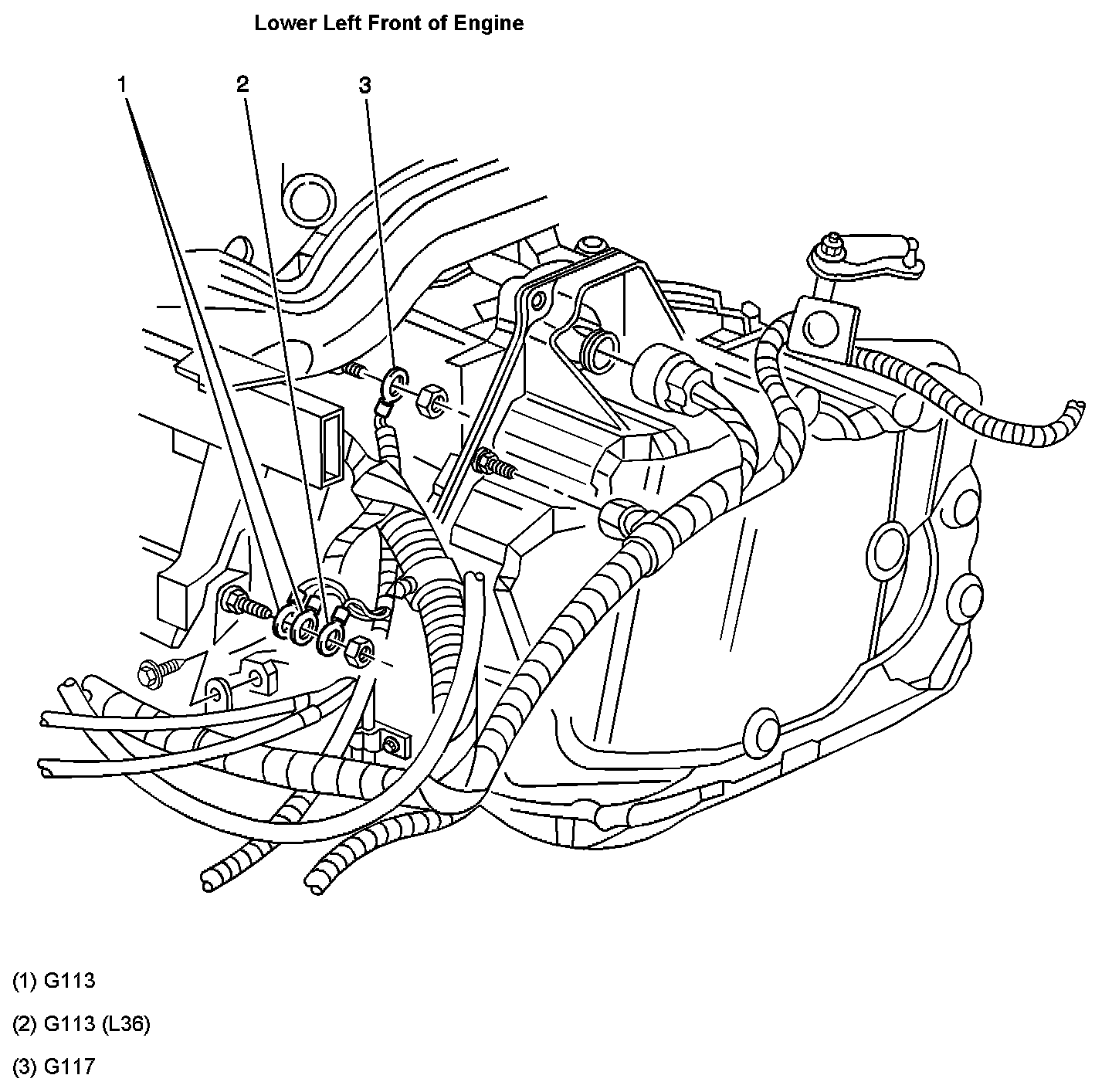

Lower Left Front of Engine

Lower Left Front Of Engine:
