Connector Identification
Connector Identification

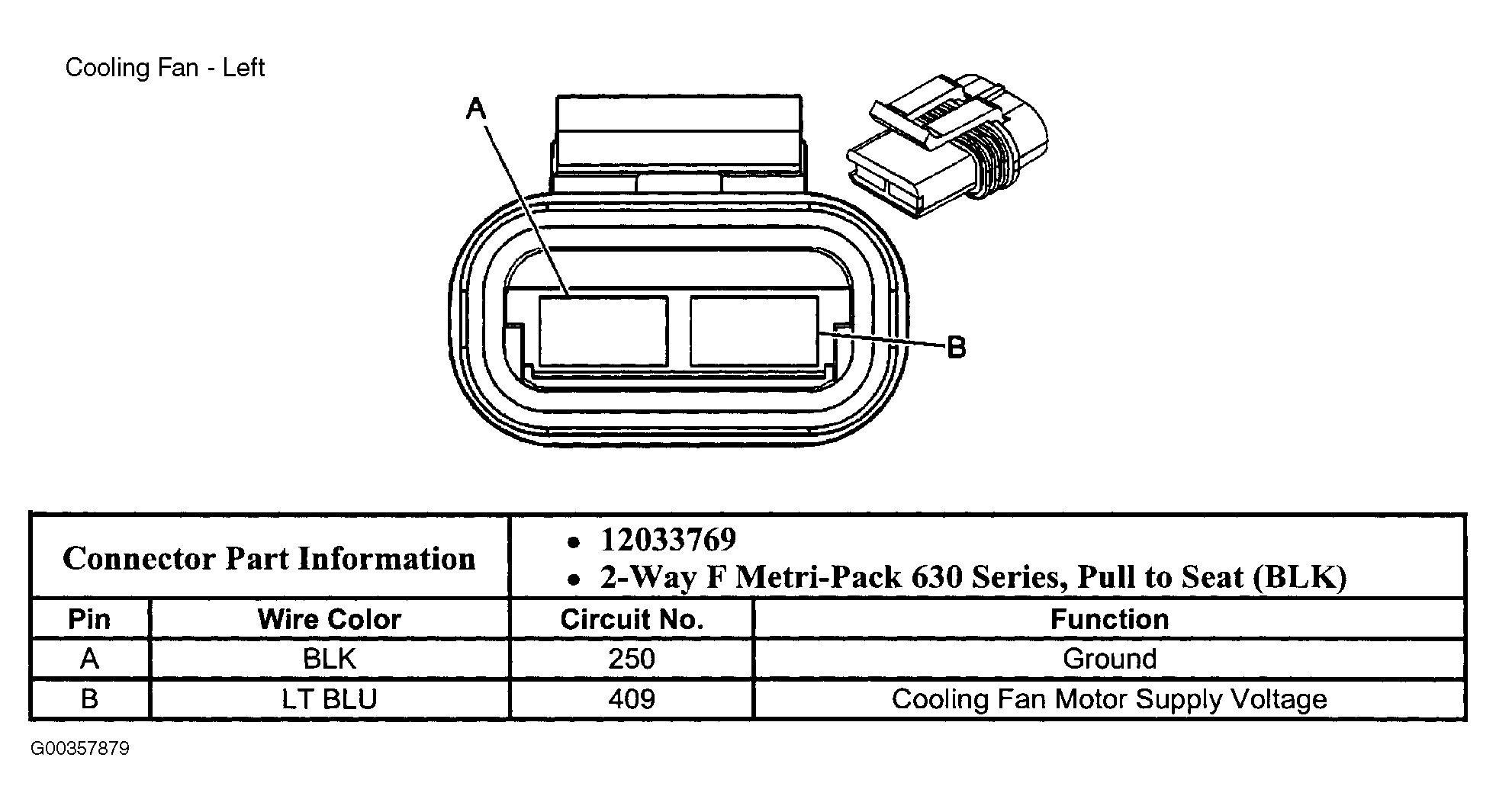

Fig 1: Identifying Left Cooling Fan Connector
Courtesy of GENERAL MOTORS CORP.

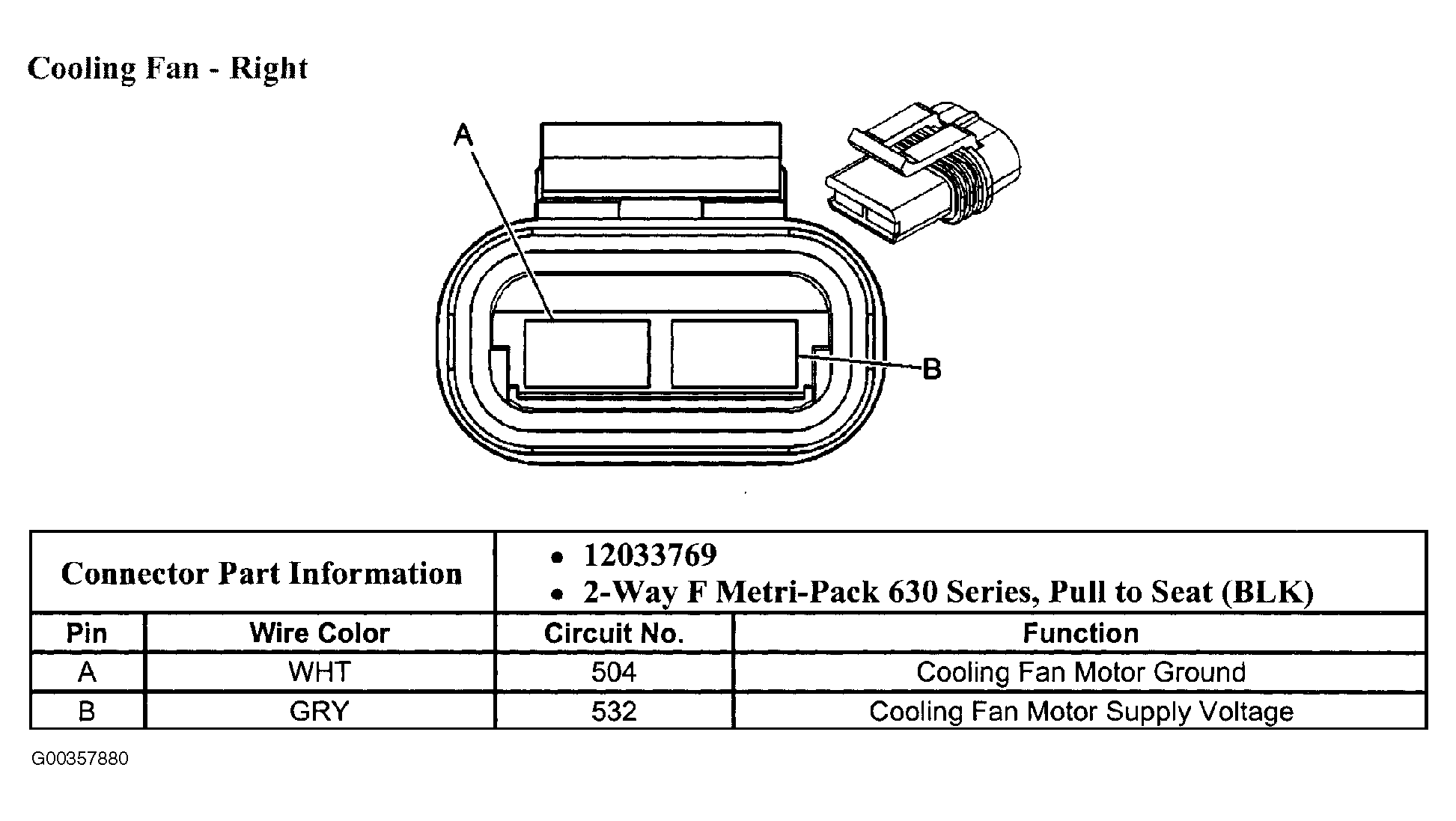

Fig 2: Identifying Right Cooling Fan Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
