Home >> Chevrolet >> 2003 >> Express 1/2 Ton Van V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower Front of Engine

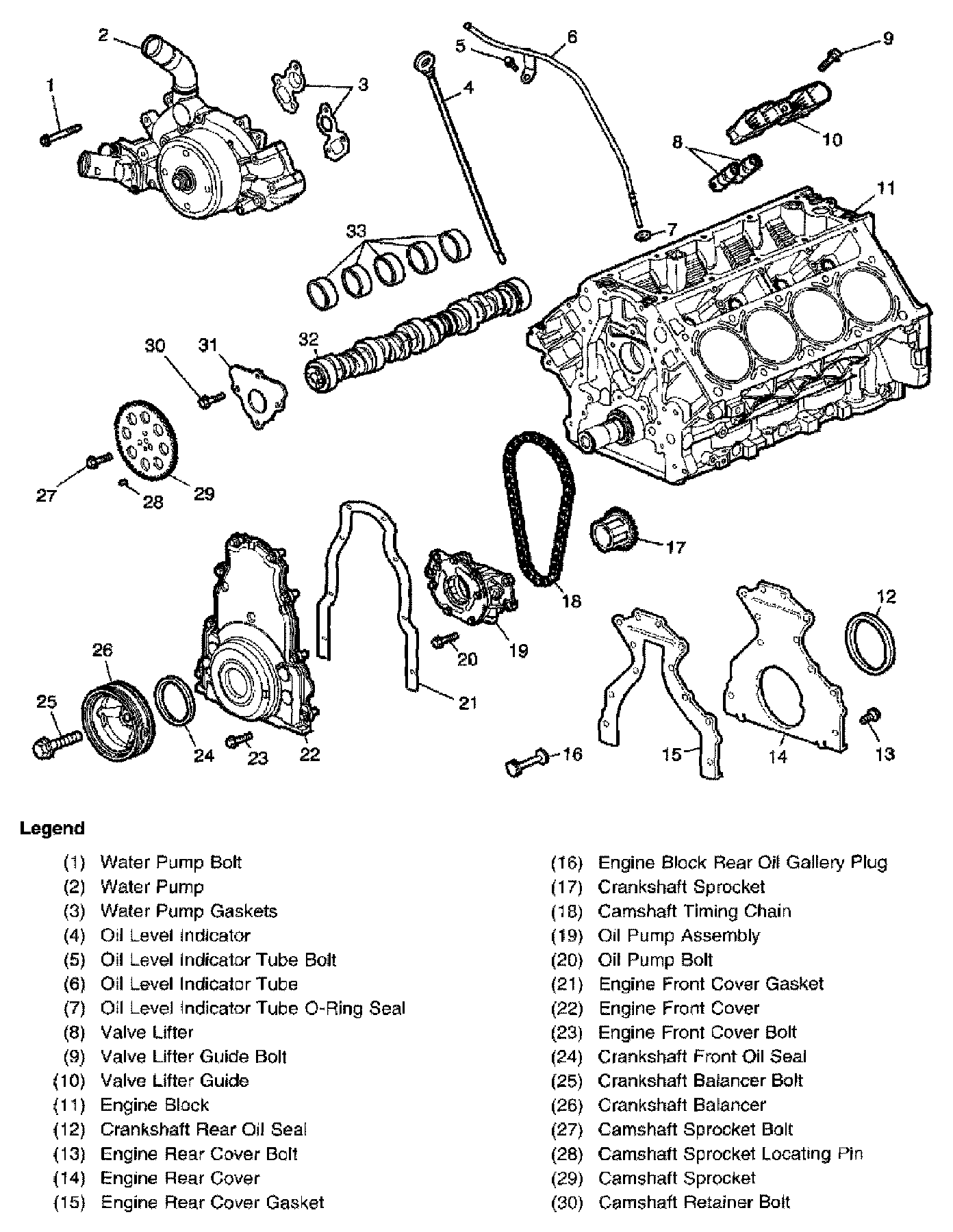

Lower Front of Engine

Part 1 Of 2:



Part 2 Of 2:
