Home >> Chevrolet >> 2003 >> Express 1/2 Ton Van V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold/Upper Engine

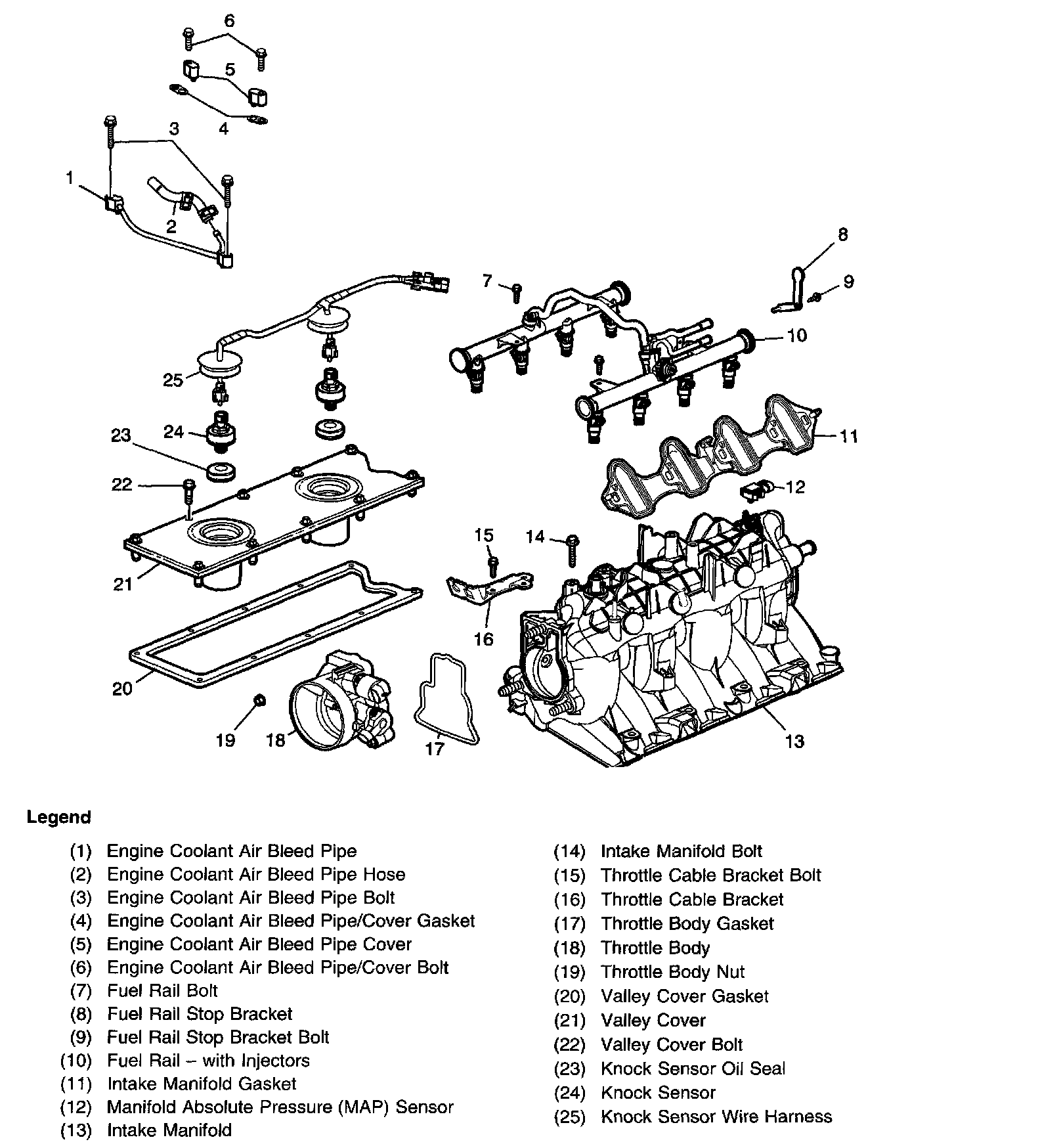

Intake Manifold/Upper Engine
