Express 1/2 Ton Van V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Differential Assembly
>>
Locking Differential Disassembled Views
Locking Differential Disassembled Views
Locking Differential Disassembled Views

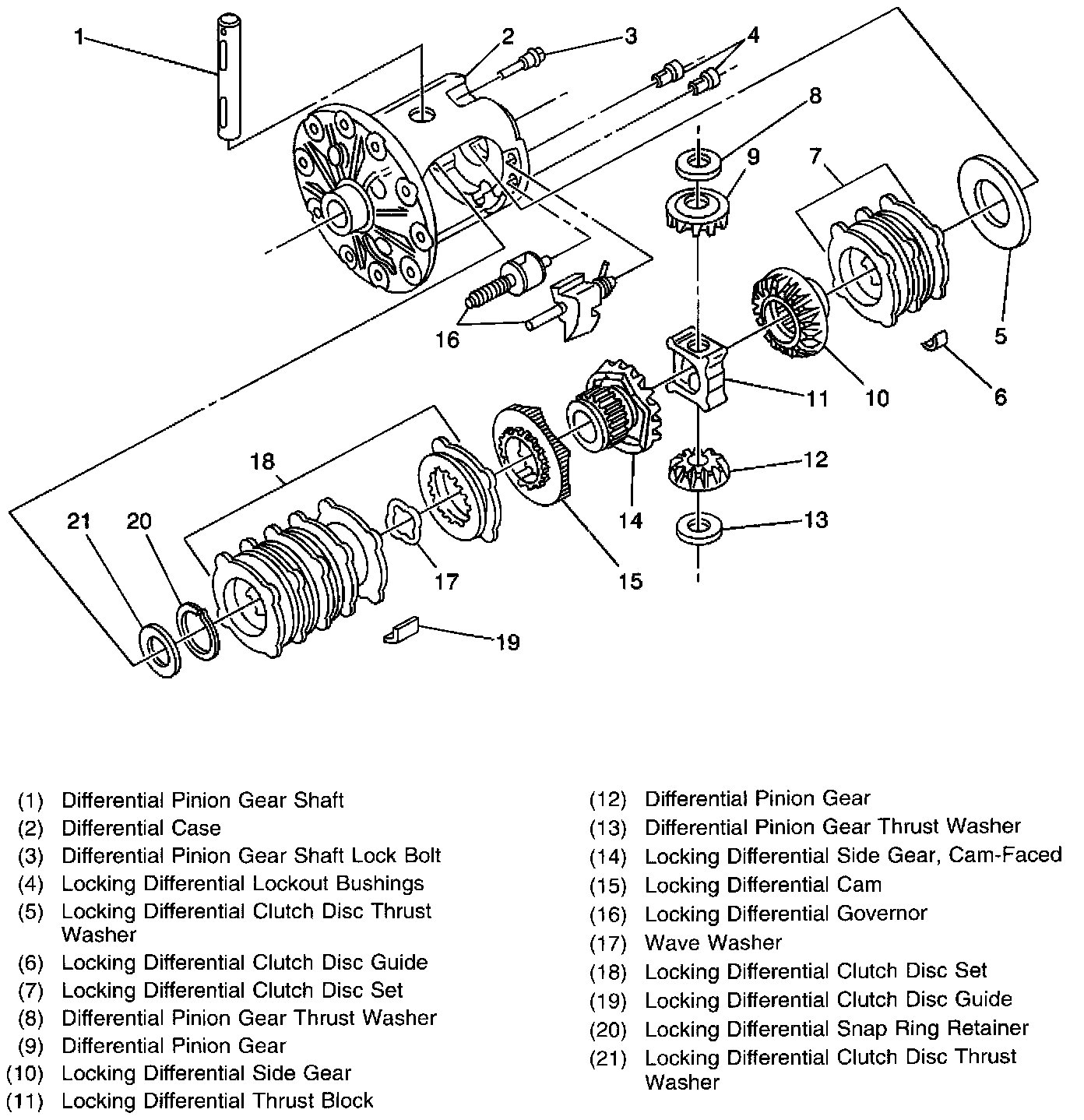

8.6 Locking Differential

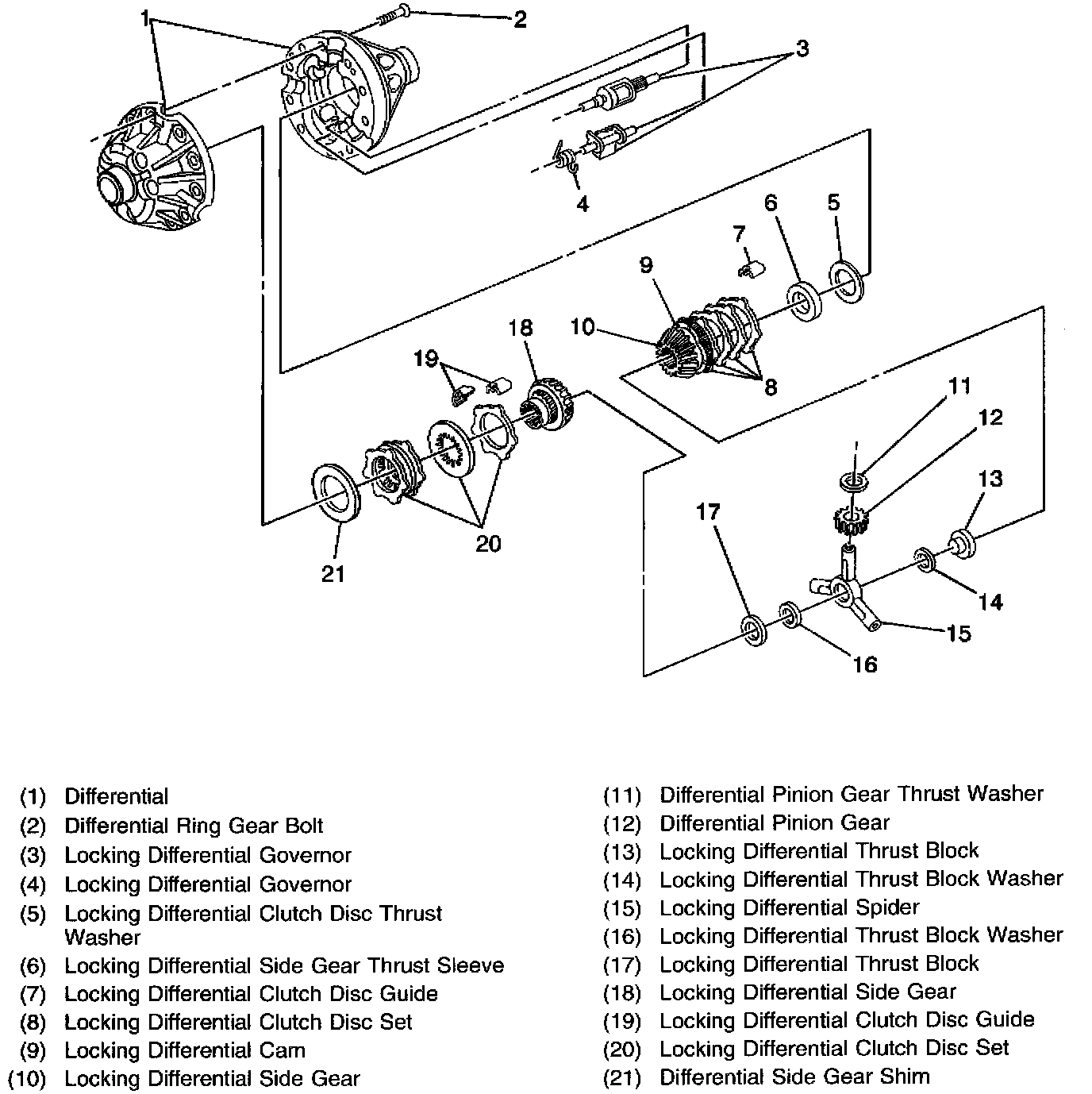

9.5 Locking Differential

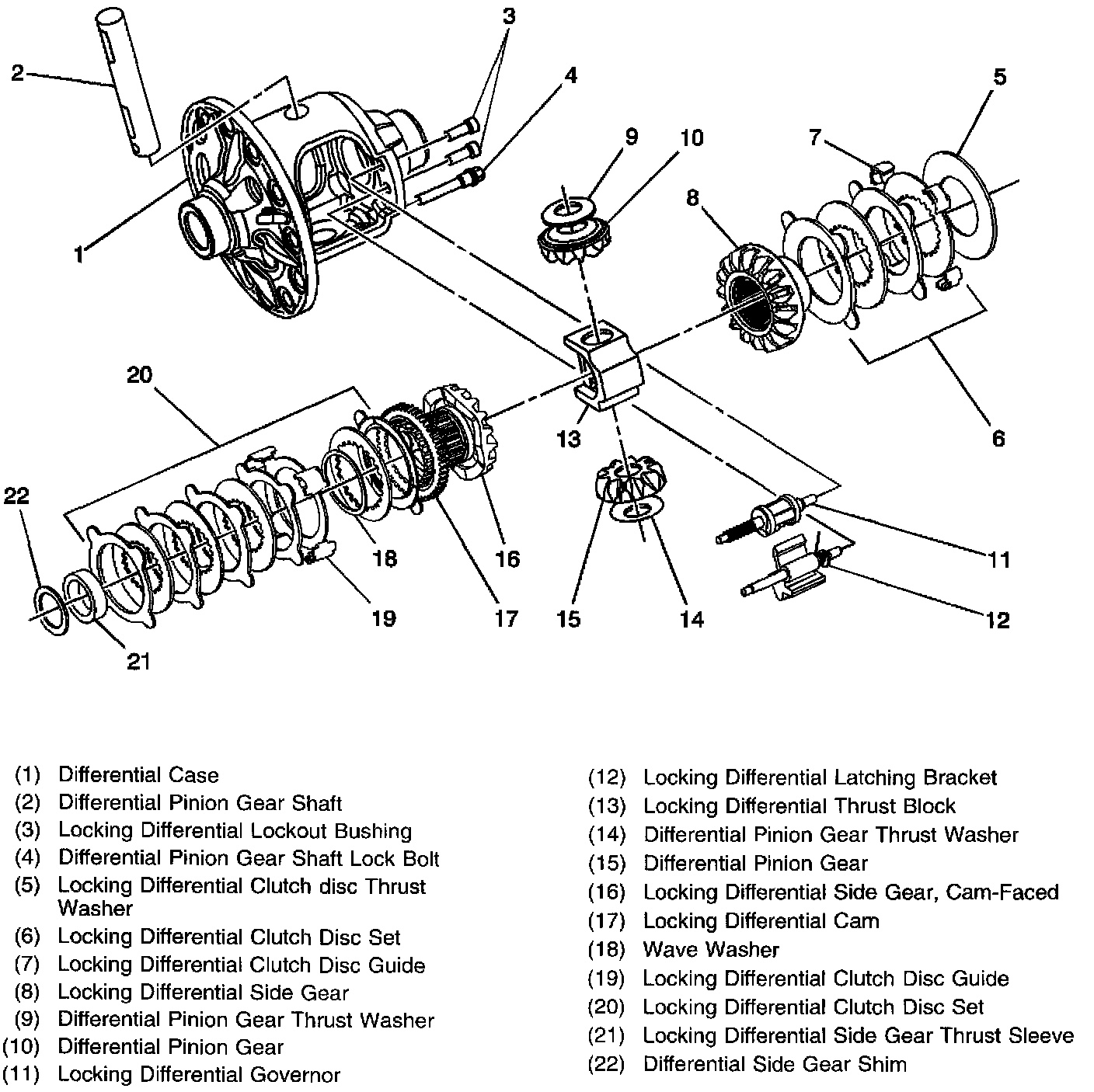

10.5 Locking Differential
