Control Module HVAC
Control Module HVAC

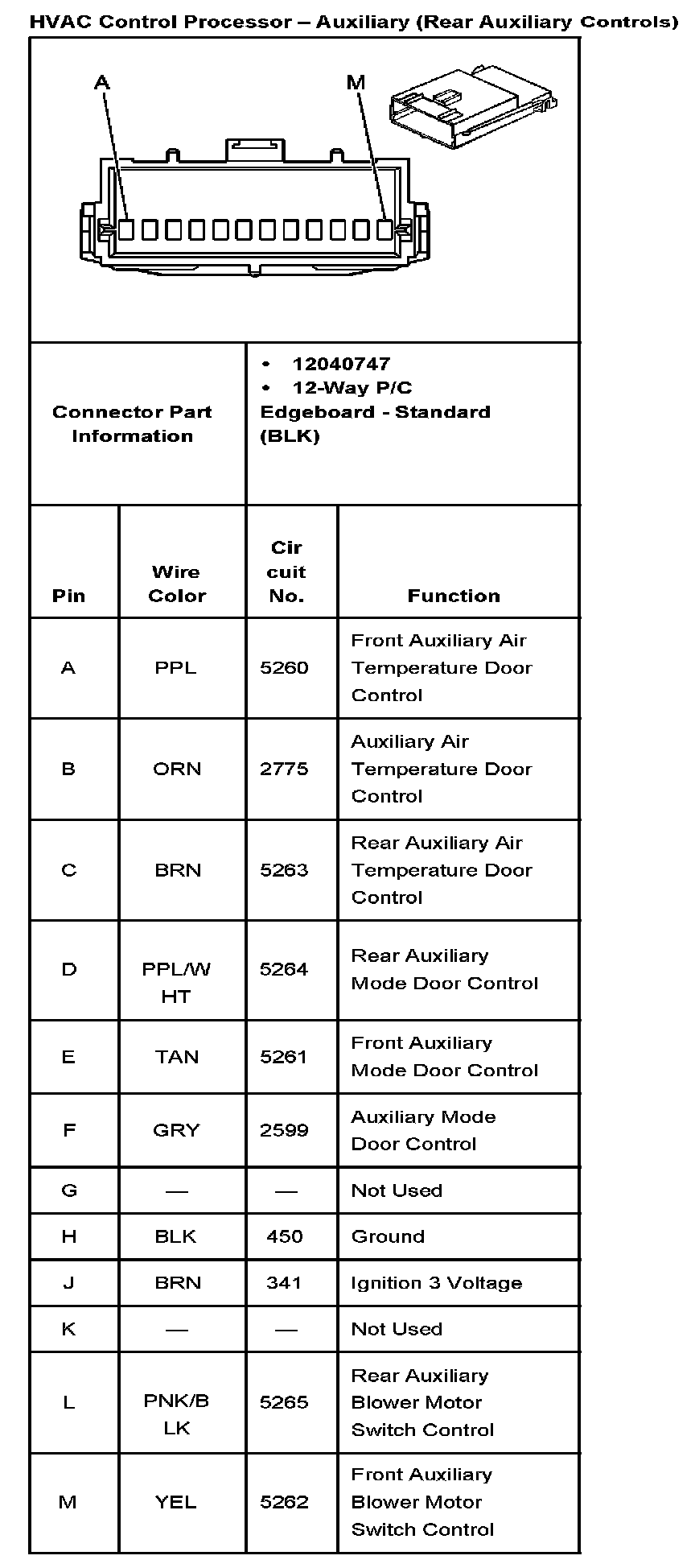

HVAC Control Processor - Auxiliary (Rear Auxiliary Controls):
