Home >> Chevrolet >> 2003 >> Express 1/2 Ton Van V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Sensor/Switch

Seat Sensor/Switch

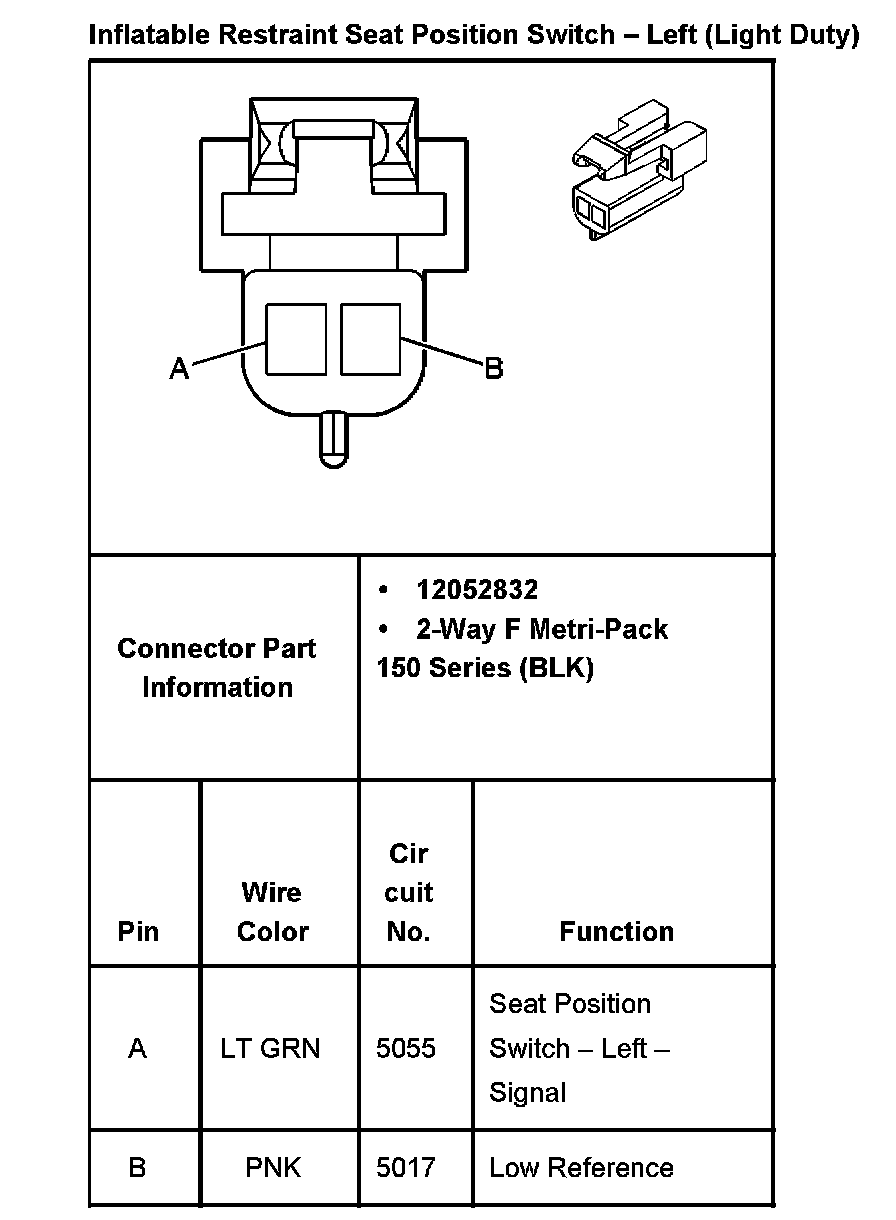

Inflatable Restraint Seat Position Switch - Left (Light Duty):

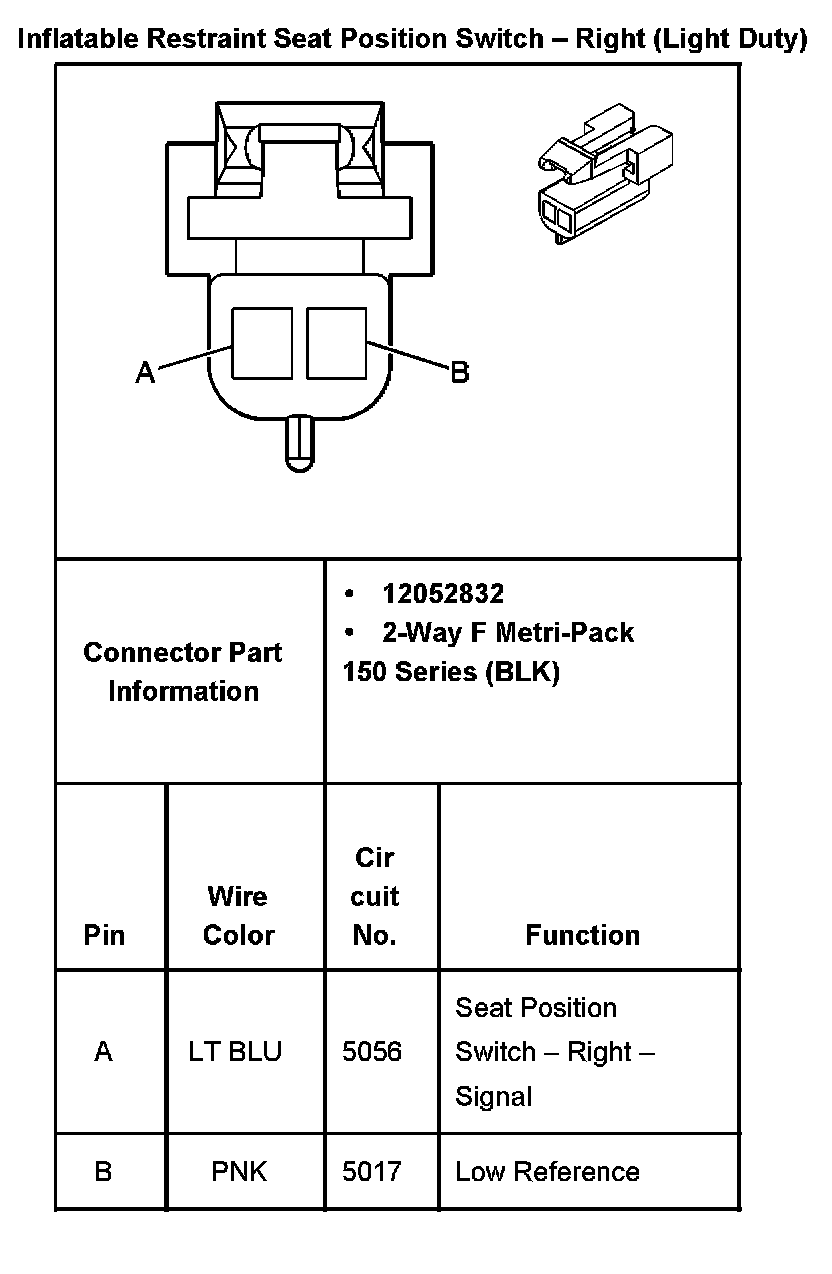

Inflatable Restraint Seat Position Switch - Right (Light Duty):
