Home >> Chevrolet >> 2003 >> Express 1/2 Ton Van AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Case Components

Case Components

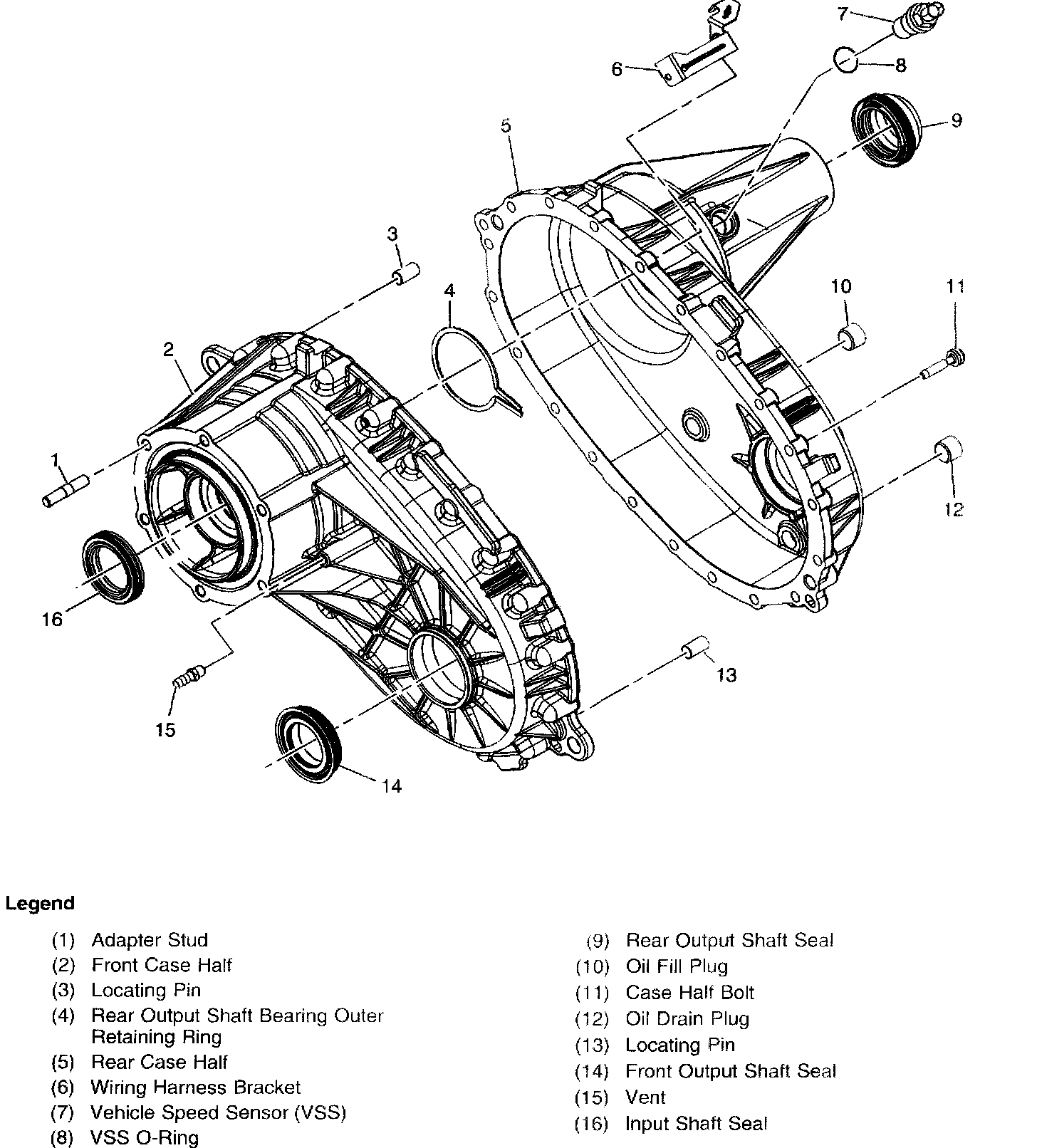

Transfer Case Disassembled View





Case Components
