PCM Connector C2
PCM Connector C2

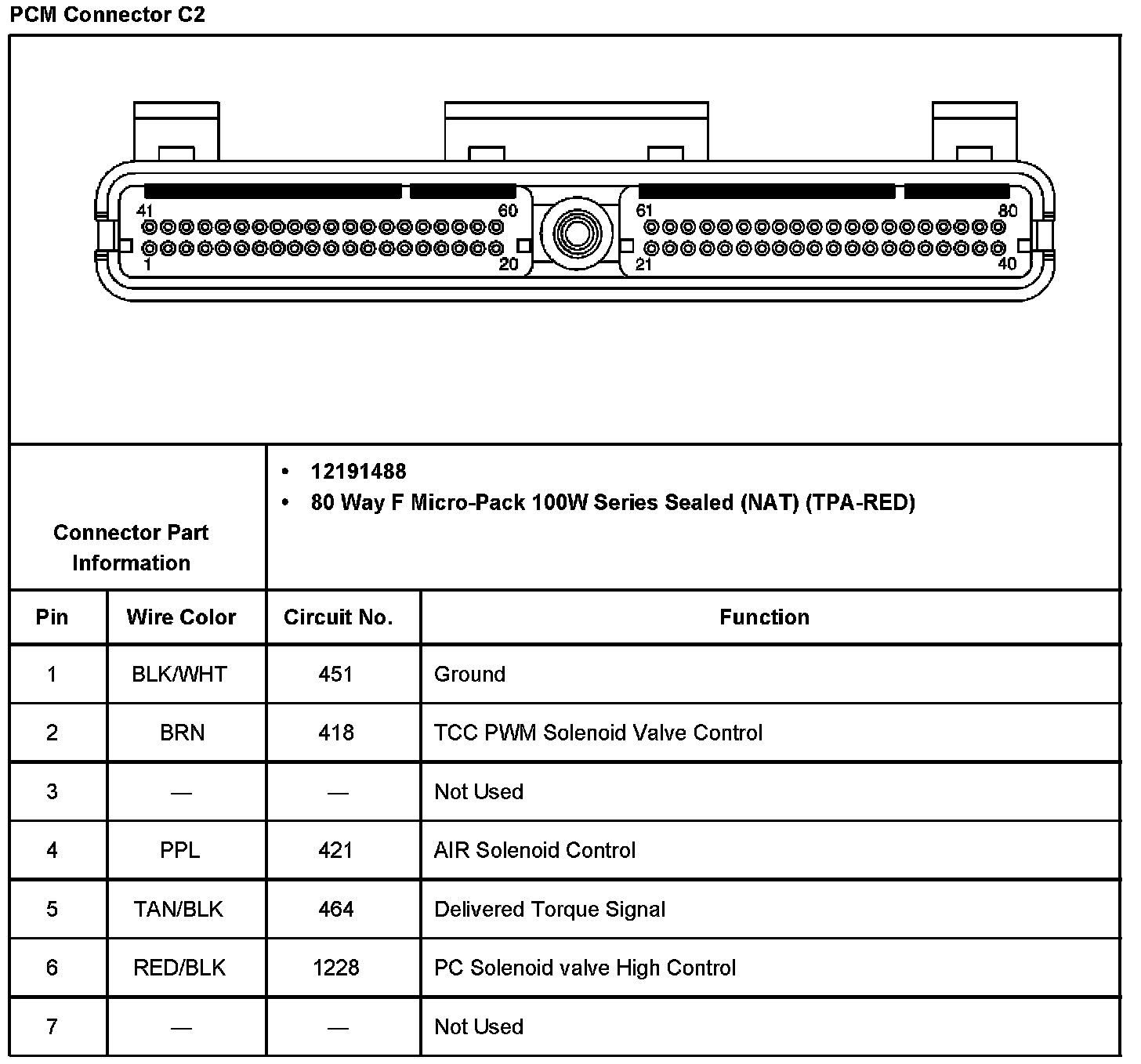

PCM Connector C2 Part 1:

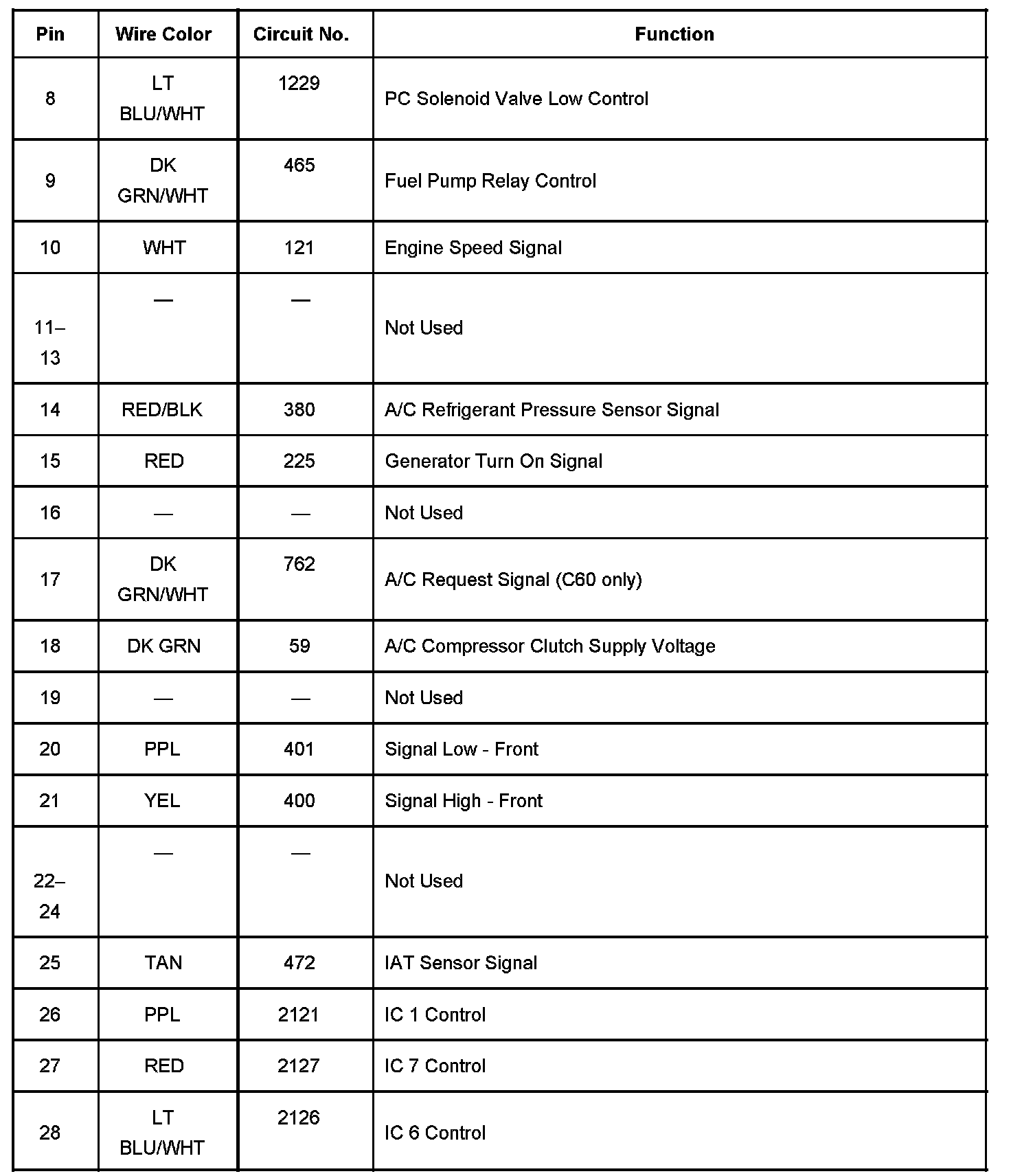

PCM Connector C2 Part 2:

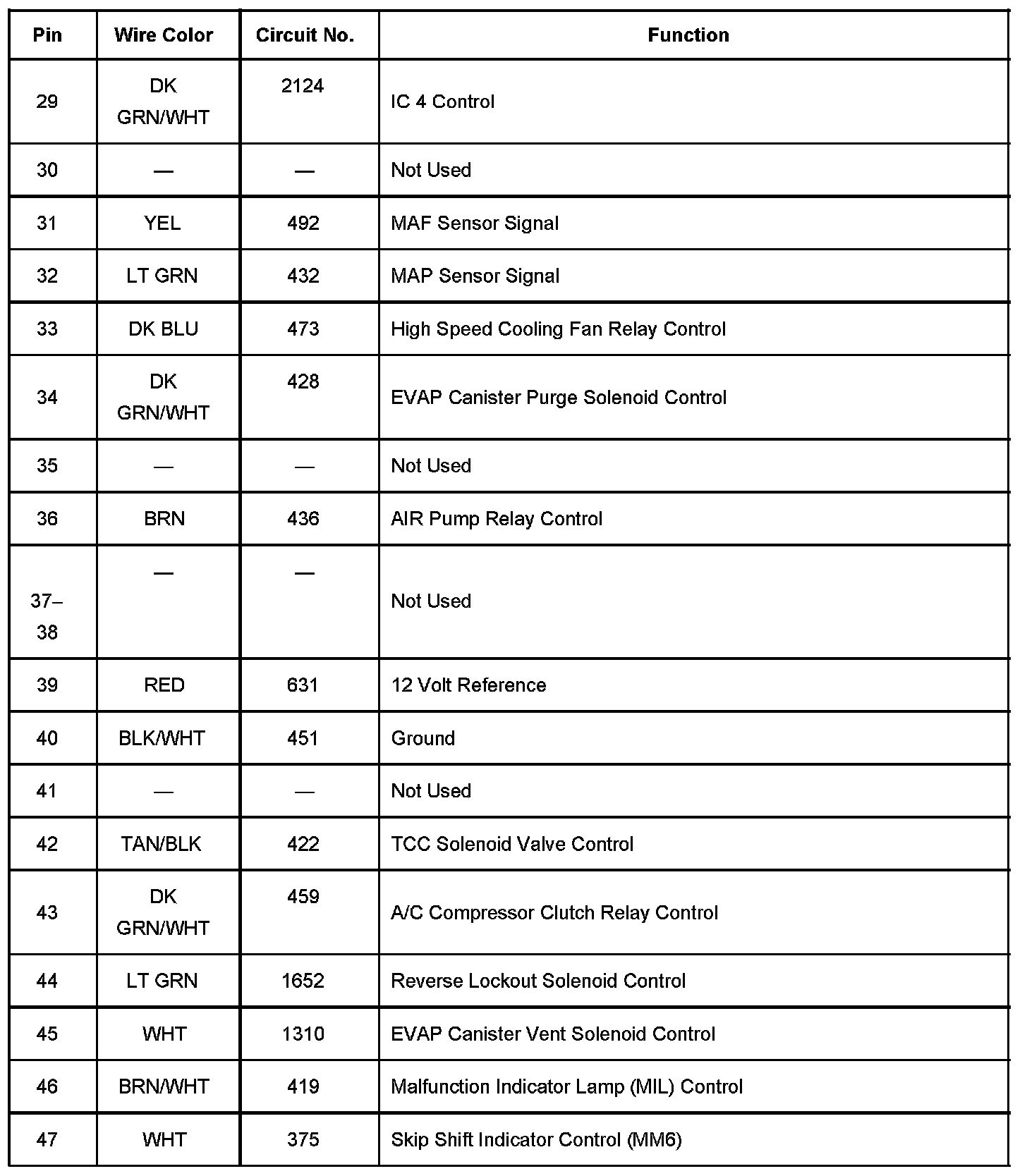

PCM Connector C2 Part 3:

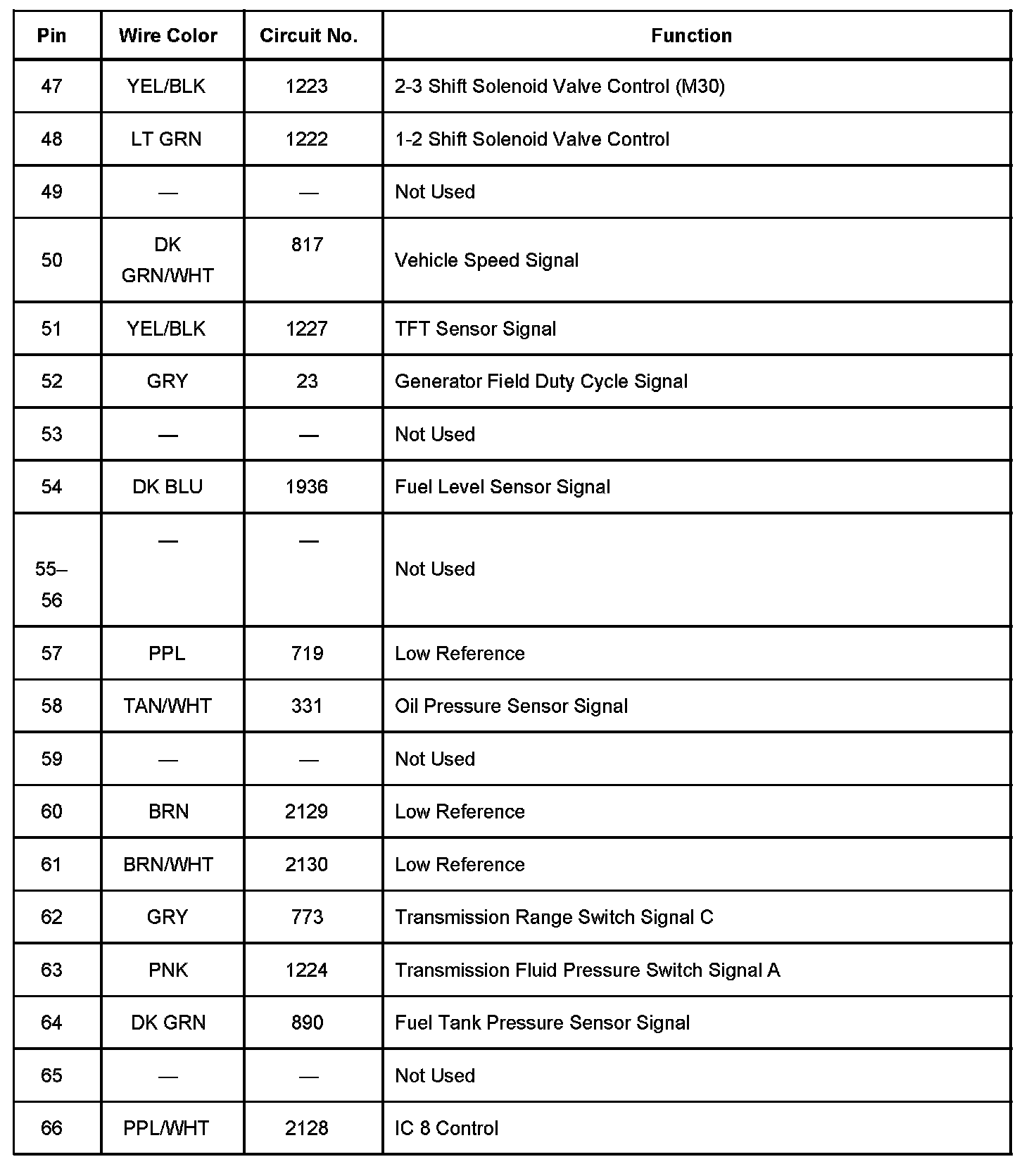

PCM Connector C2 Part 4:
PCM Connector C2 Part 5:
