Home >> Chevrolet >> 2003 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Memory Positioning Module >> Locations

Memory Positioning Module: Locations

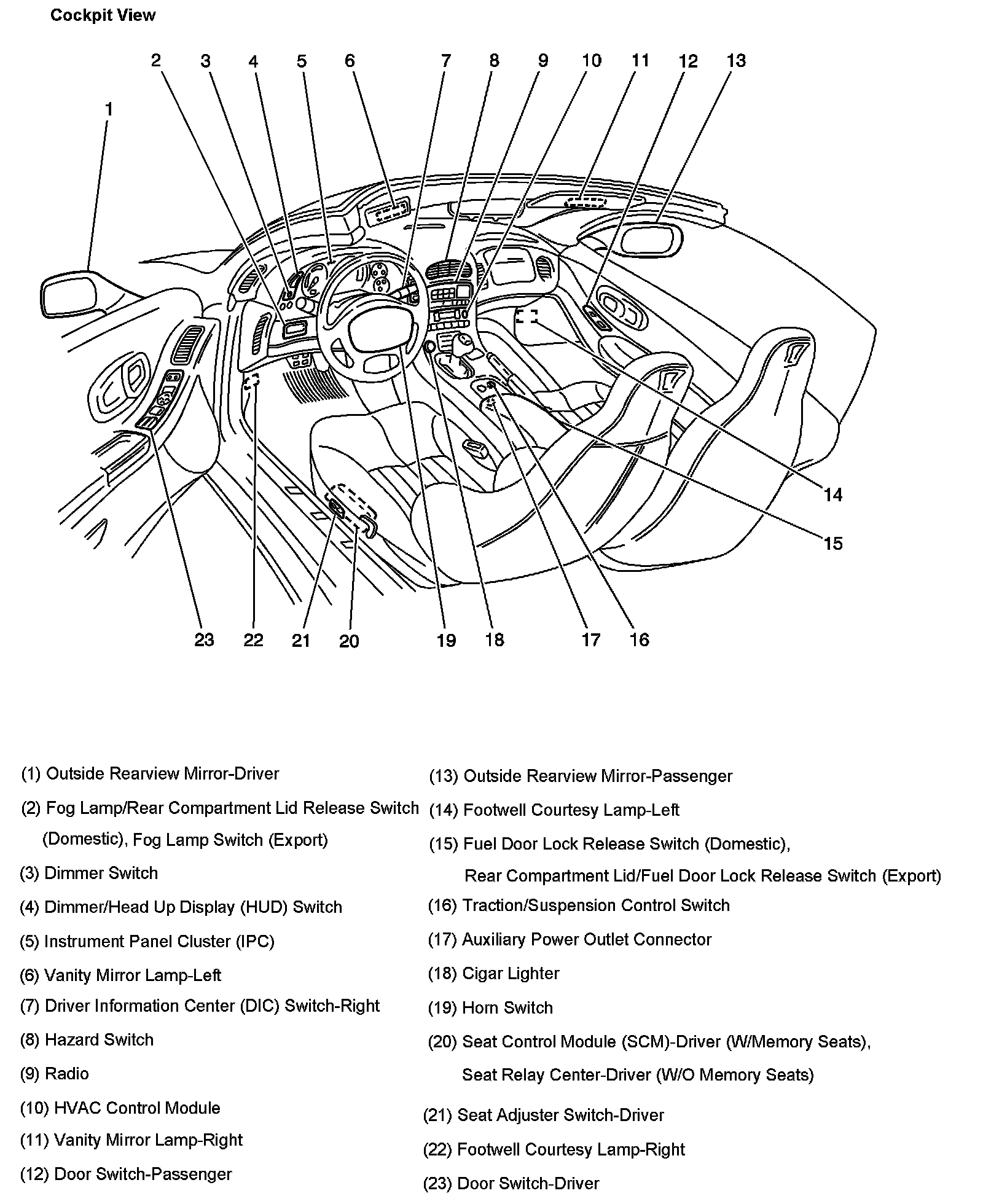

Cockpit View (w/Manual - HVAC System):

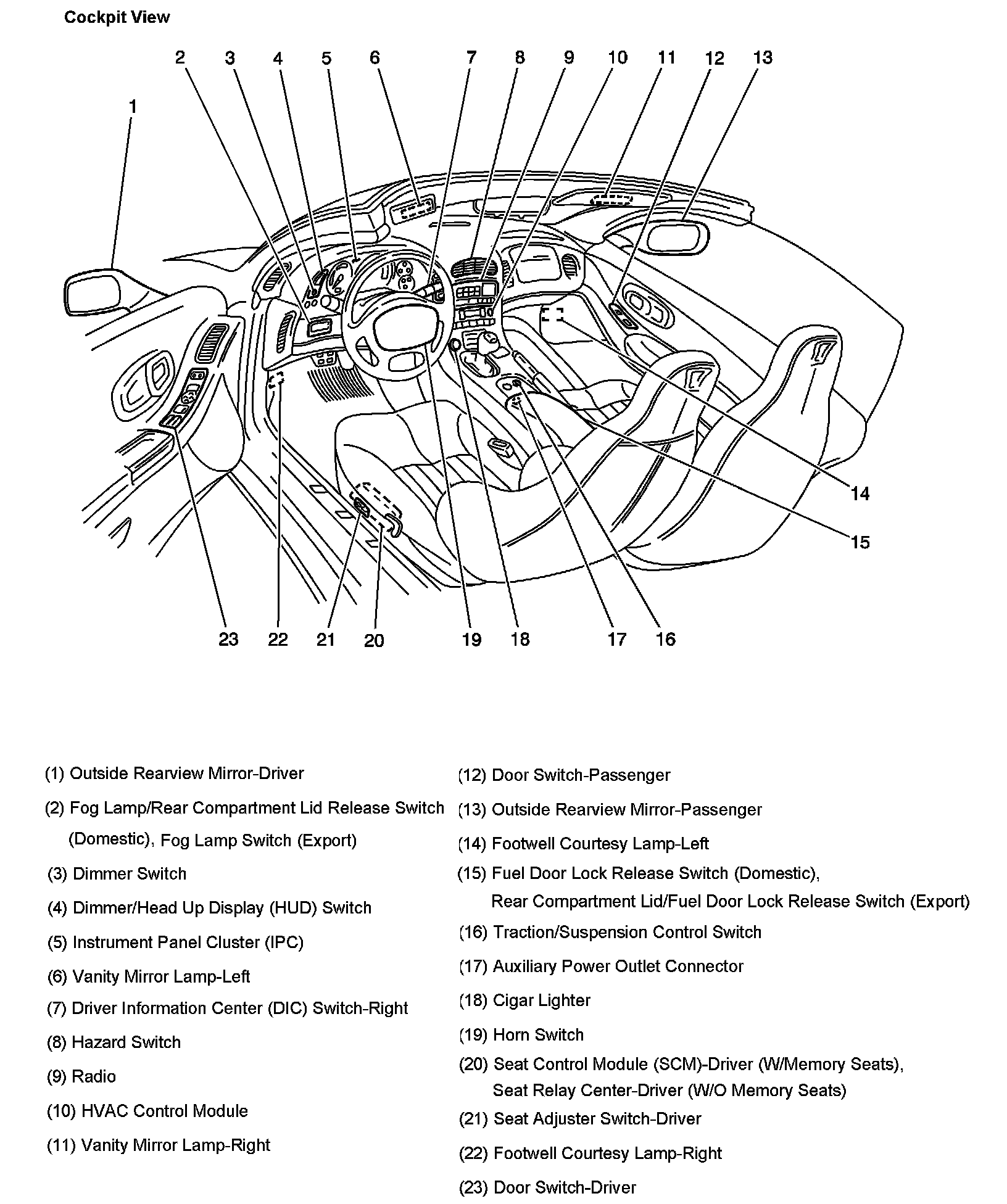

Cockpit View (w/Automatic - HVAC System):
