Chevrolet
>>
2003
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

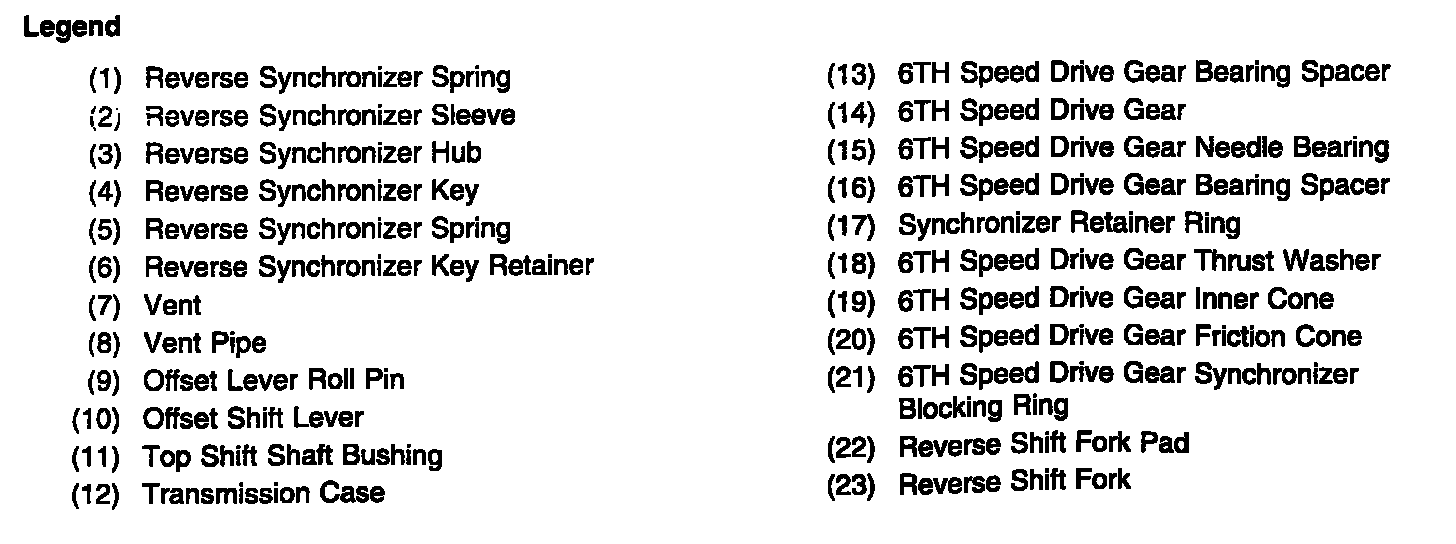

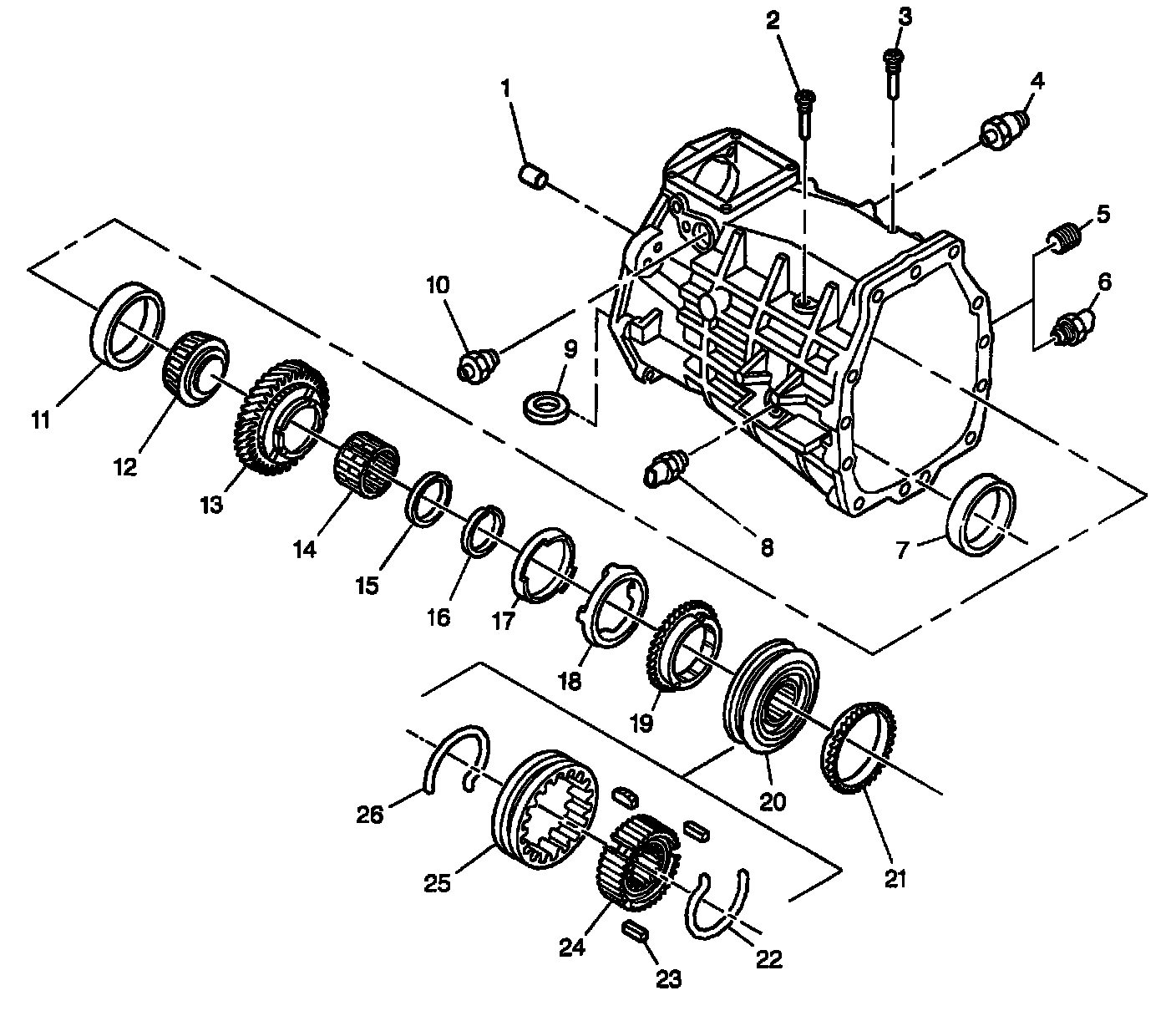

Transmission Case (Part 1)

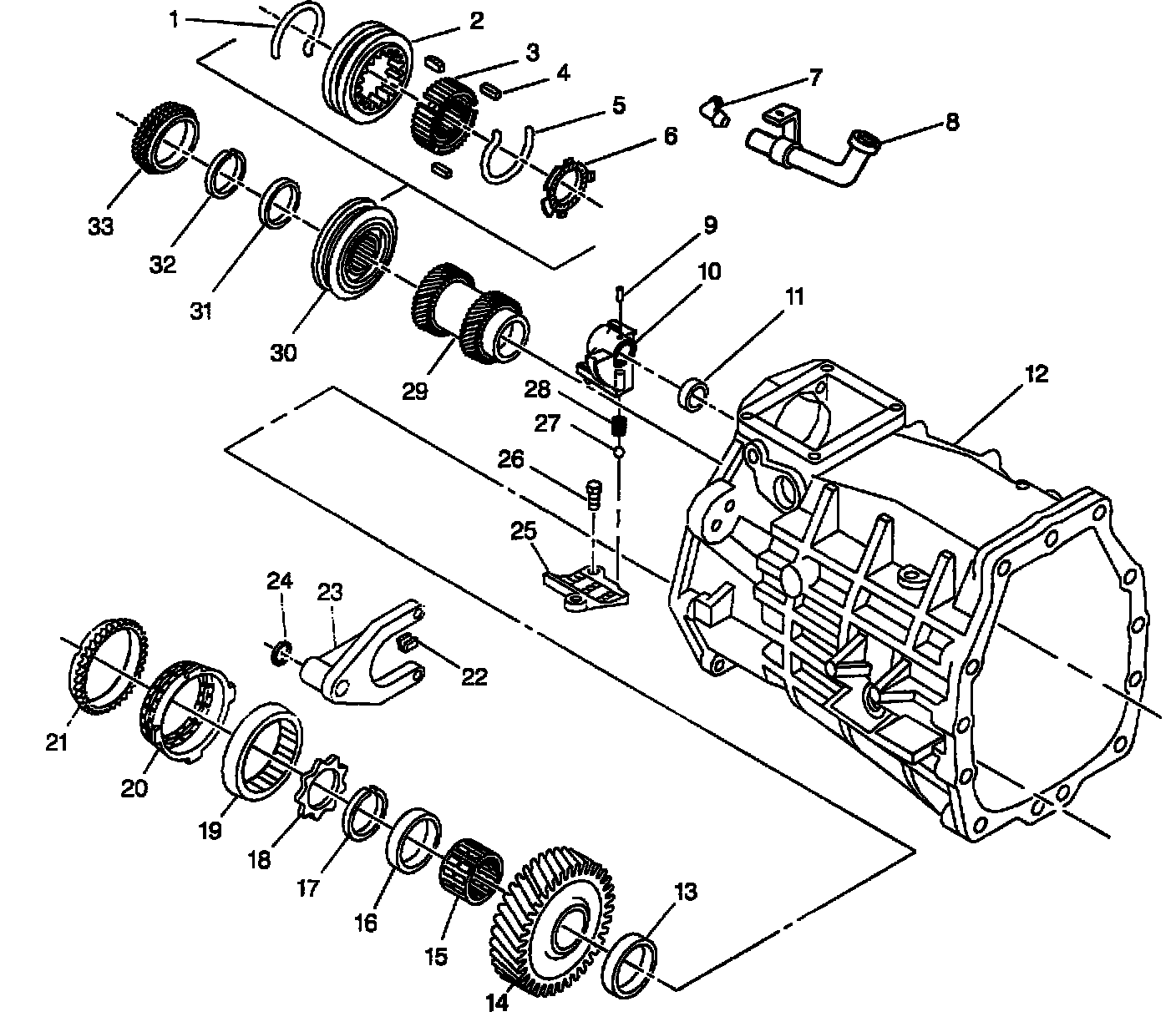

Transmission Case (Part 2)

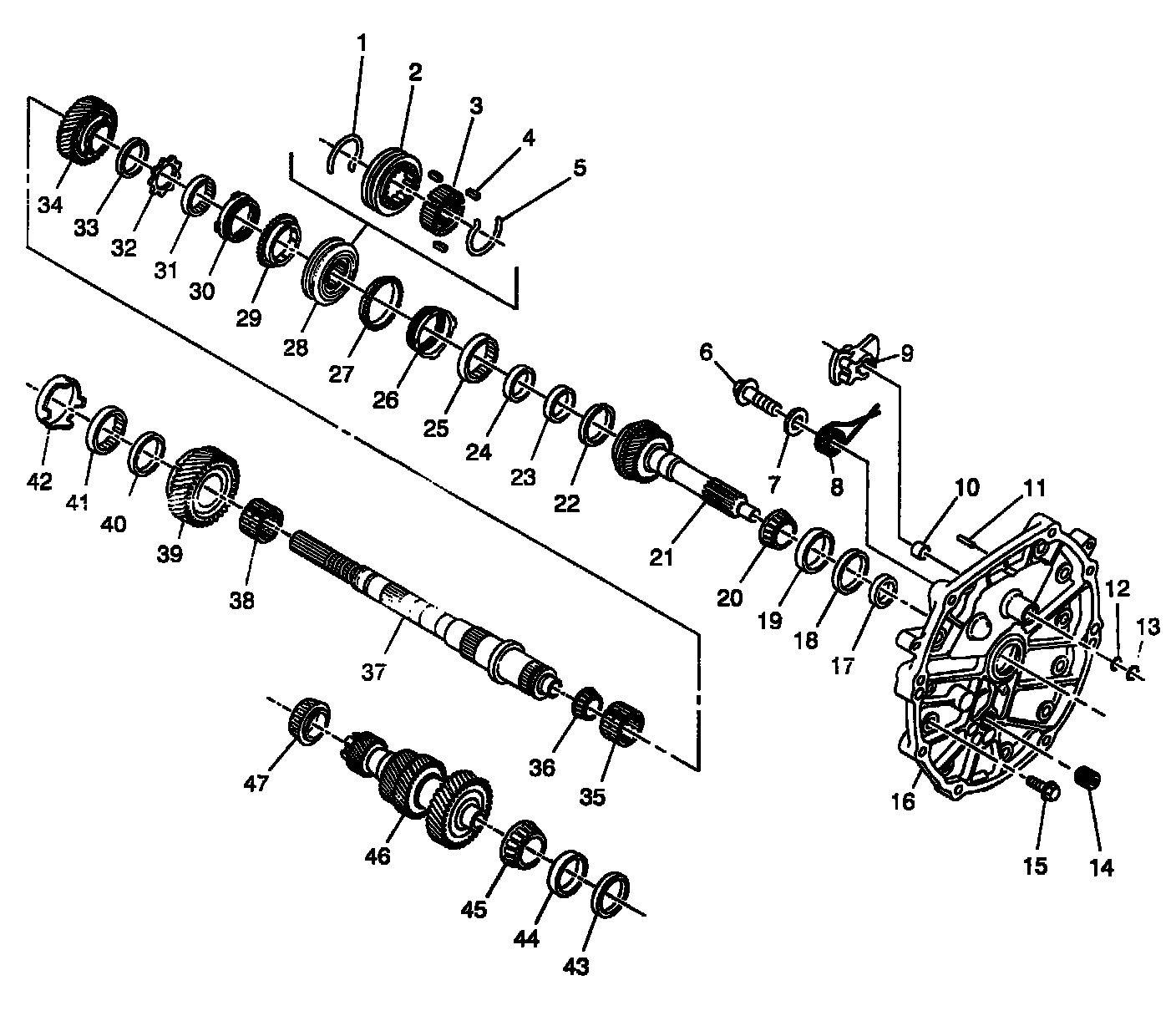

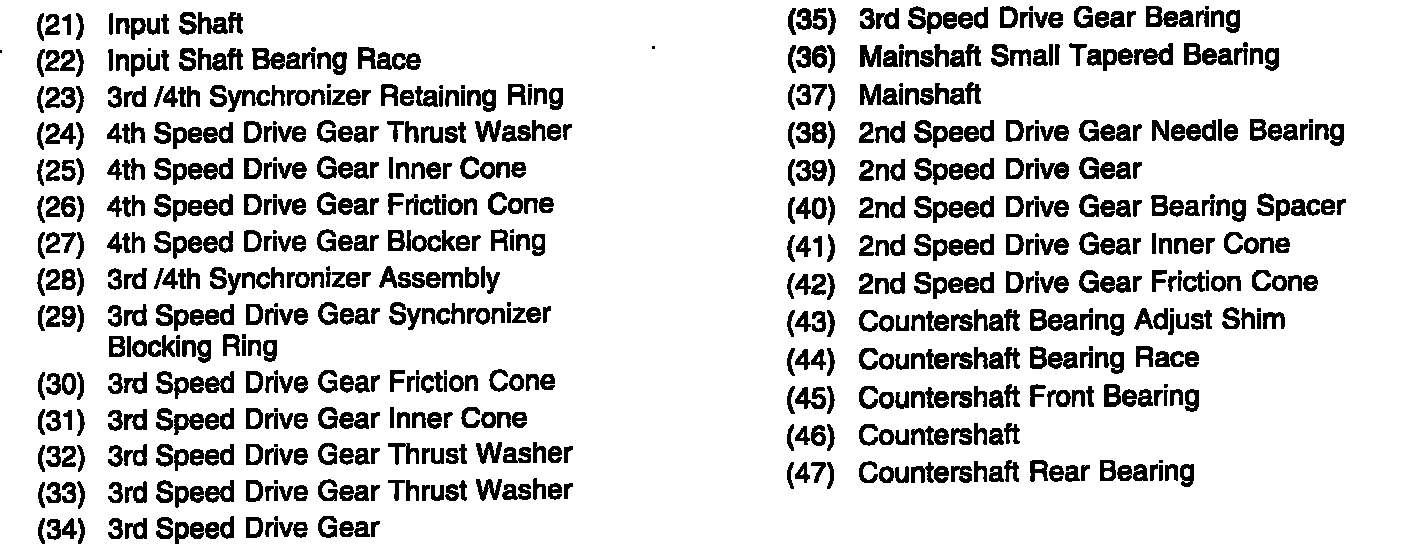

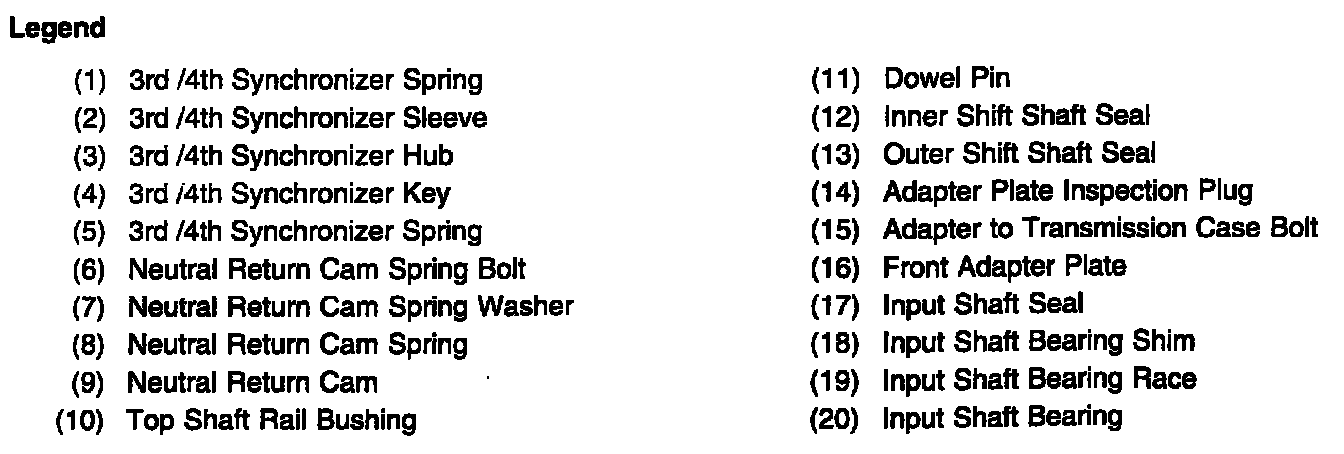

Adapter Plate and Gears

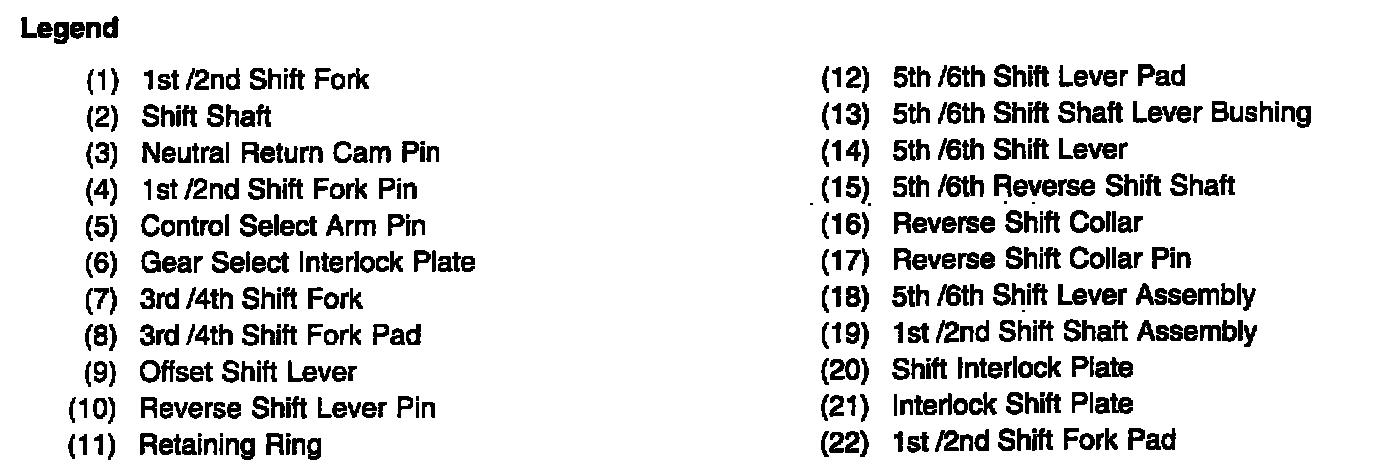

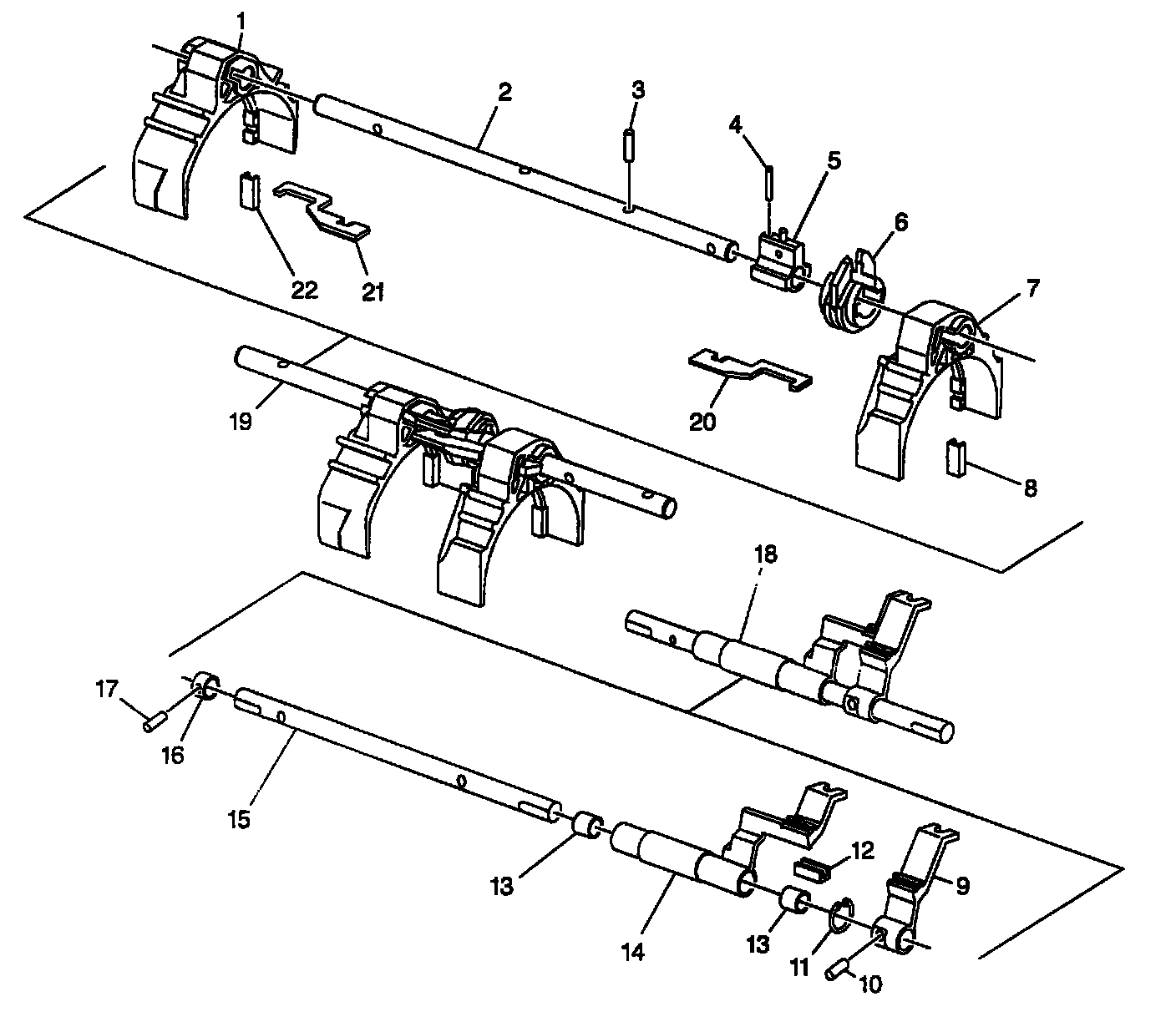

Shift Shafts
