Home >> Chevrolet >> 2003 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head/Upper Engine

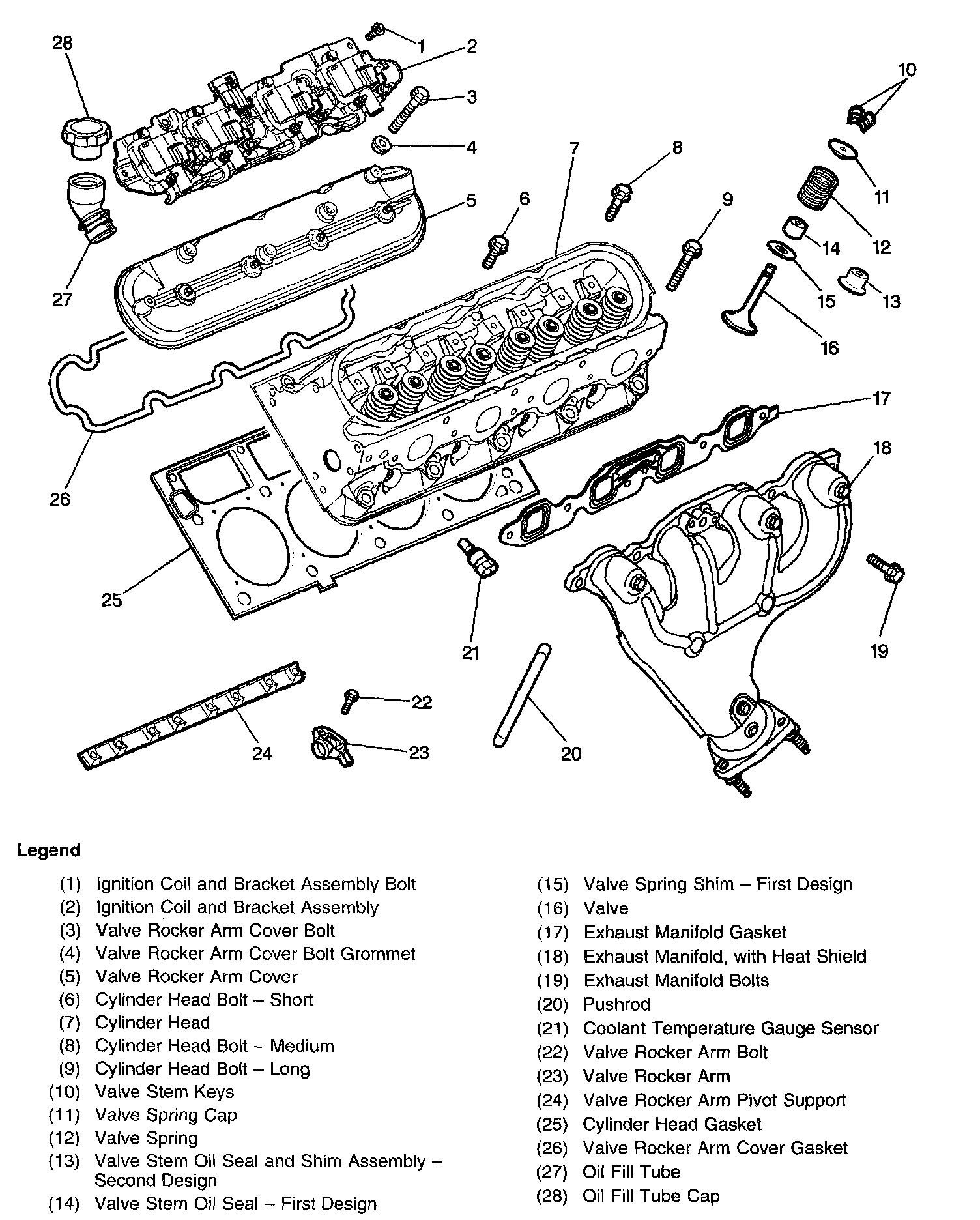

Cylinder Head/Upper Engine
