Body Control Module

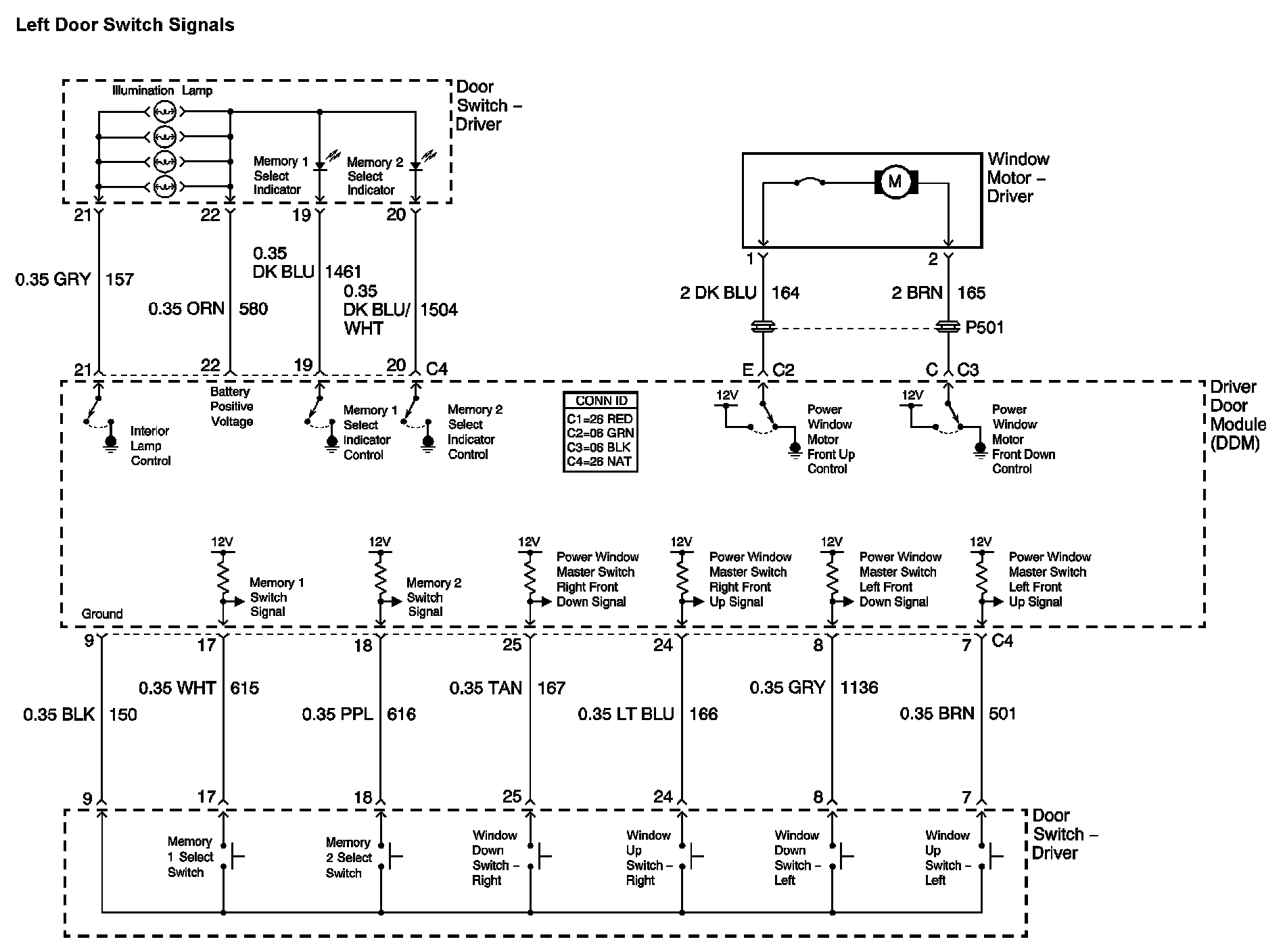

Door Control Module Diagram 1:

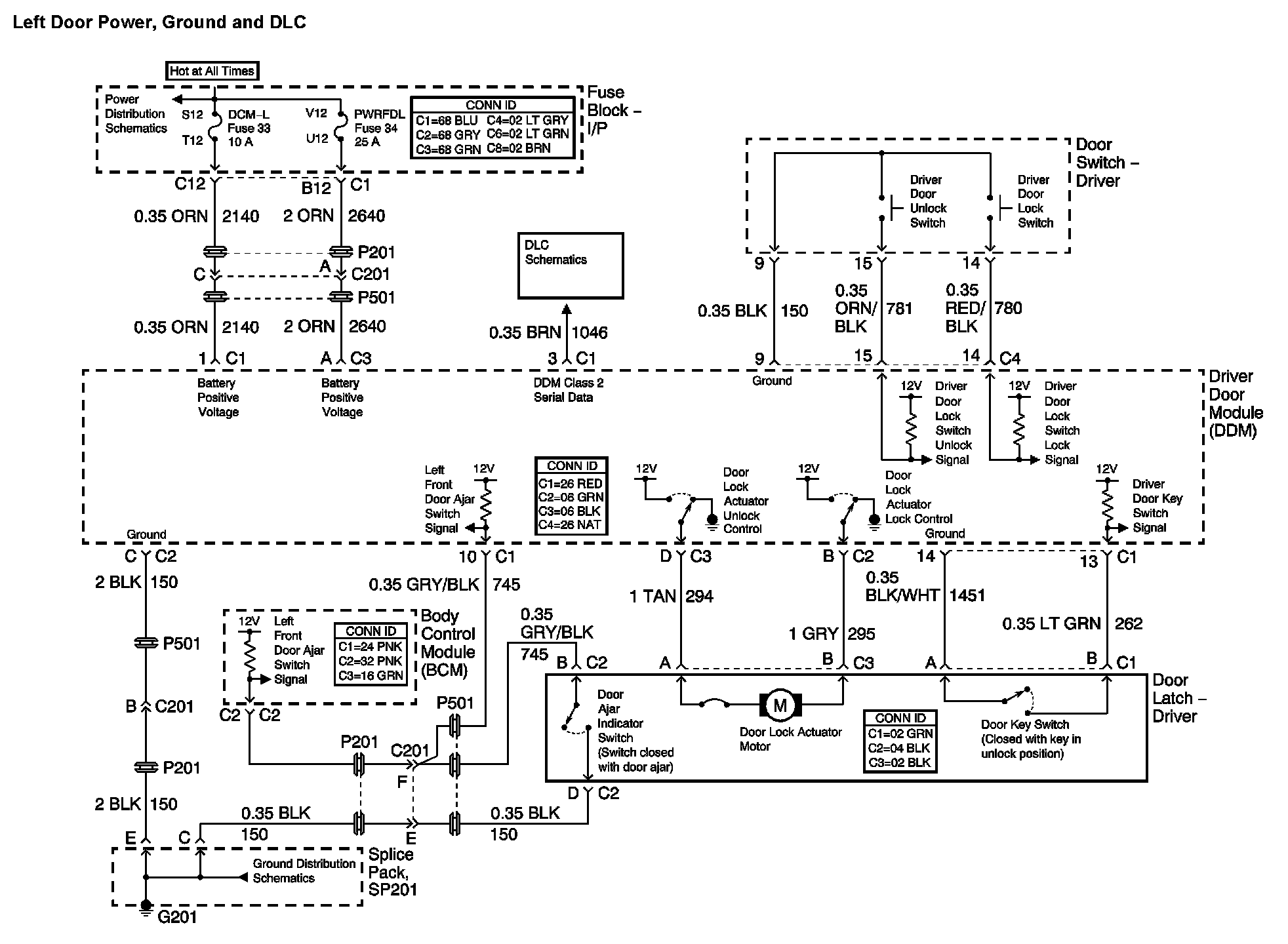

Door Control Module Diagram 2:

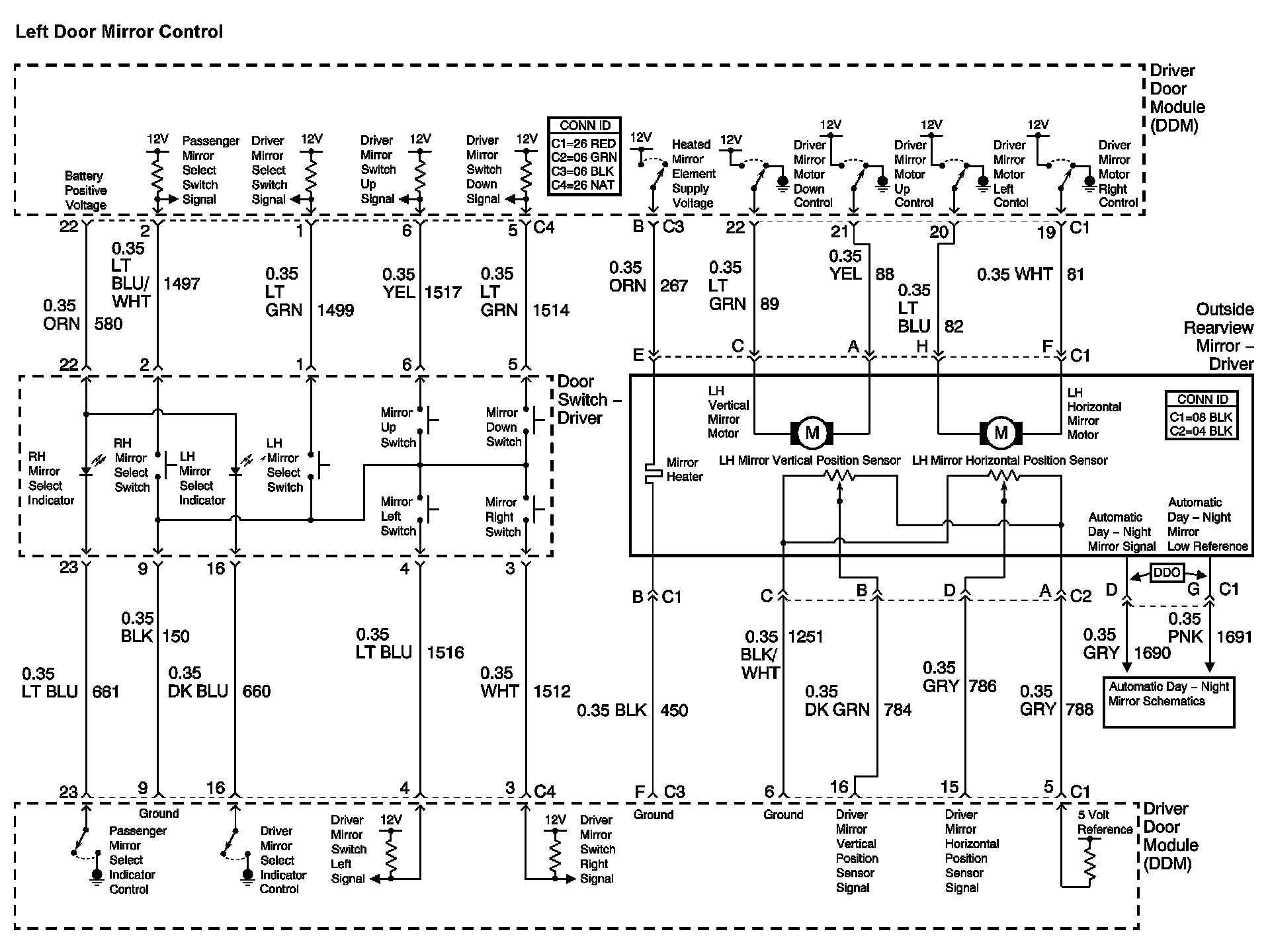

Door Control Module Diagram 3:

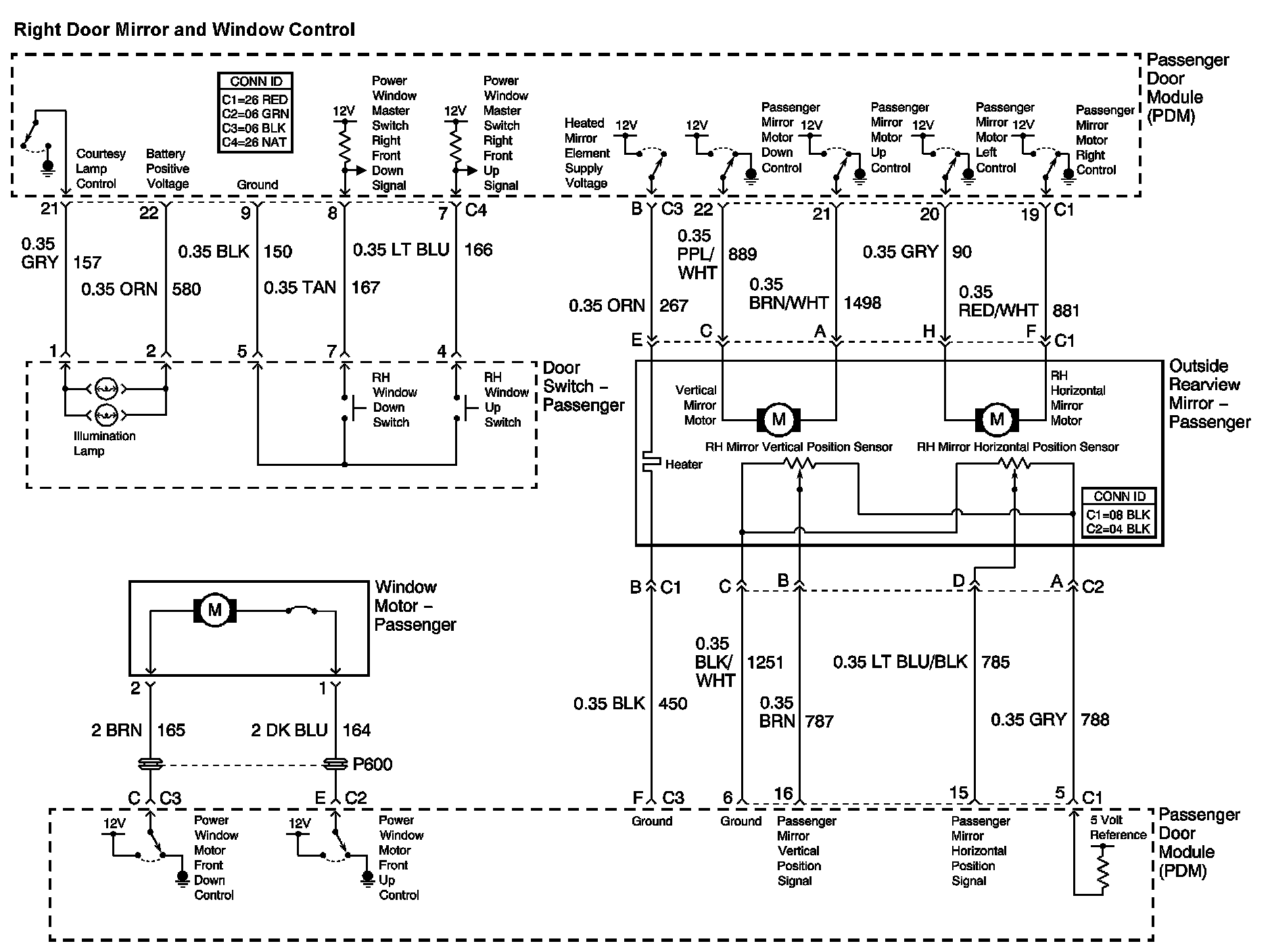

Door Control Module Diagram 4:

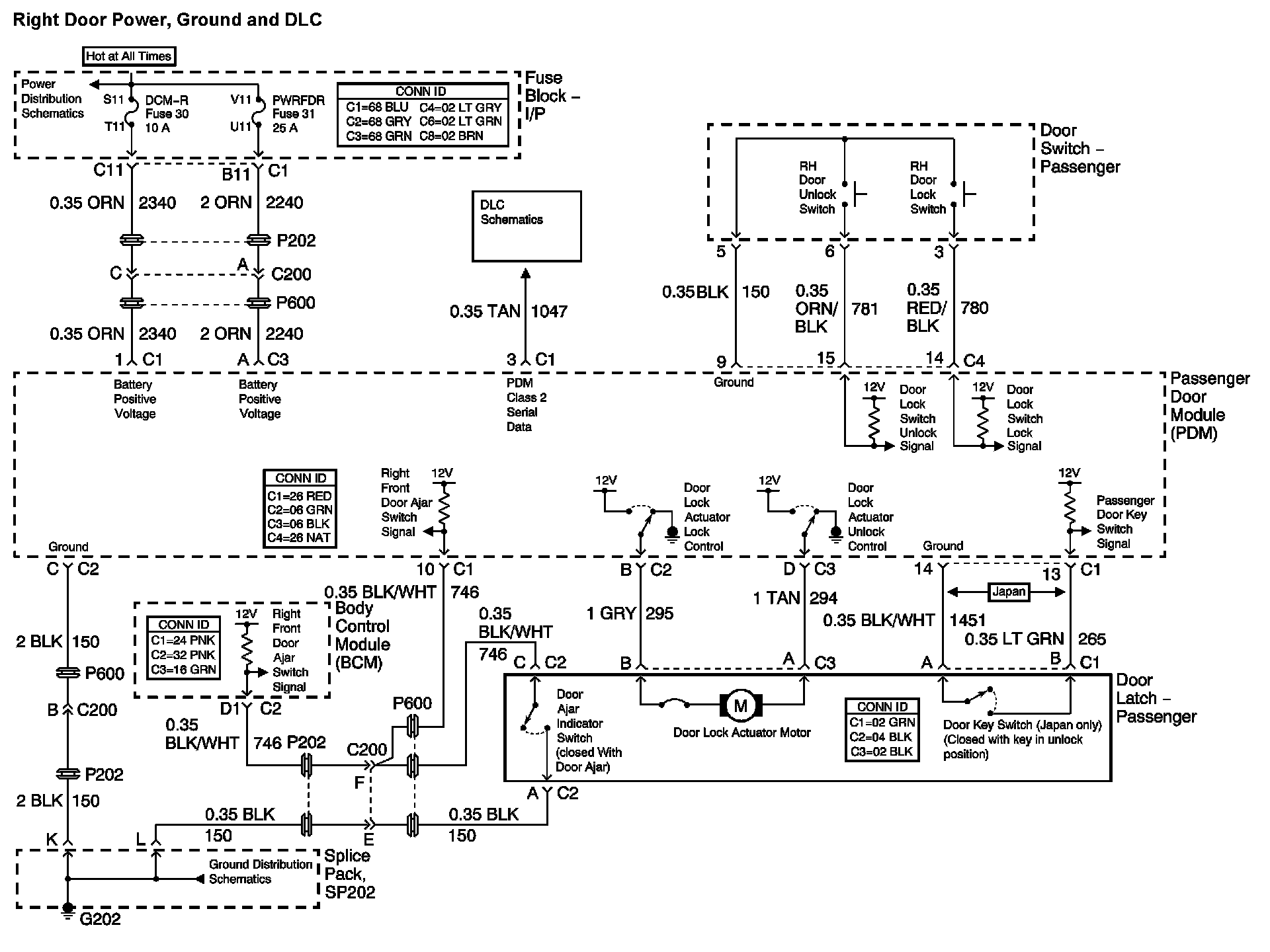

Door Control Module Diagram 5:
