Throttle Position Sensor Connector End View

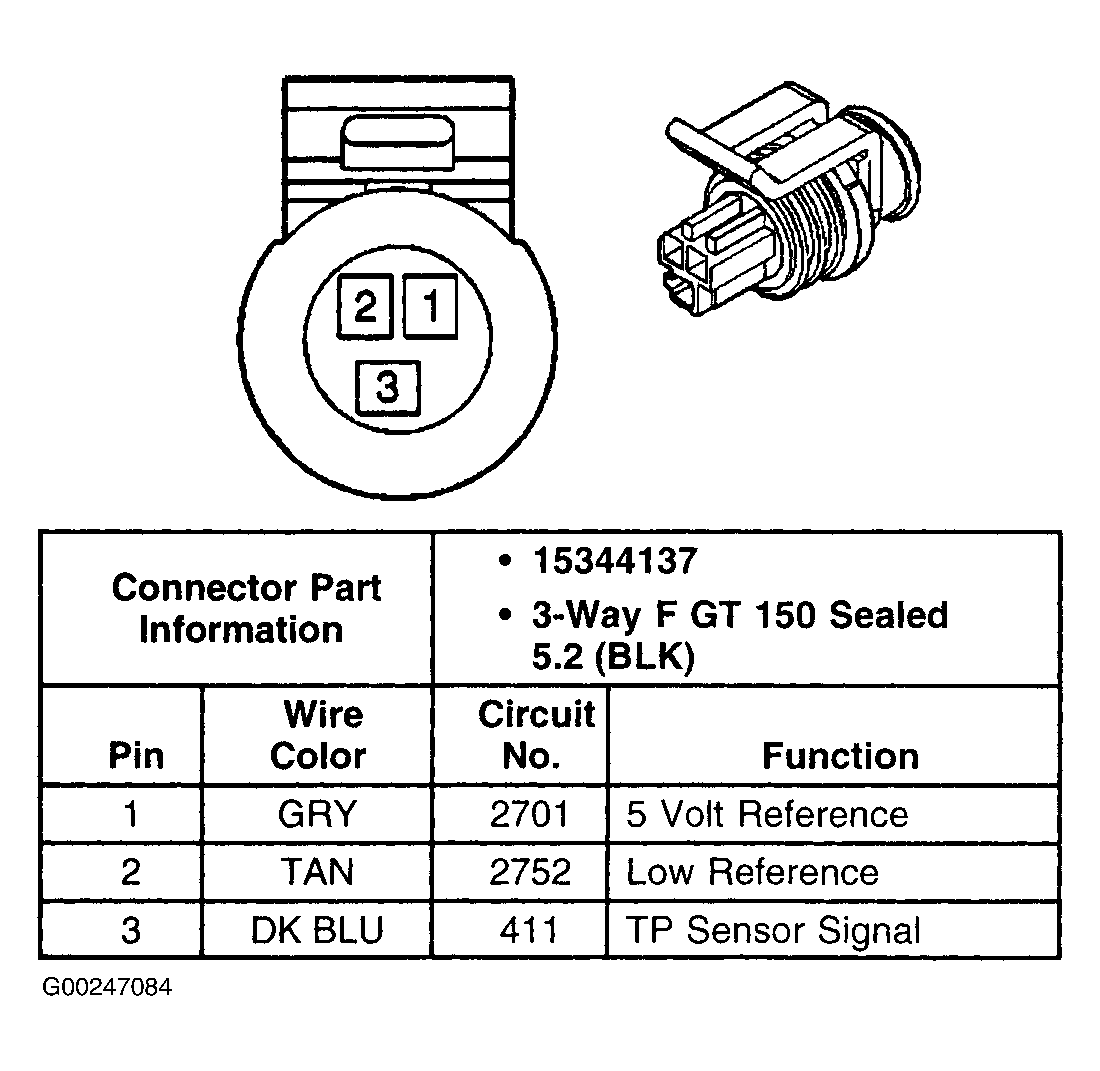

Fig 1: Throttle Position Sensor Connector End View
G00247084Courtesy of GENERAL MOTORS CORP.

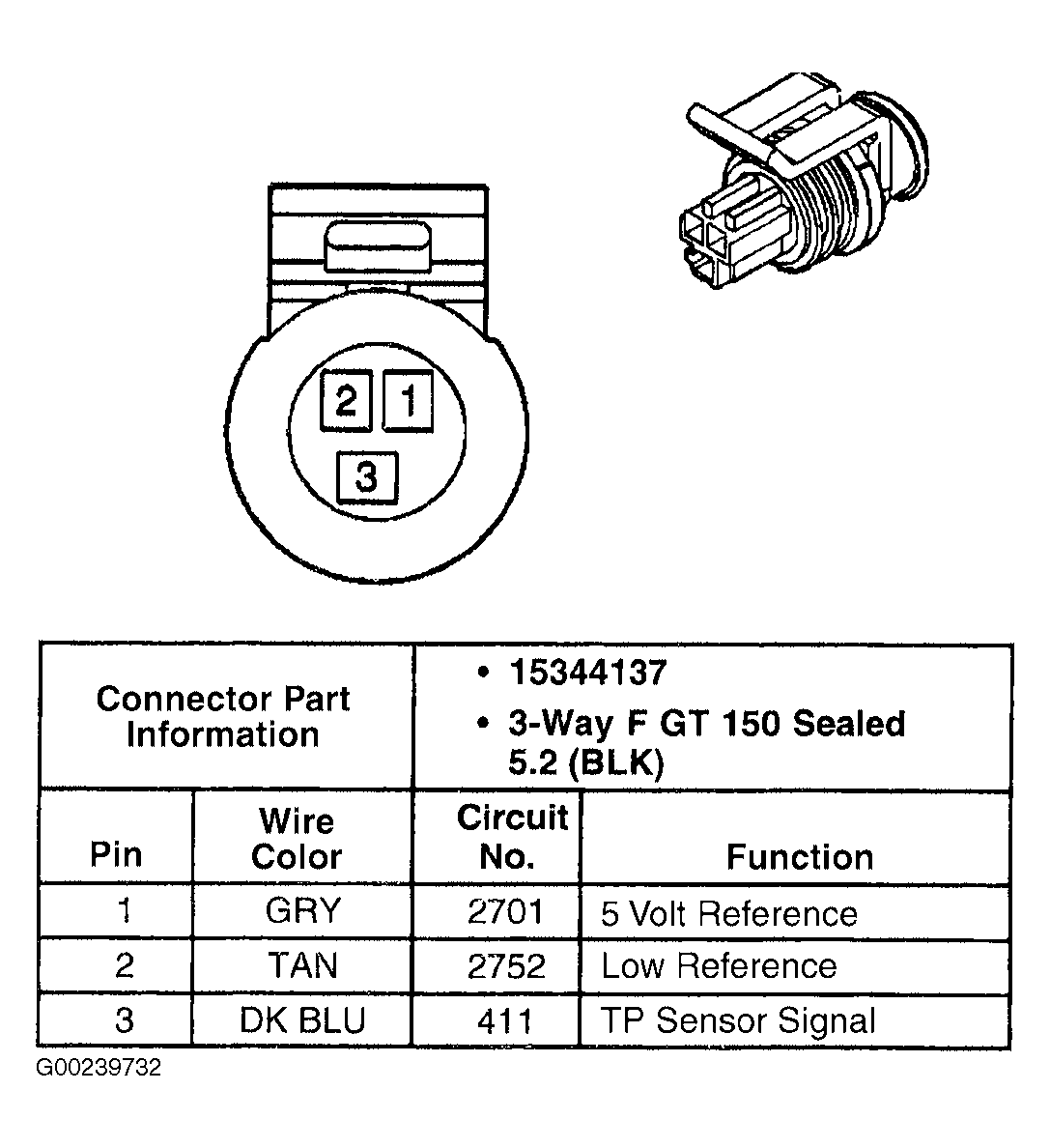

Fig 1: Throttle Position Sensor Connector End View
G00239732Courtesy of GENERAL MOTORS CORP.
