Automatic Transmission Controls Schematics

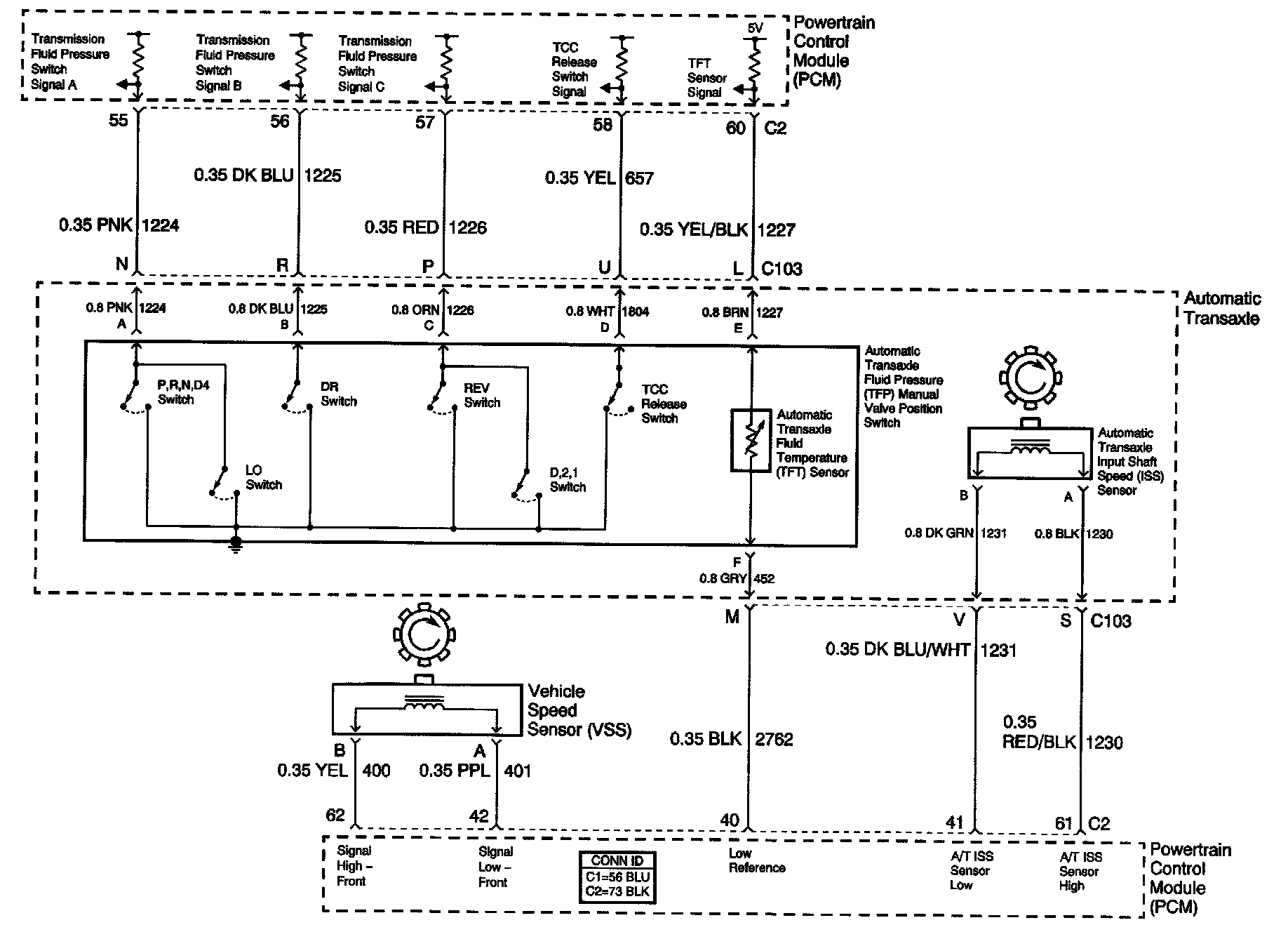

Automatic Transmission Controls:

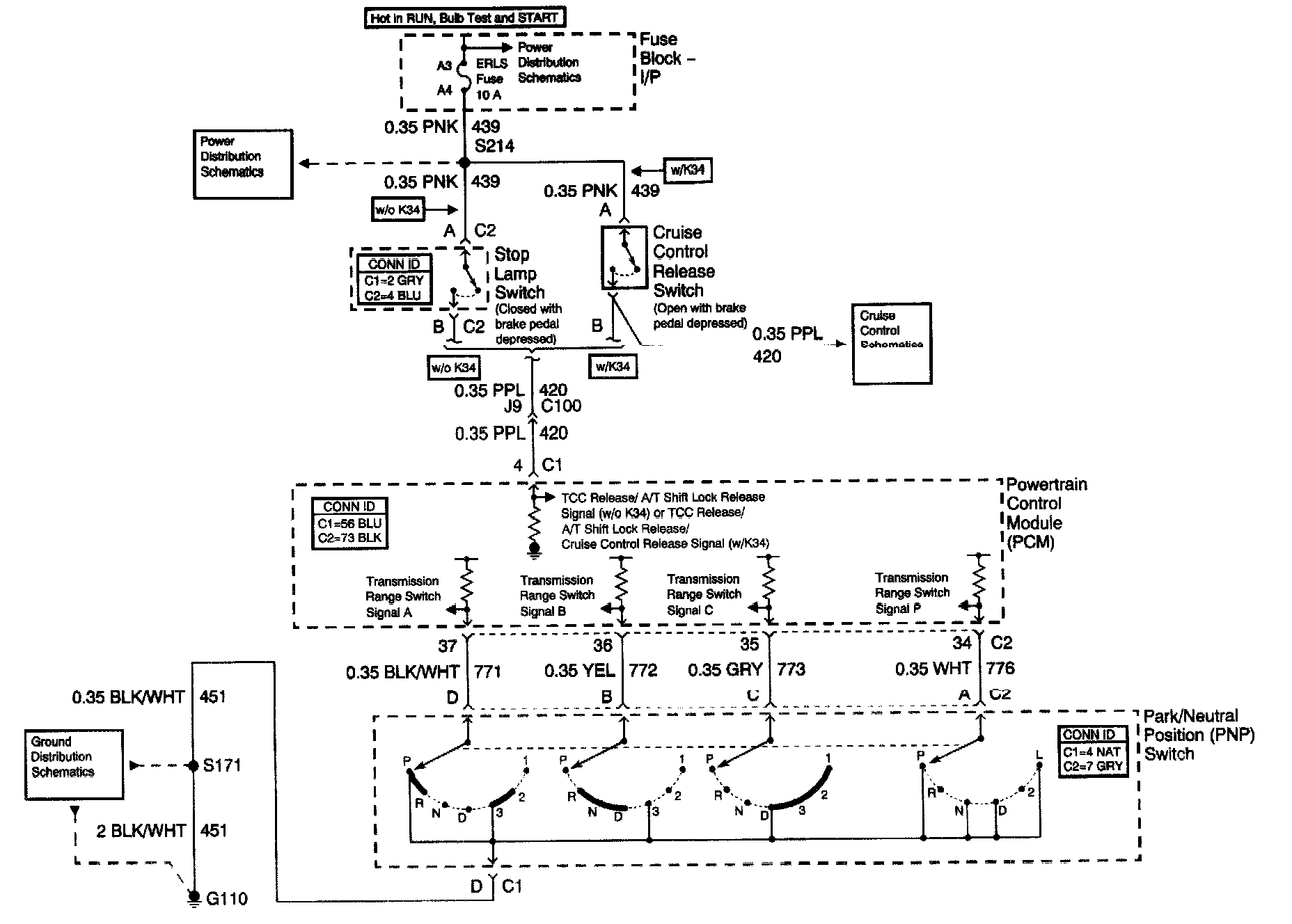

PNP Switch and TCC Release Signal:

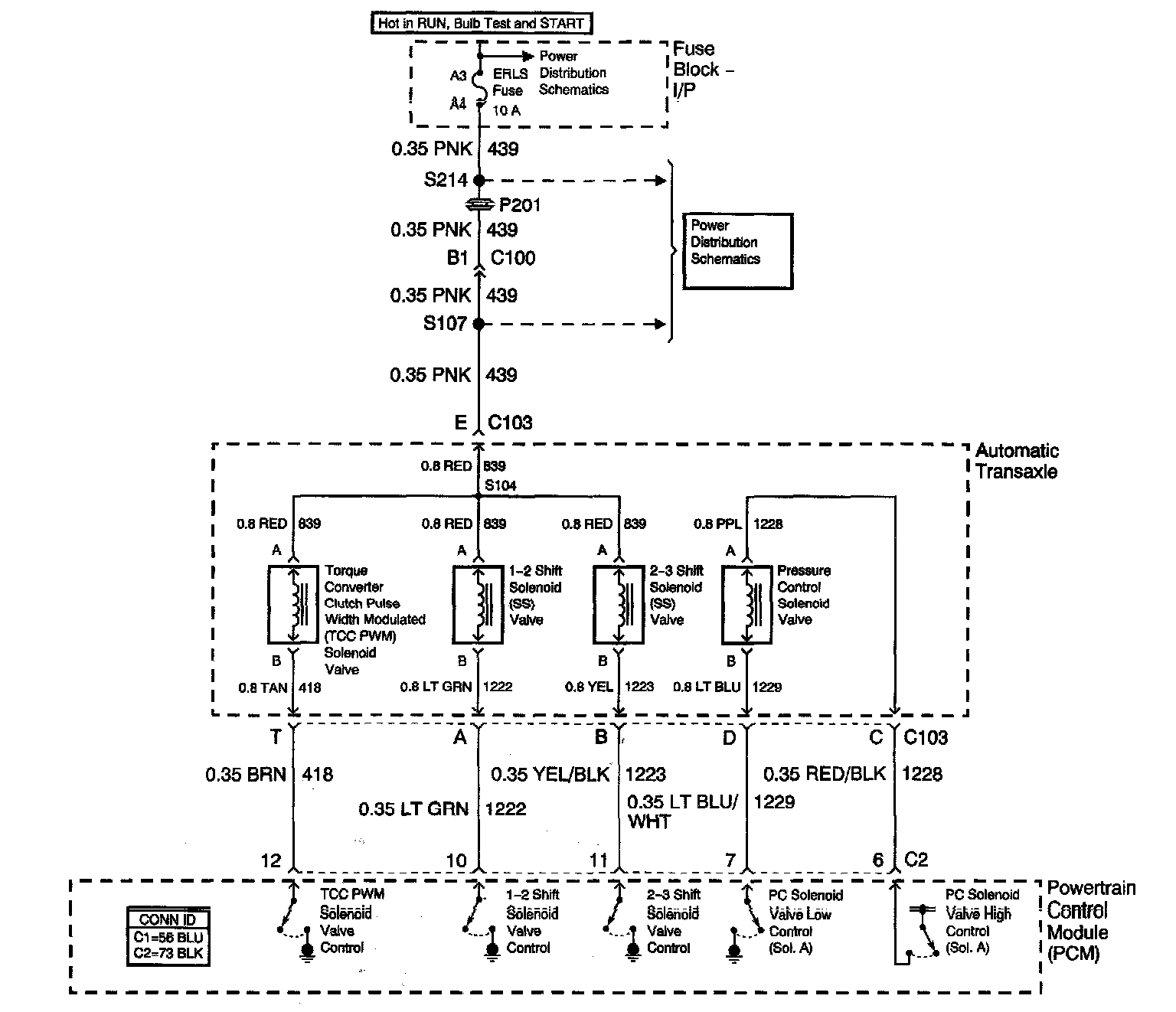

Solenoid Controls:
