Frame Contact Hoist

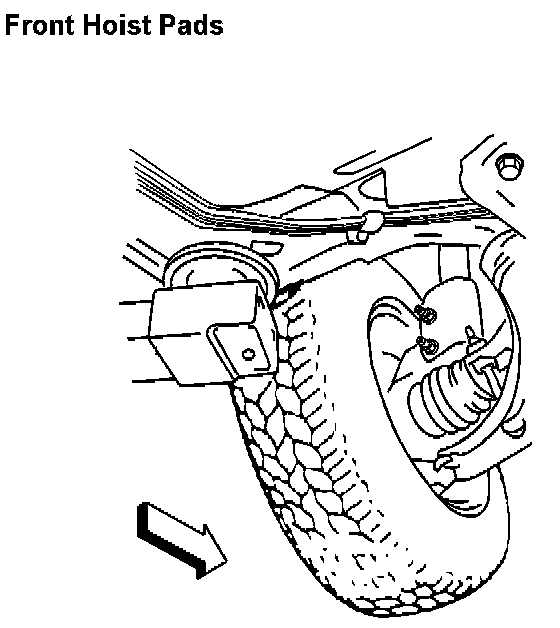

FRONT HOIST PADS

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

Frame Contact Hoist:

Position the frame contact front hoist pads as follows:
- Under the front frame rail shipping slot reinforcements.
- The long sides of the pads parallel to the frame rails.

REAR HOIST PADS

IMPORTANT:
- The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements.
- The rear hoist pads must not contact the floor pan.

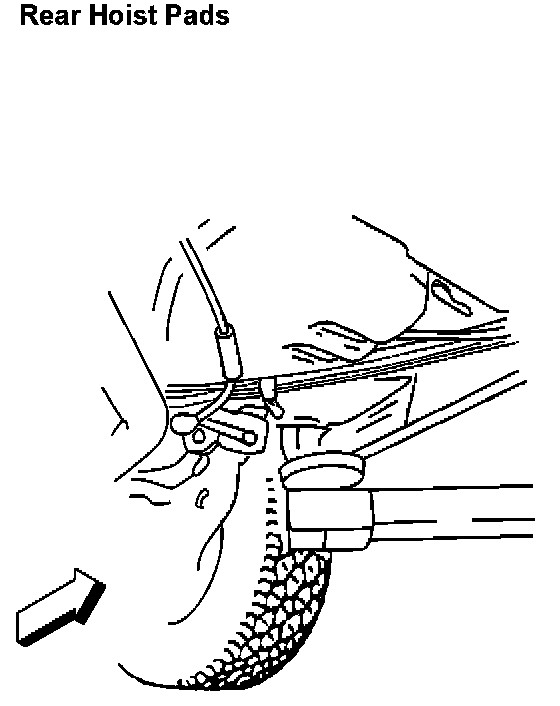

Rear Hoist Pads:

Position the frame contact rear hoist pads as follows:
- Under the rear frame rail shipping slot reinforcements.
- The long sides of the pads perpendicular to the frame rails.
- The outer edge of the pads aligned with the outer edge of the rear frame rail shipping slot reinforcements.
