Steering Gear

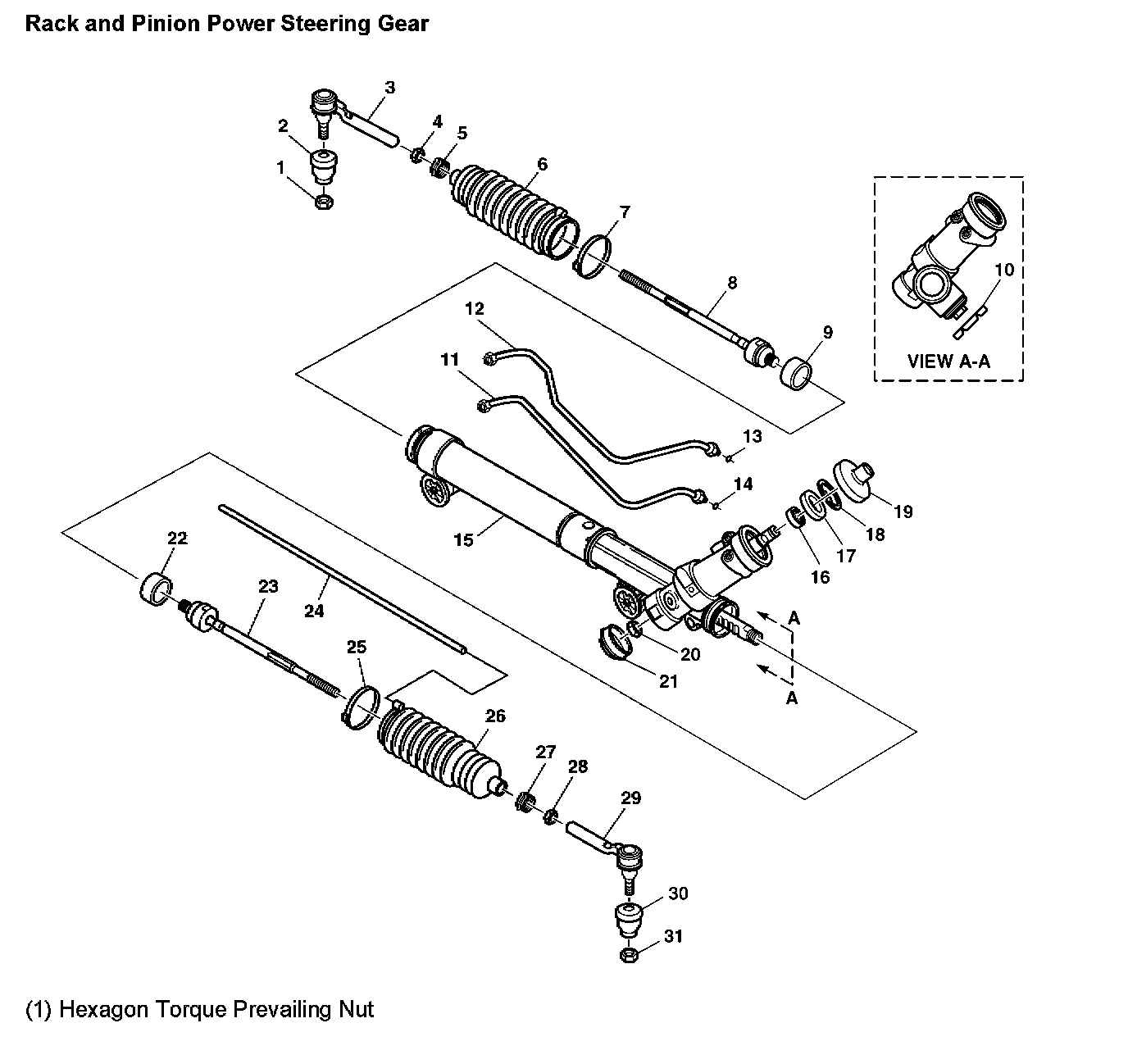

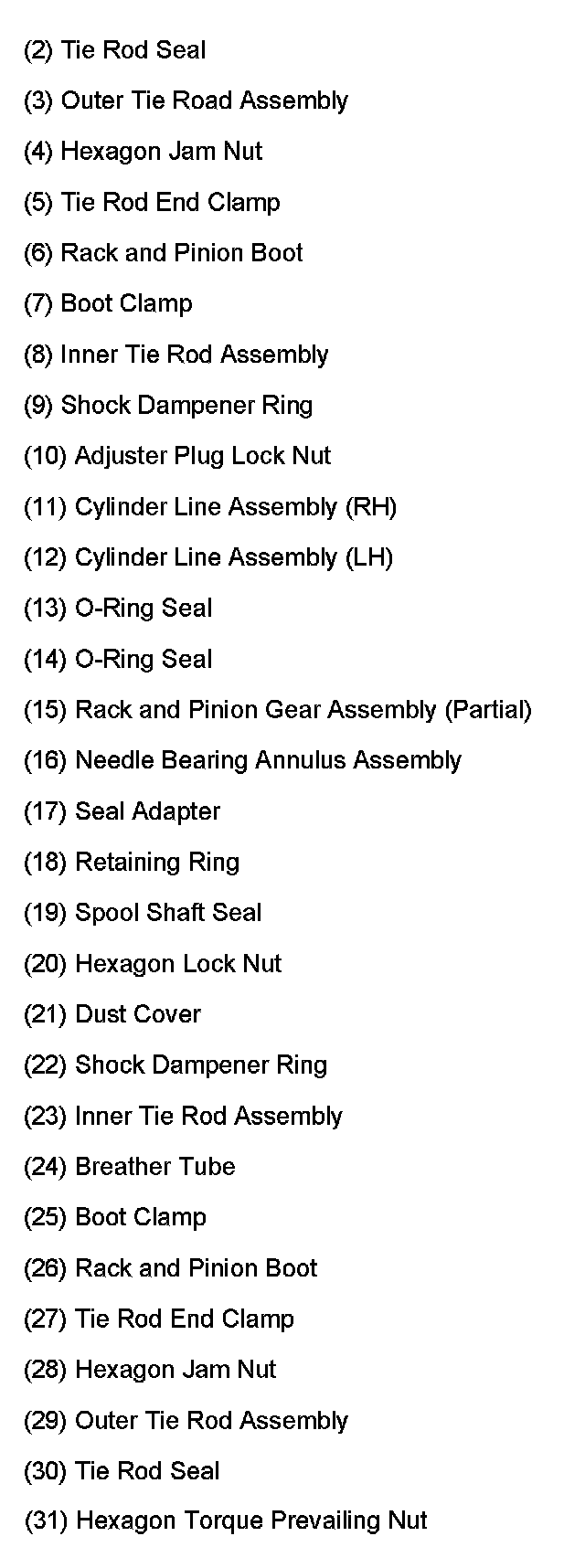

Rack And Pinion Power Steering Gear Part 1:



Rack And Pinion Power Steering Gear Part 2:
