Home >> Chevrolet >> 2003 >> Cavalier L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Reaction Carrier Assembly

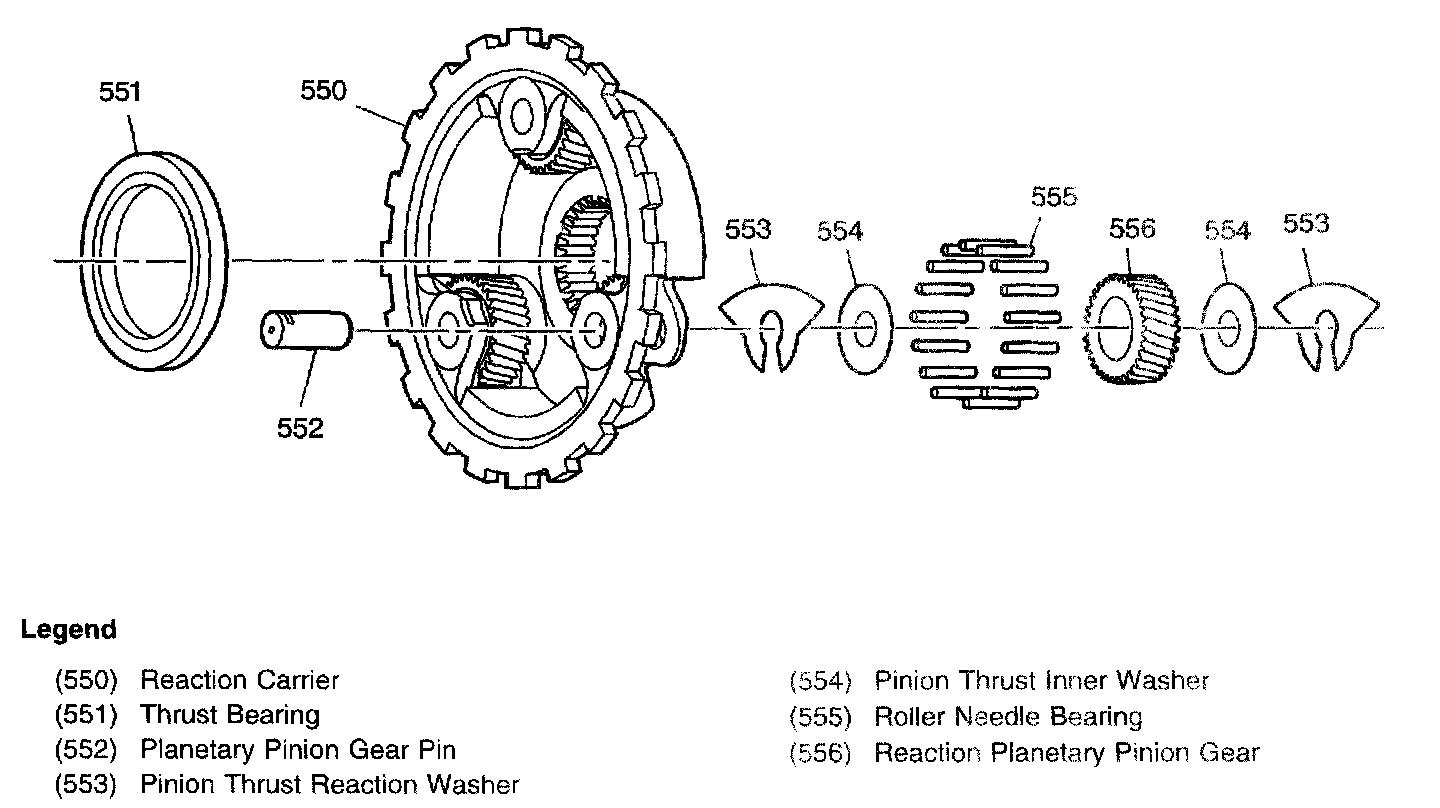

Reaction Carrier Assembly
