LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2003
>>
Cavalier L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body Control Systems
Body Control Systems

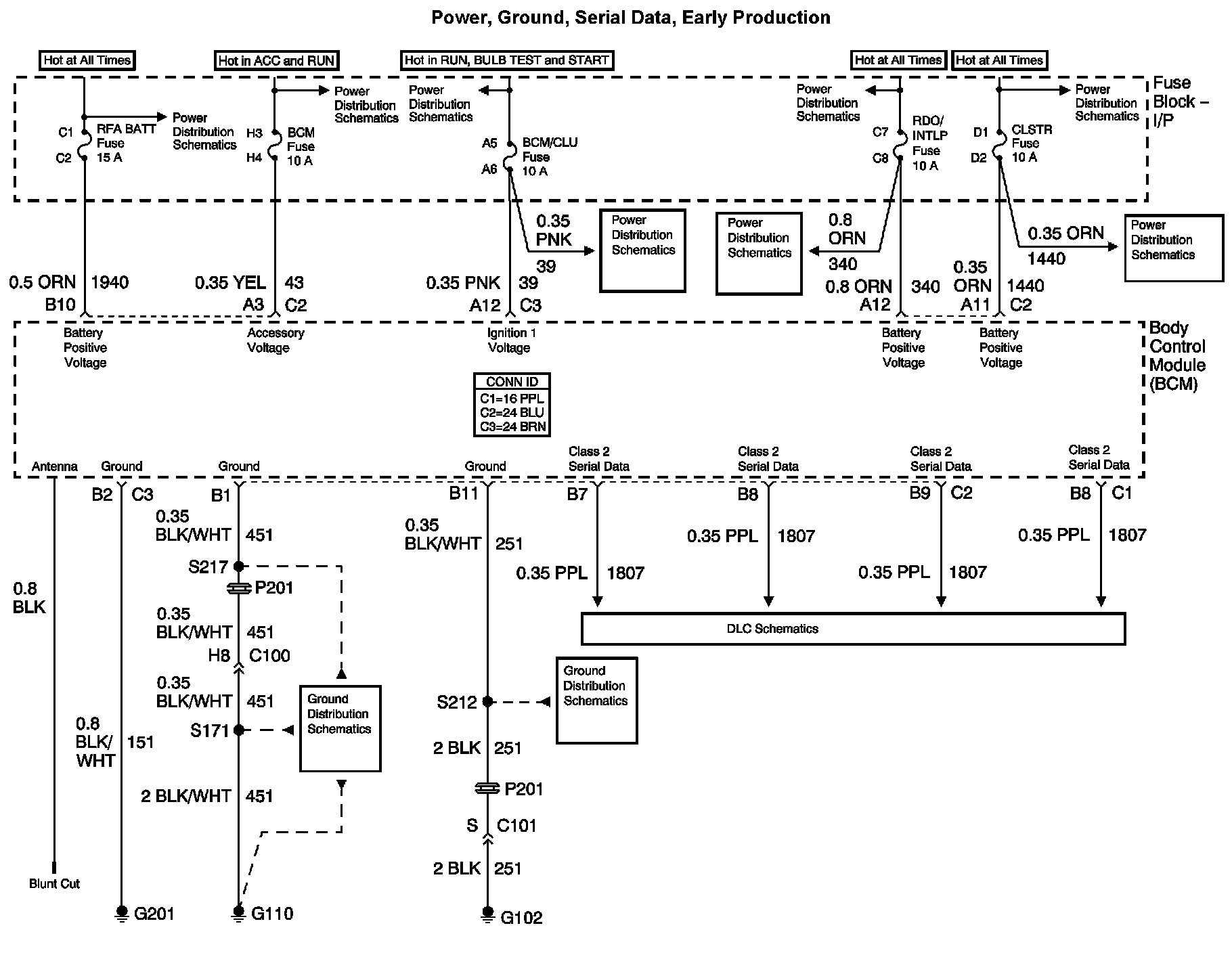

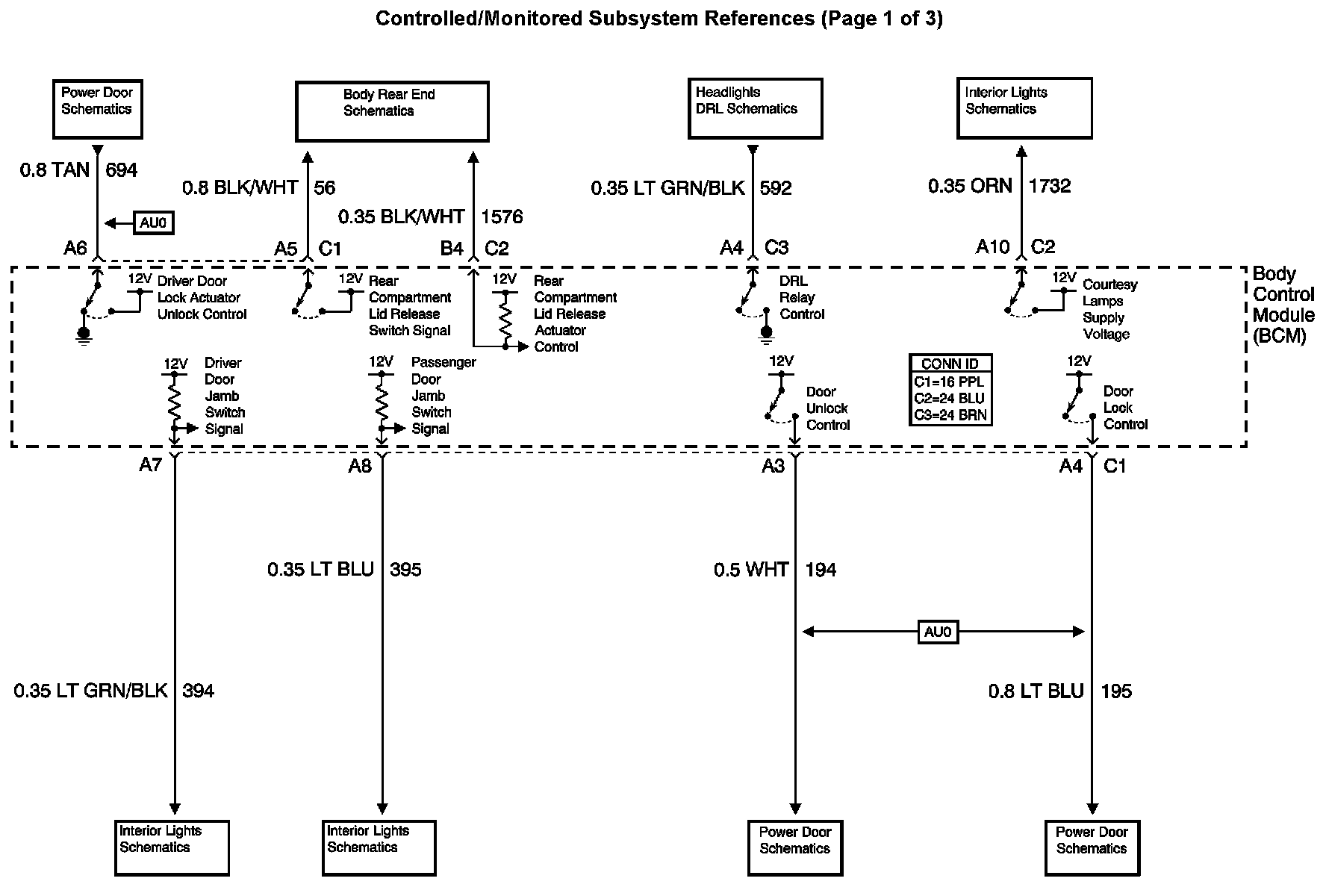

Body Control System Diagram 1:

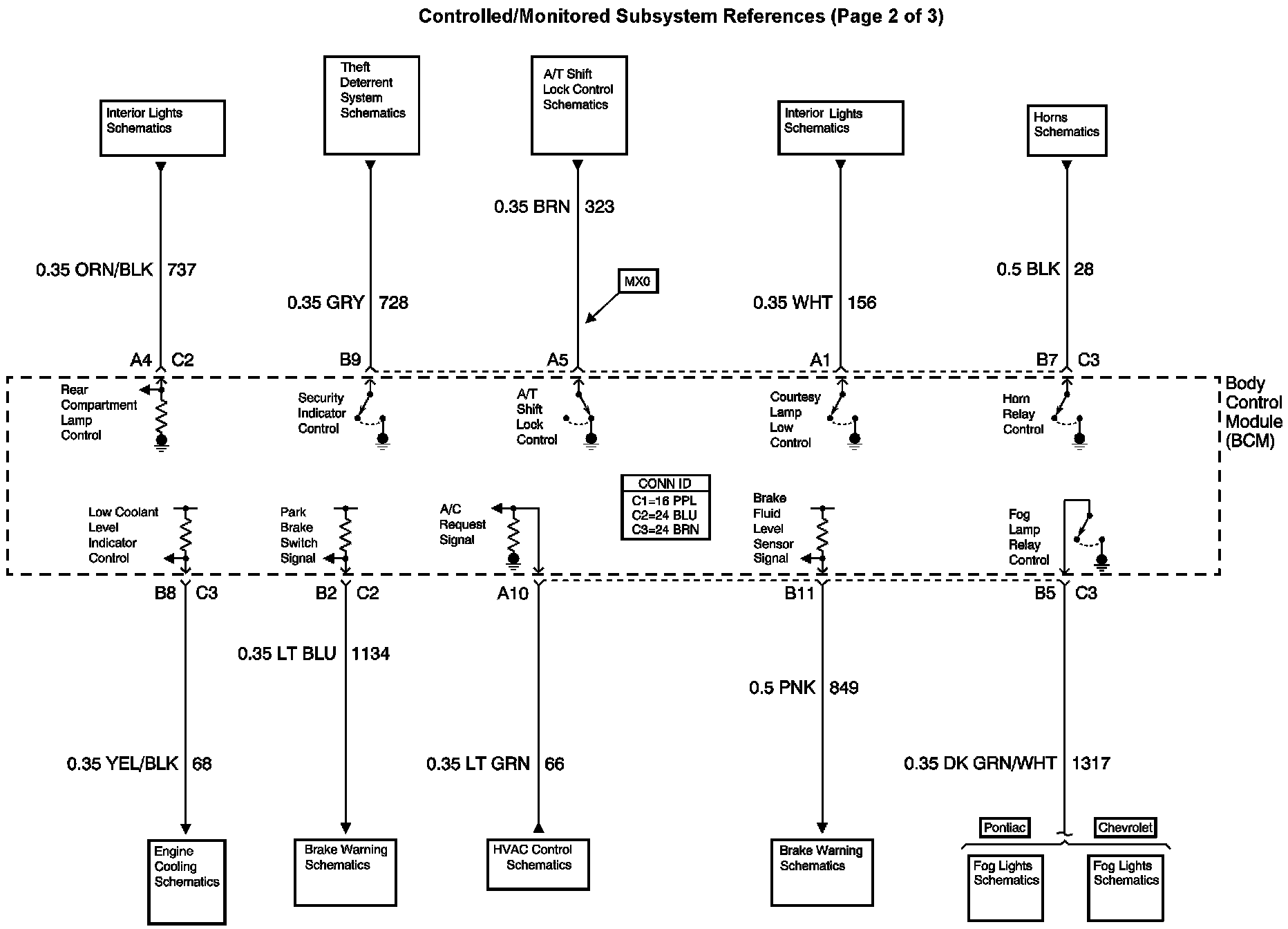

Body Control System Diagram 2:

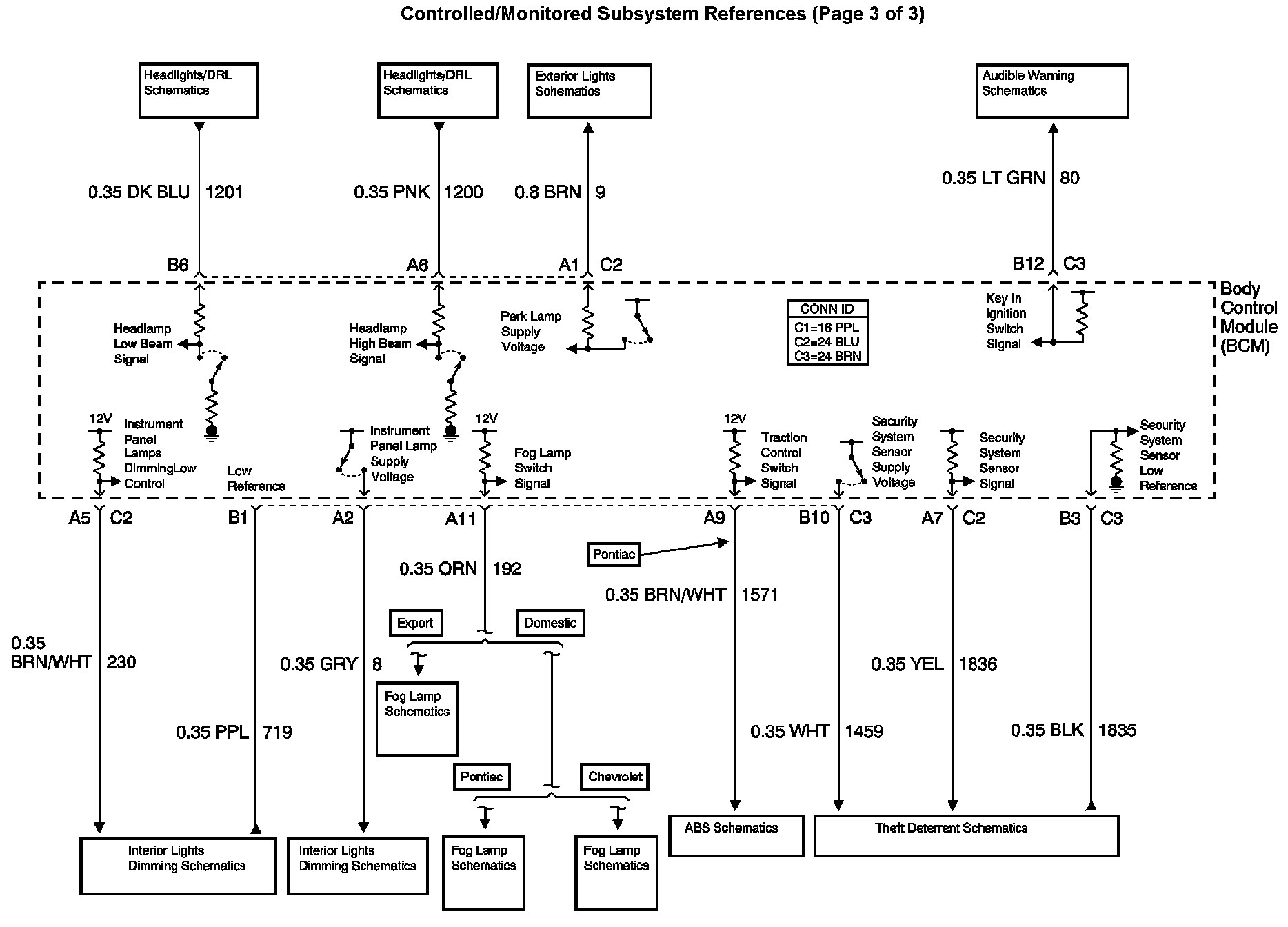

Body Control System Diagram 3:
Body Control System Diagram 4:

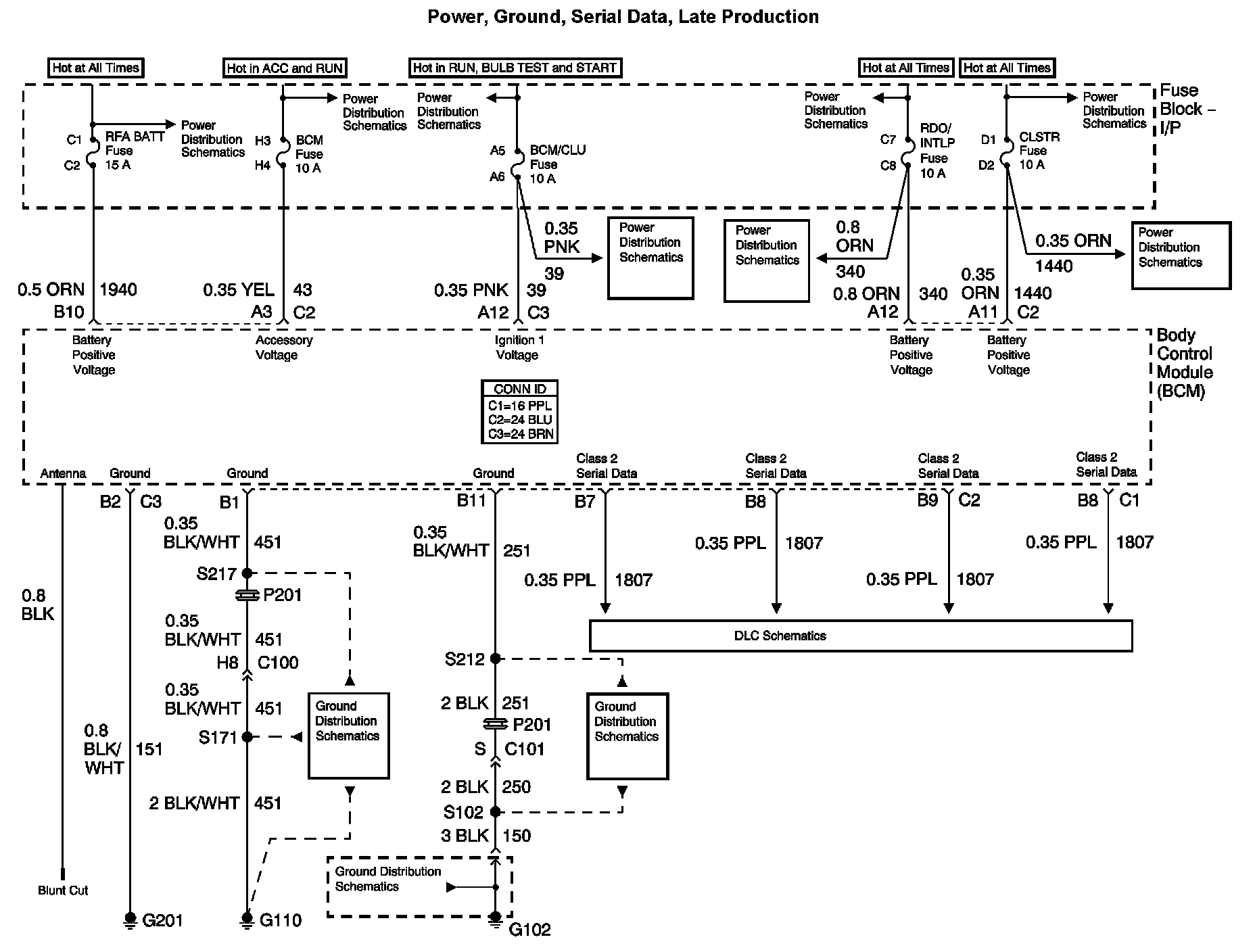

Body Control System Diagram 5:
