Fuse Block - Underhood Wire Entry

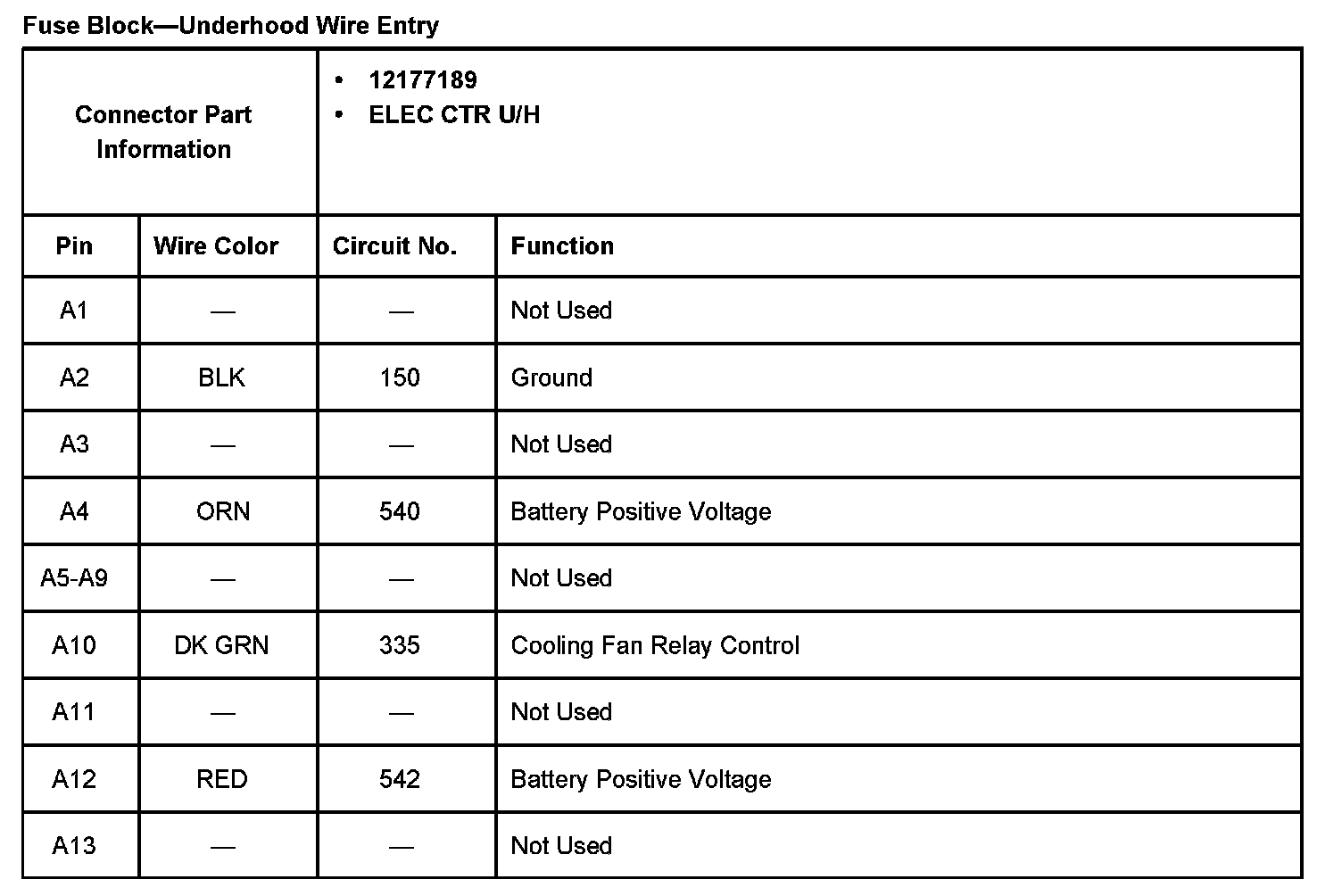

Fuse Block - Underhood Wire Entry Part 1:

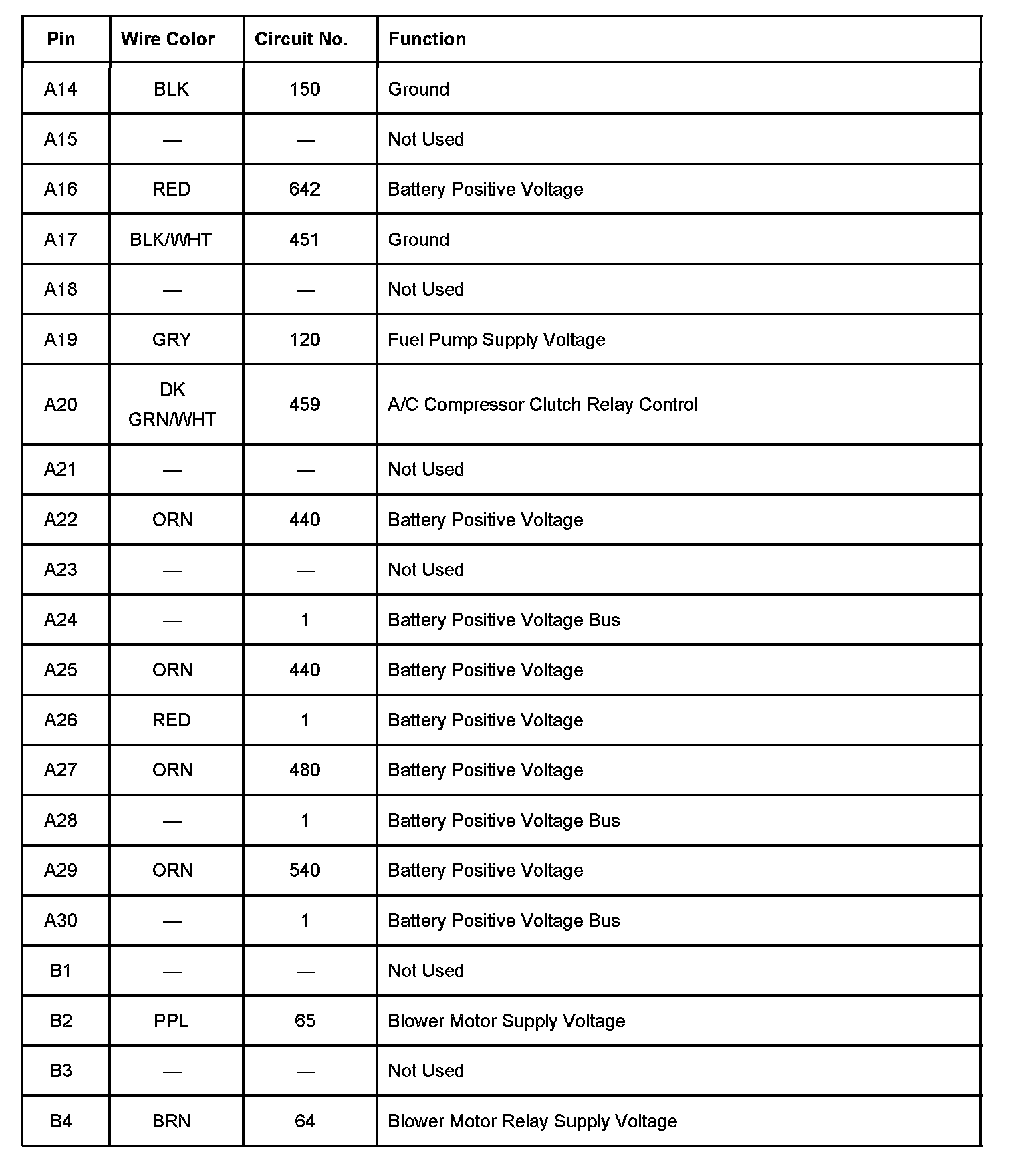

Fuse Block - Underhood Wire Entry Part 2:

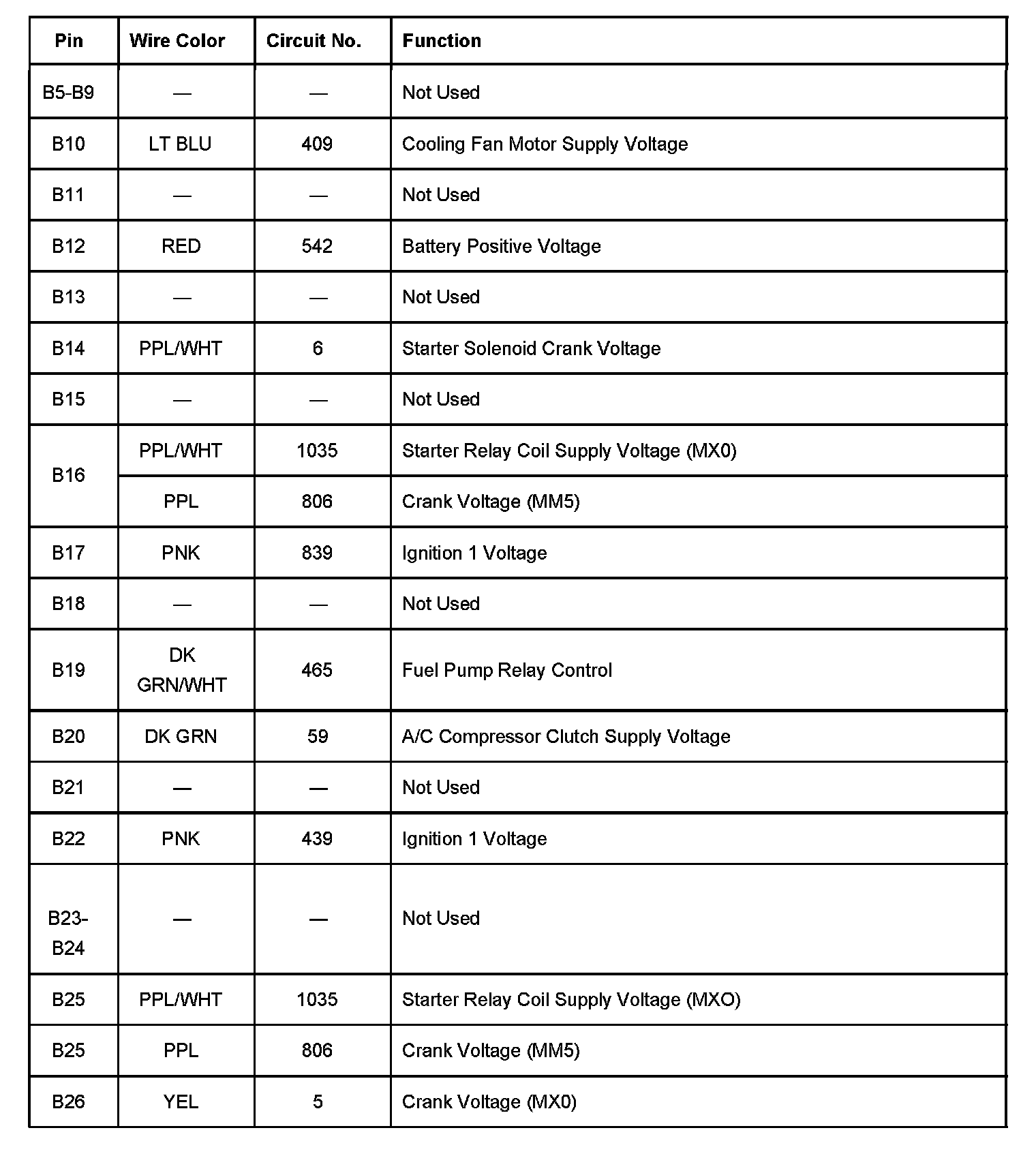

Fuse Block - Underhood Wire Entry Part 3:

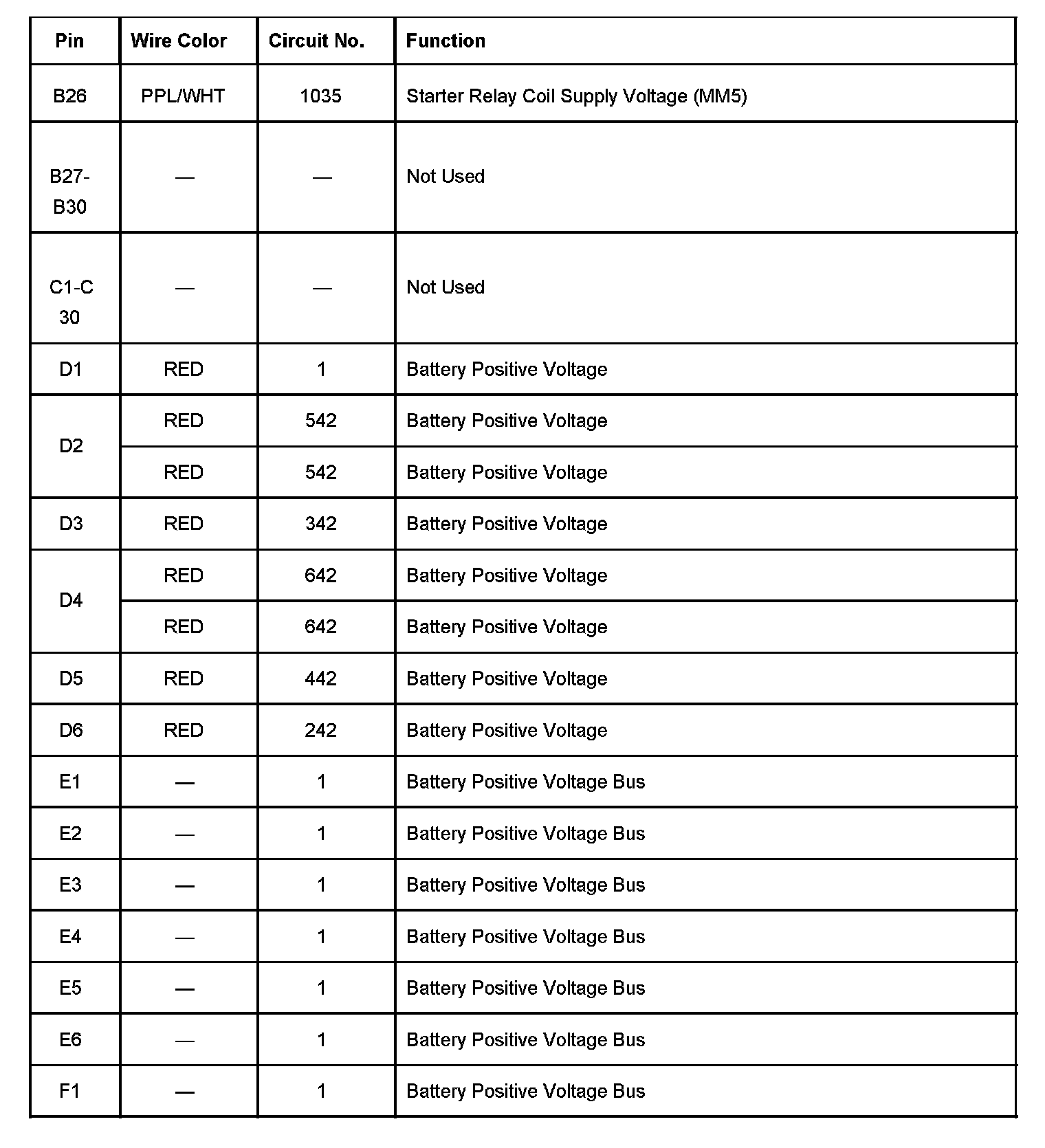

Fuse Block - Underhood Wire Entry Part 4:
