Cavalier L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

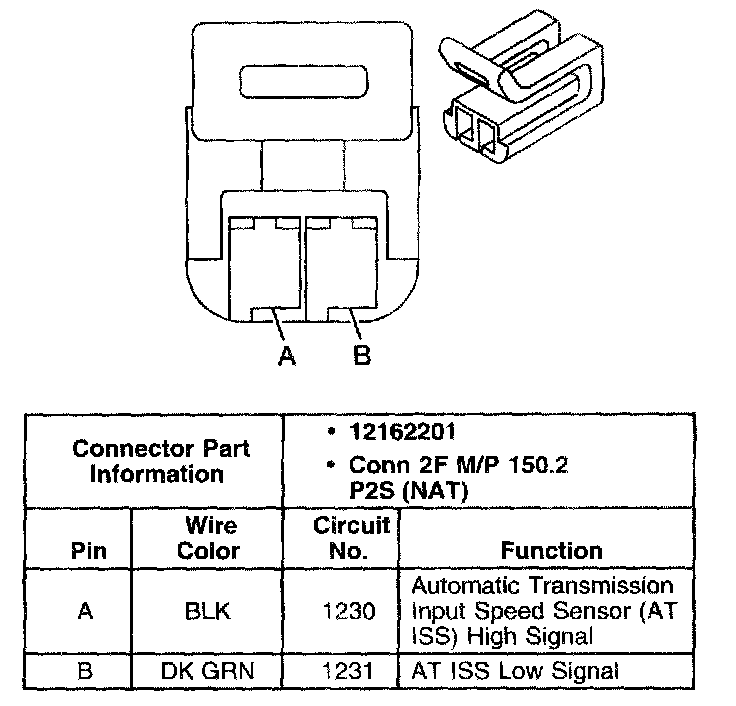

Input Speed Sensor Connector, Wiring Harness Side:
Automatic Transmission Output Shaft Speed Sensor Connector, Wiring Harness Side:
