Power Door Lock Relay: Service and Repair

LOCK RELAY REPLACEMENT - POWER DOOR

REMOVAL PROCEDURE




1. Remove the passenger carpet retainer.

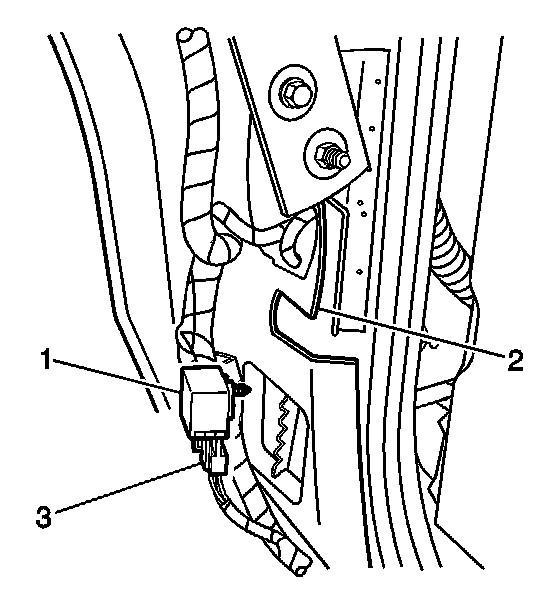

2. Remove enough of the carpet to access the door lock relay (1) located on the passenger hinge pillar (2).
3. Pull the relay (1) away from the hinge pillar (2) disengaging the rosebud retainer.
4. Disconnect the electrical connector (3) from the relay (1).
5. Remove the relay (1) from the vehicle.

INSTALLATION PROCEDURE

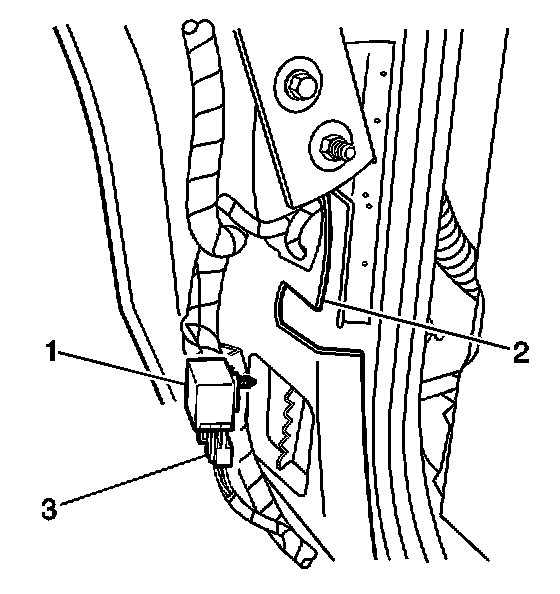

1. Position the relay (1) into the vehicle.
2. Connect the electrical connector (3) to the relay (1).
3. Attach the rosebud retainer on the relay (1) to the hinge pillar (2).
4. Install the carpet to a desired appearance.
5. Install the passenger carpet retainer.
