Astro Van AWD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Locations
>>
Sdm, IP Module, Discriminating Sensor
Sdm, IP Module, Discriminating Sensor

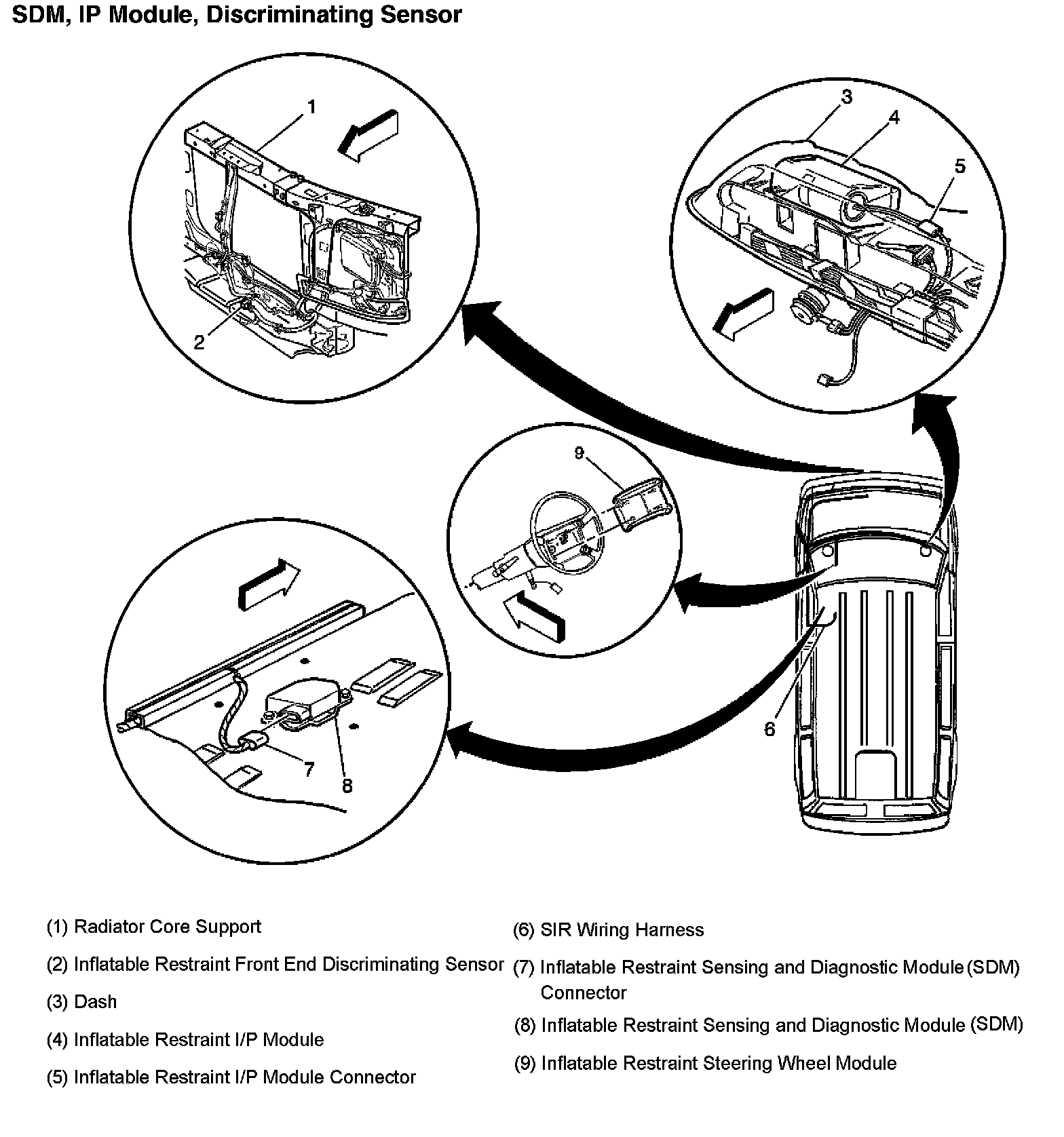

SDM, IP Module, Discriminating Sensor:

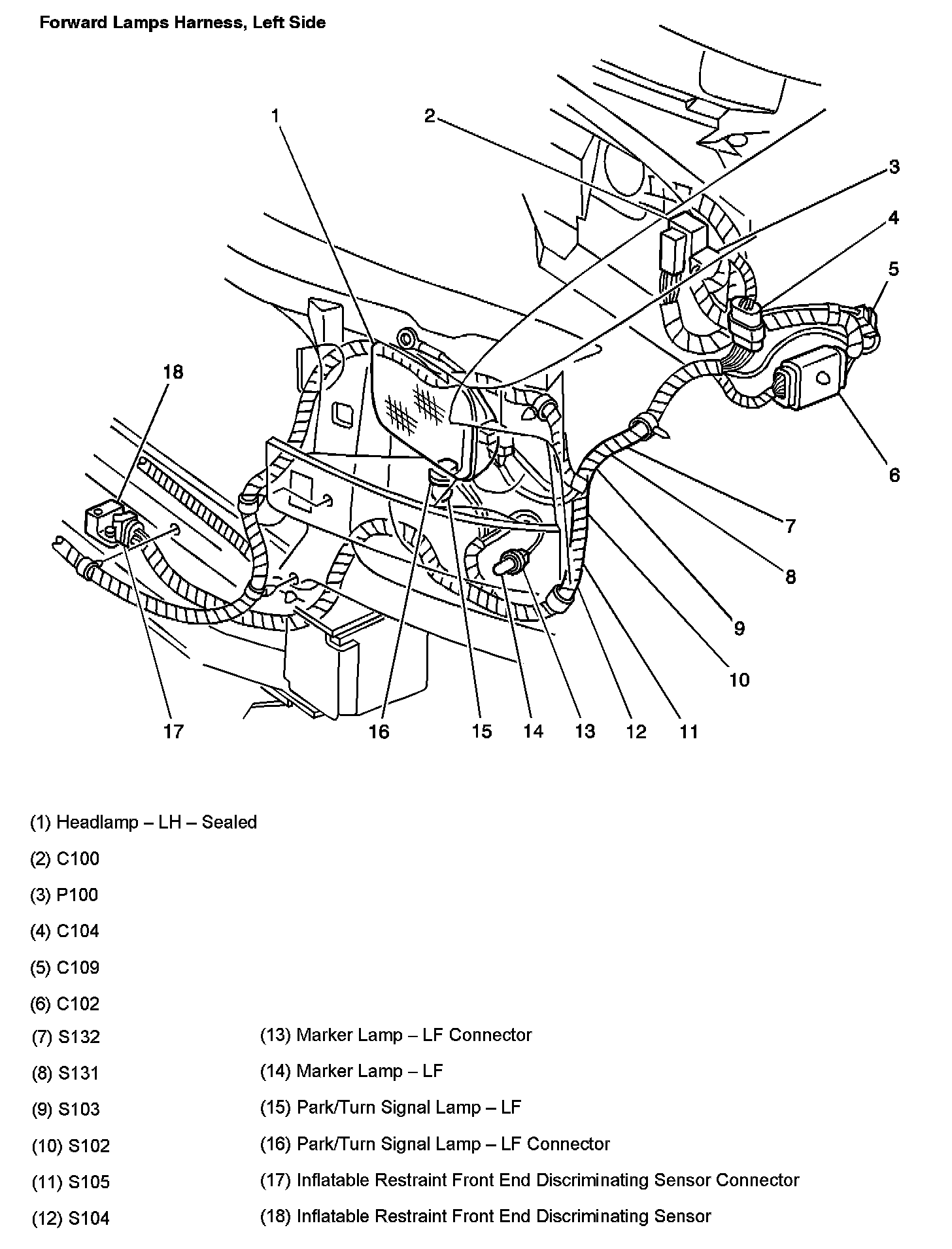

Forward Lamps Harness, Left Side:
