Home >> Chevrolet >> 2003 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Scan Tool Output Controls

Scan Tool Output Controls

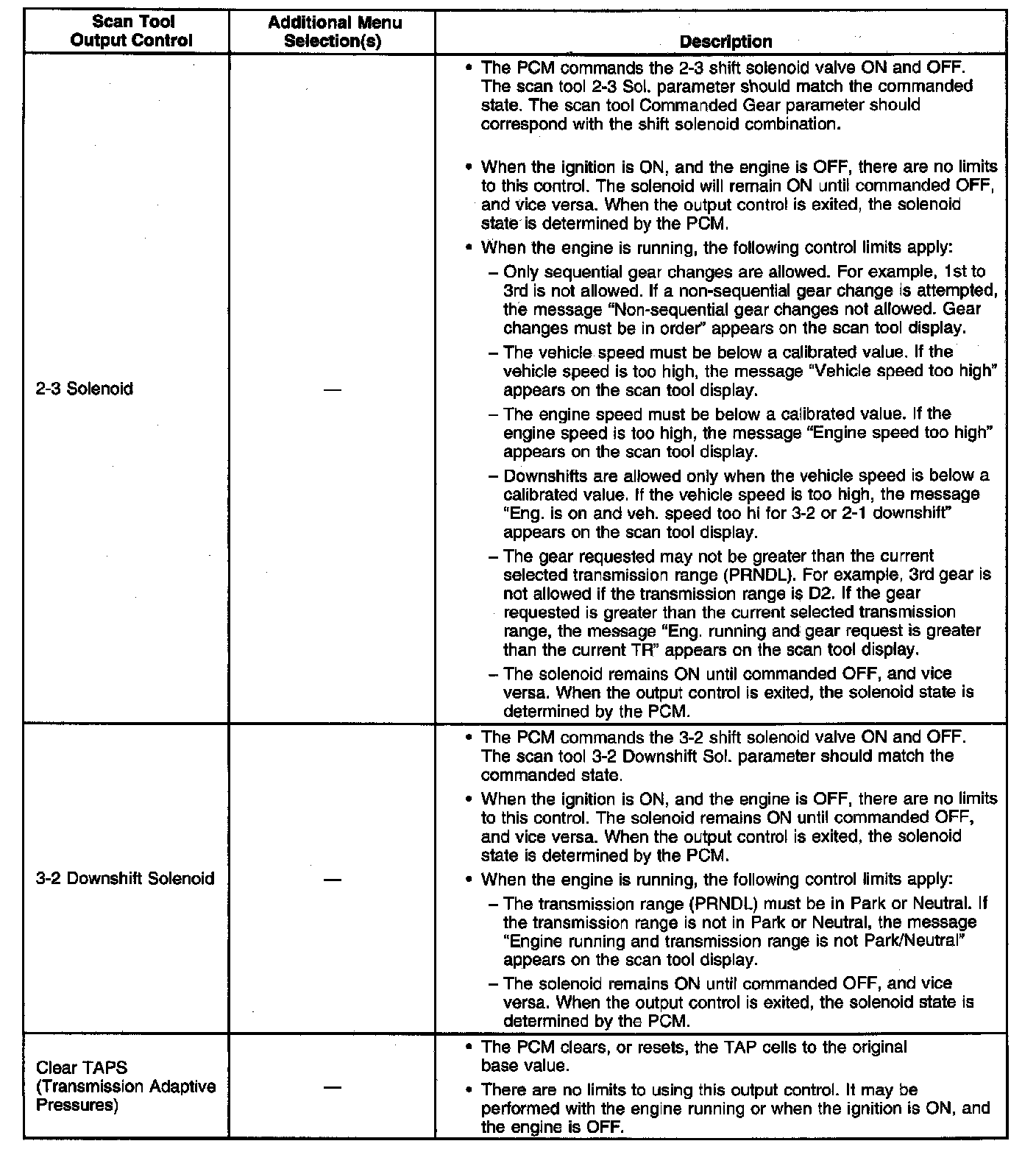

Steps 1 - 4:

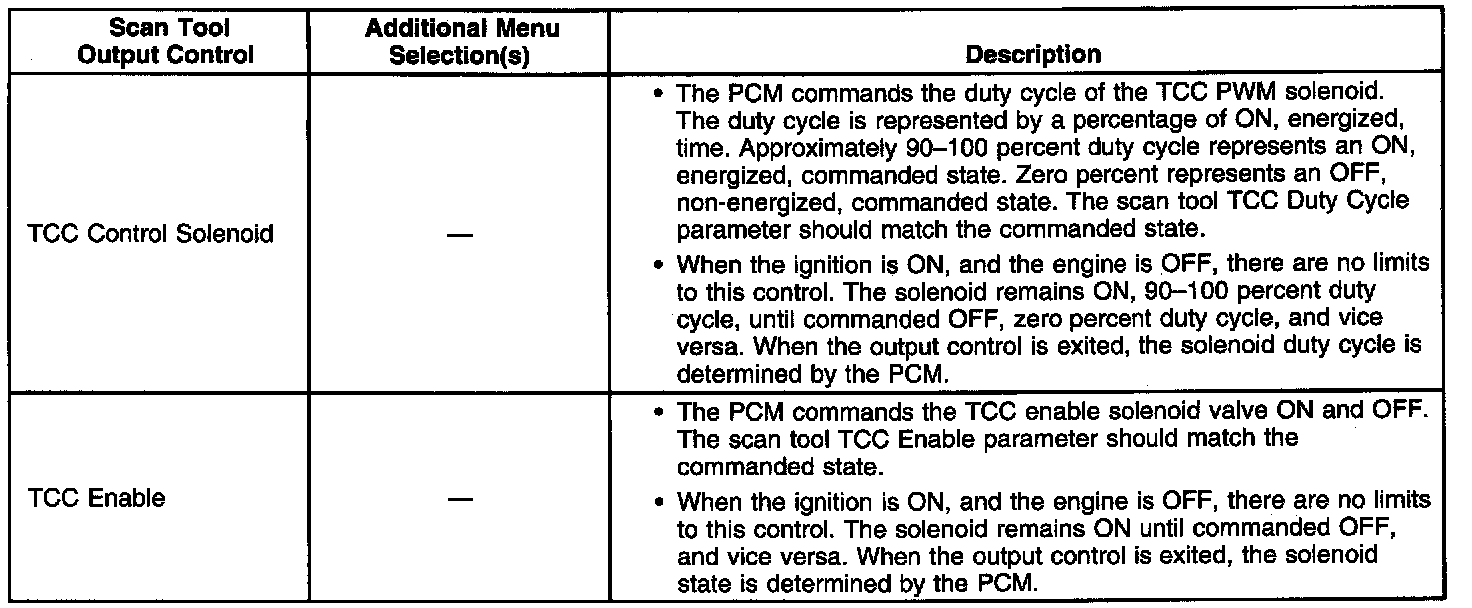

Steps 2 - 4:

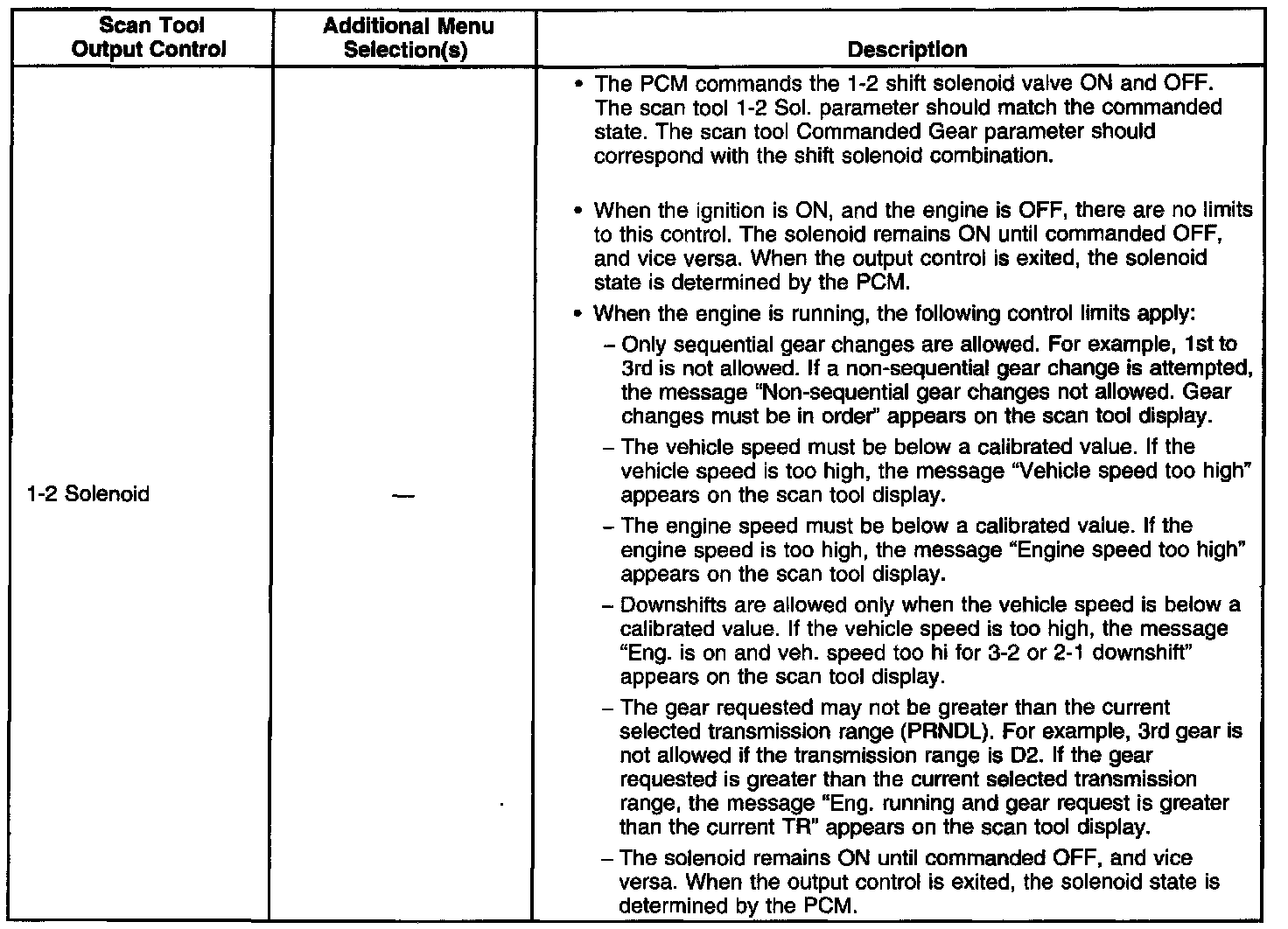

Steps 3 - 4:

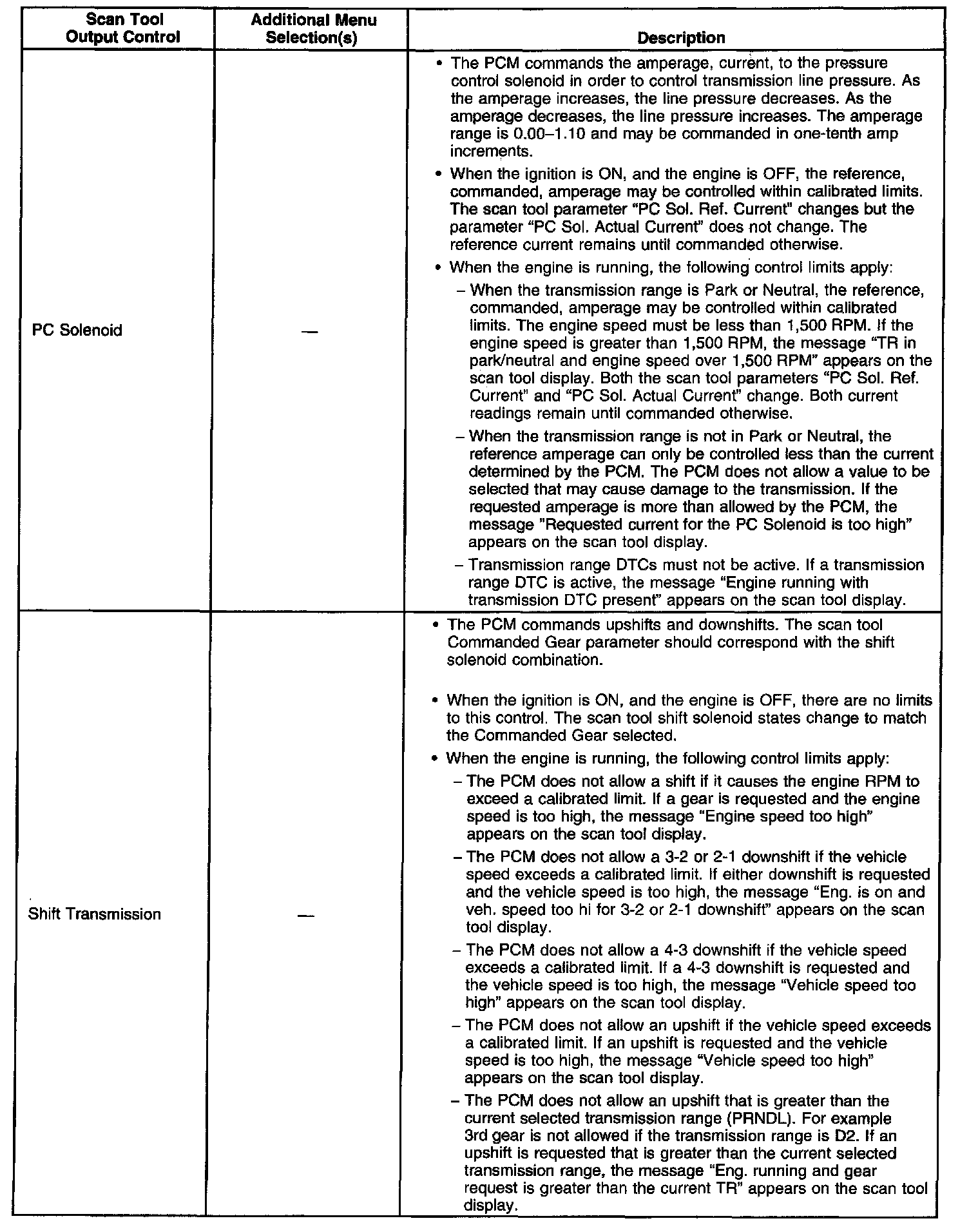

Steps 4 - 4:
