Home >> Chevrolet >> 2003 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Transfer Case >> Drive Components

Drive Components





Part 1 of 2





Part 2 of 2

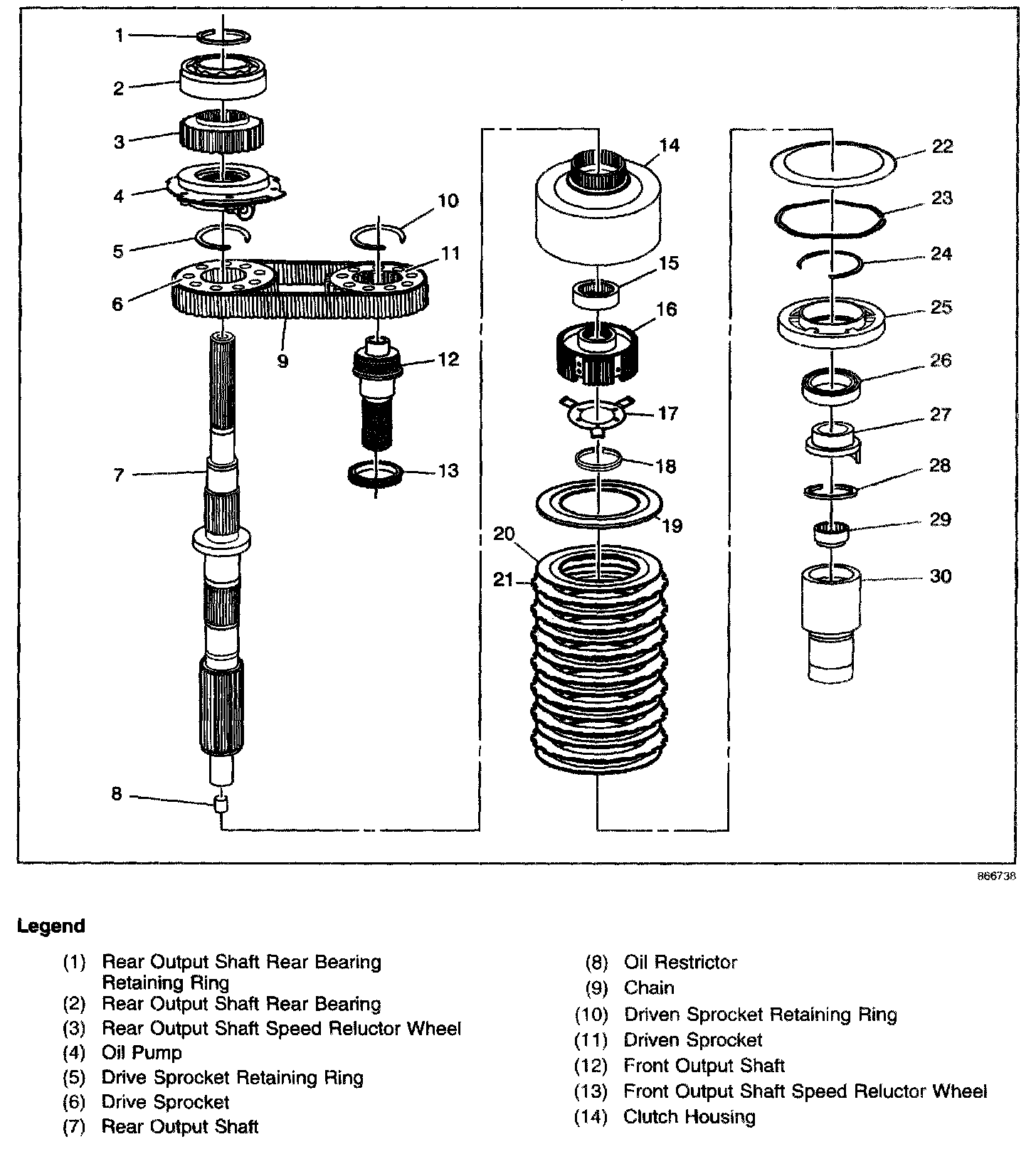

NVG 136 Drive Components
