Home >> Chevrolet >> 2003 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper Engine View 1

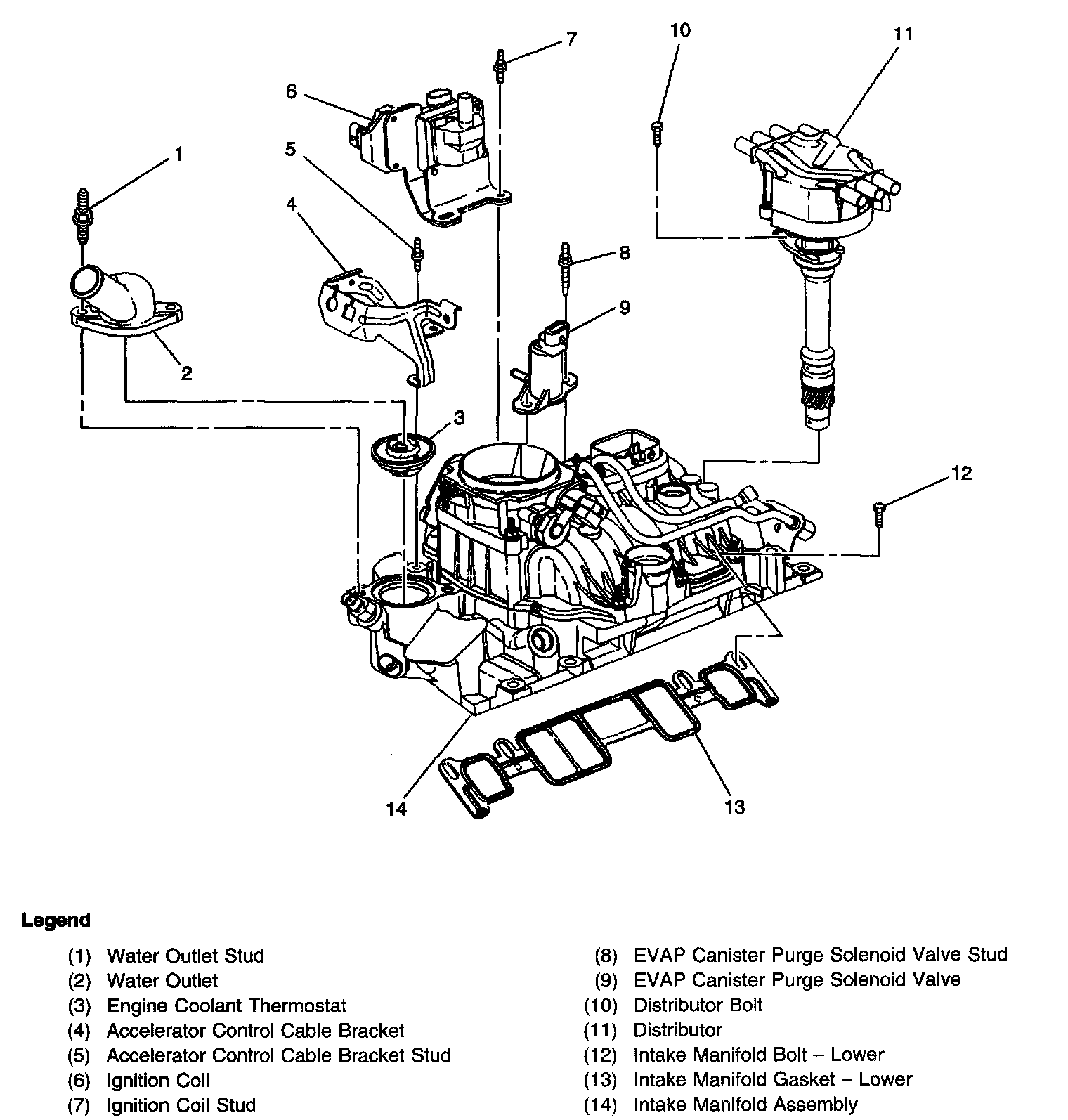

Upper Engine View 1
