Internal Parts

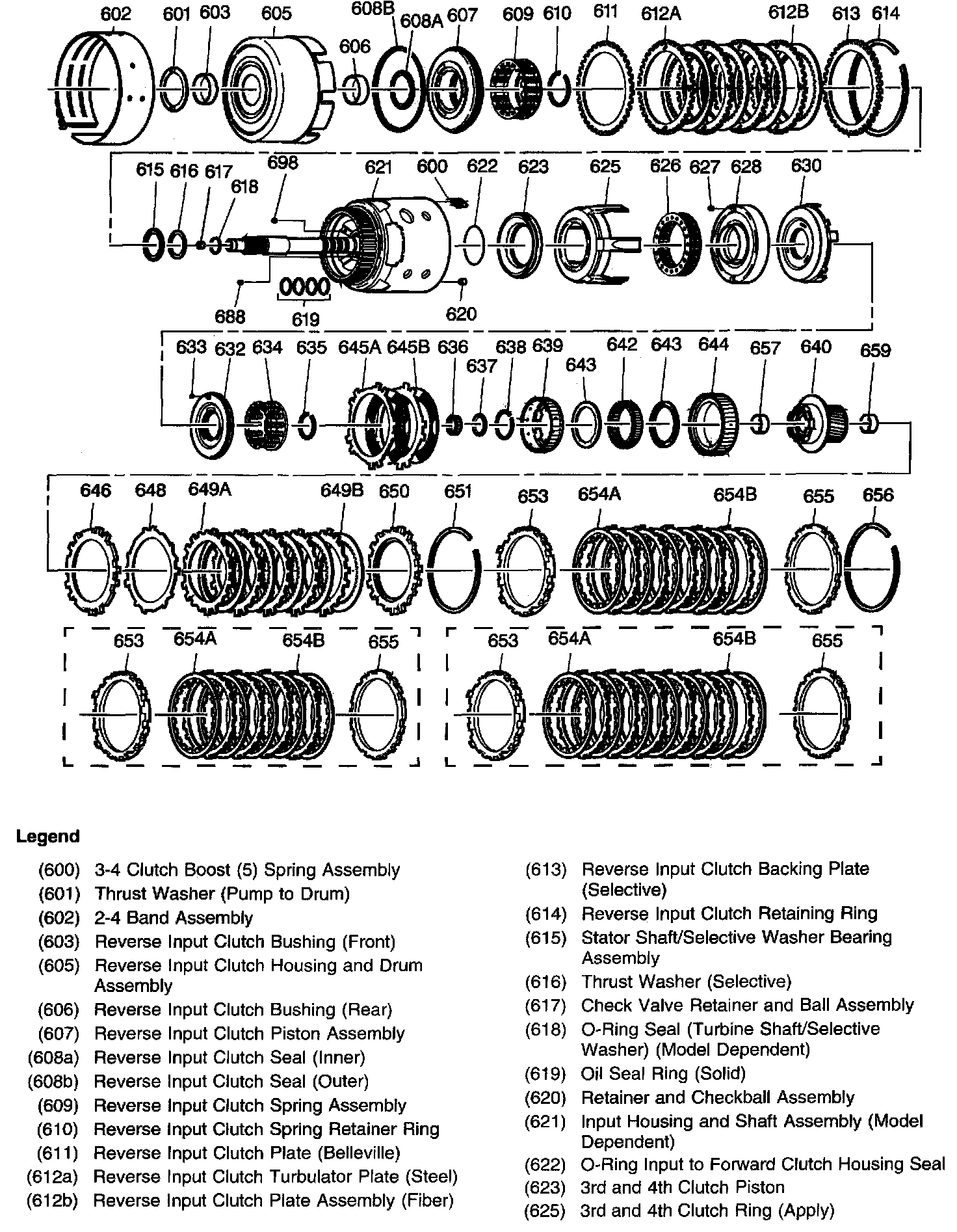

Internal Parts (1 of 2):

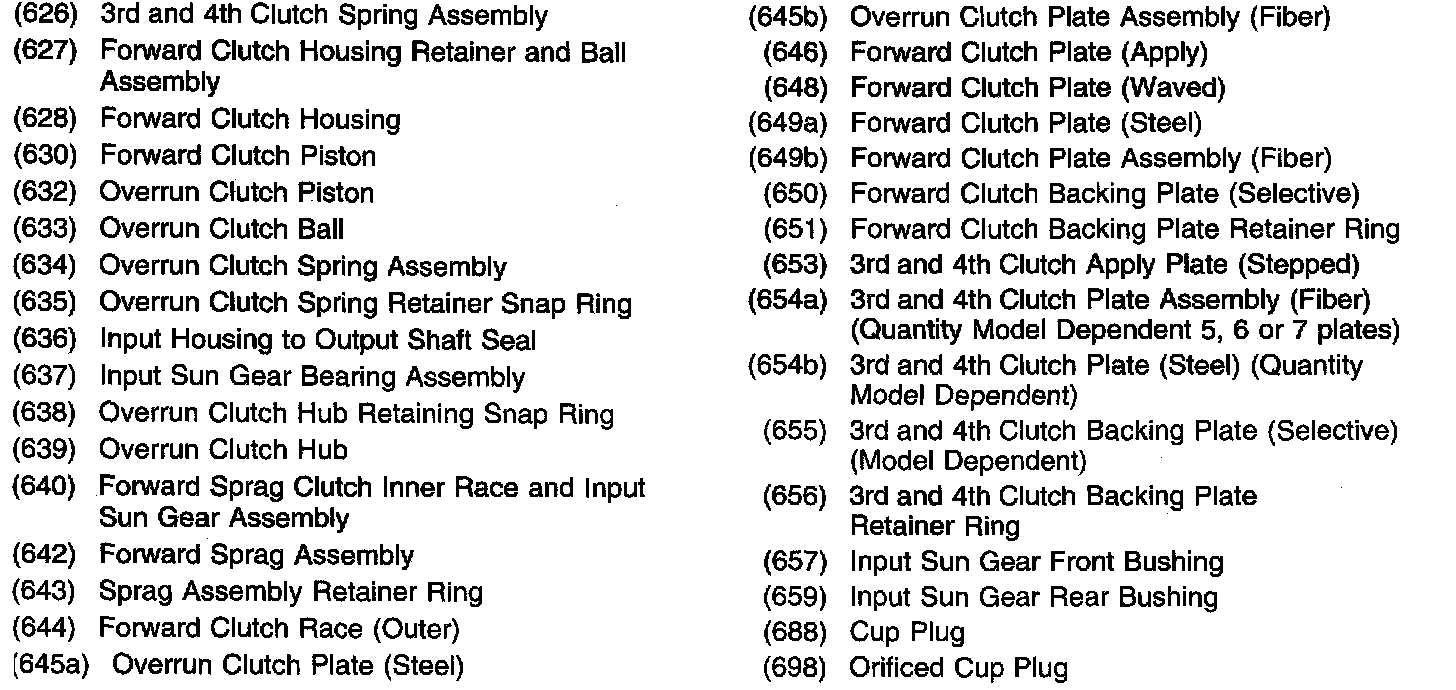

Internal Parts (1 of 2) (continued):

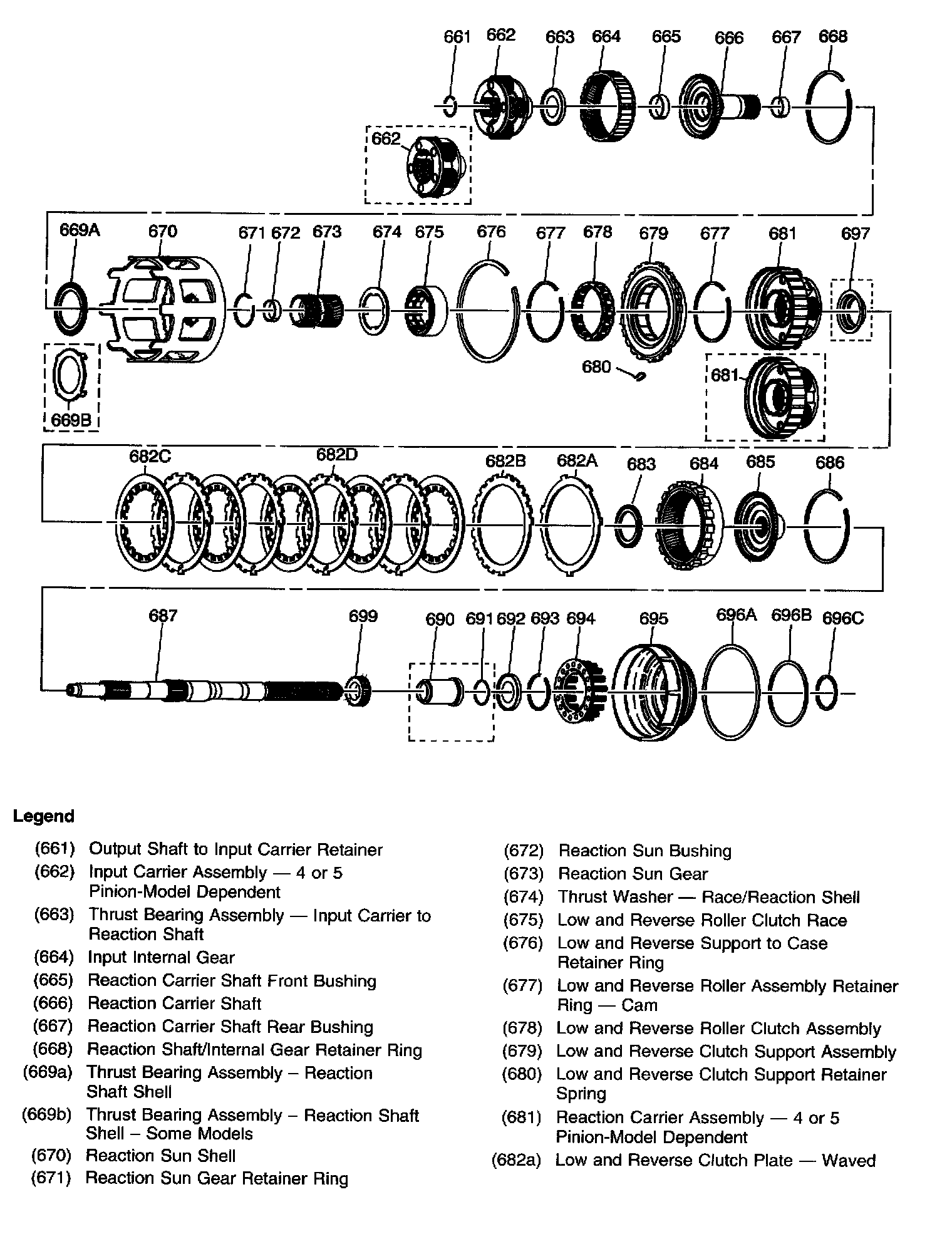

Internal Parts (2 of 2):

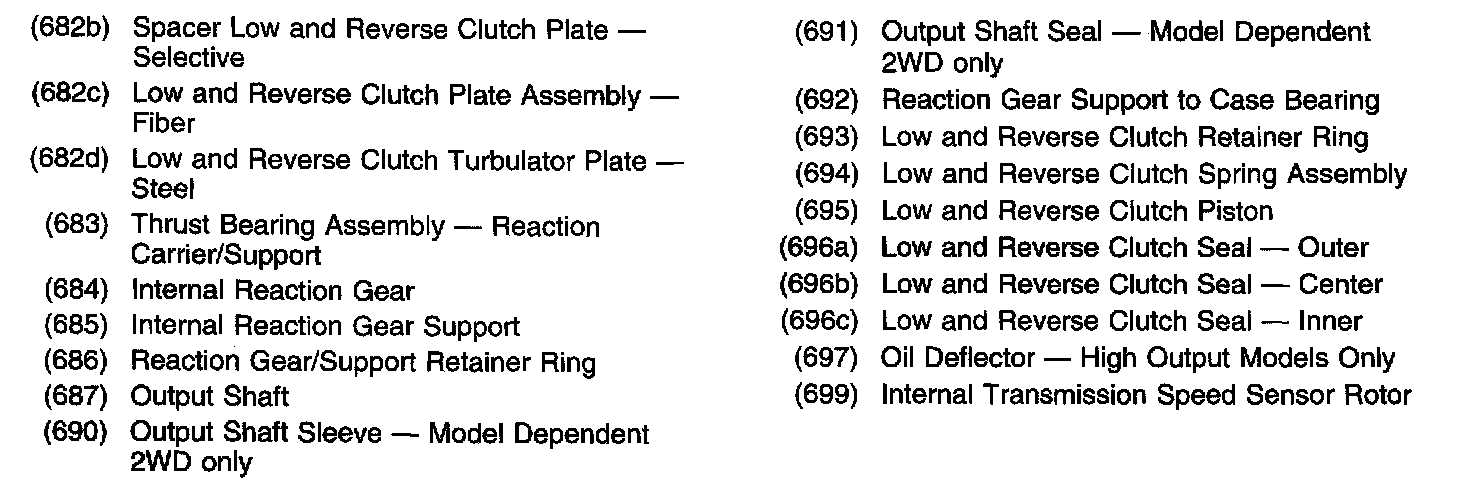

Internal Parts (2 of 2) (continued):
