Home >> Chevrolet >> 2003 >> Astro Van AWD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Switch

Wiper Switch

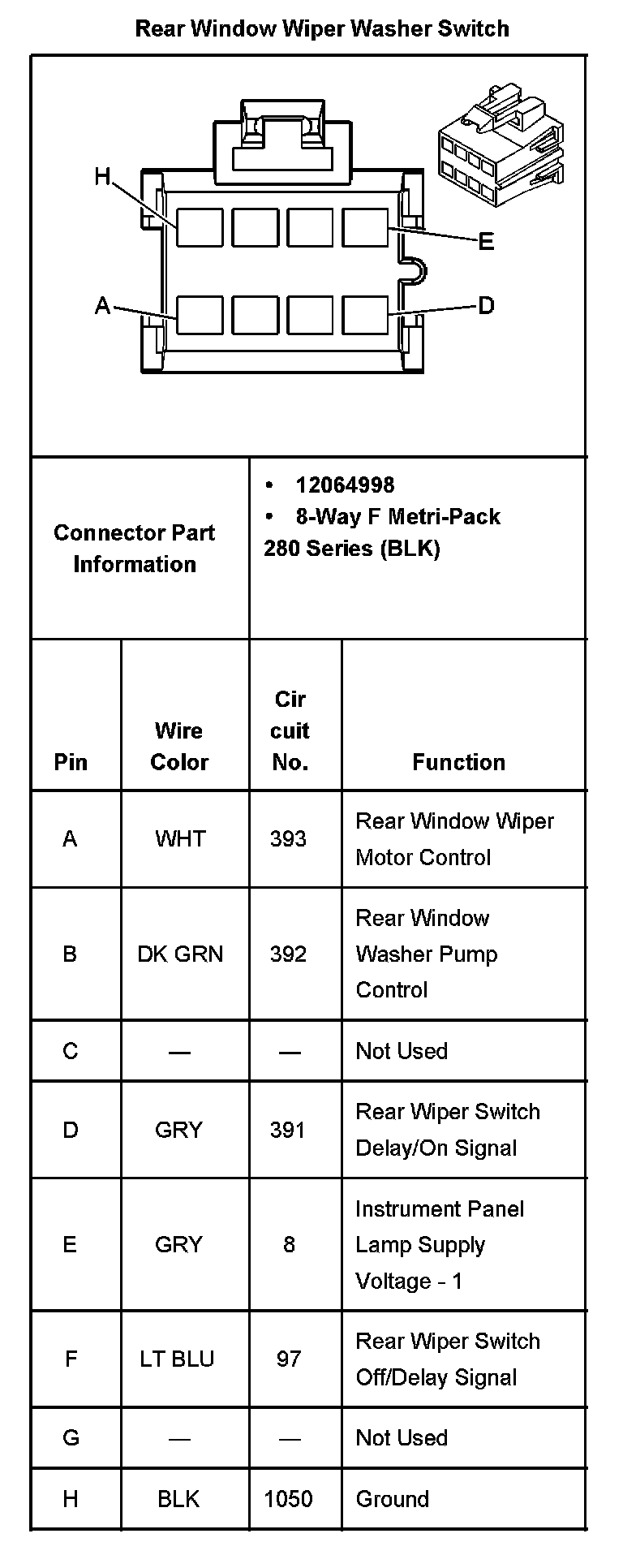

Rear Window Wiper Washer Switch:
