Electronic Brake Control Module

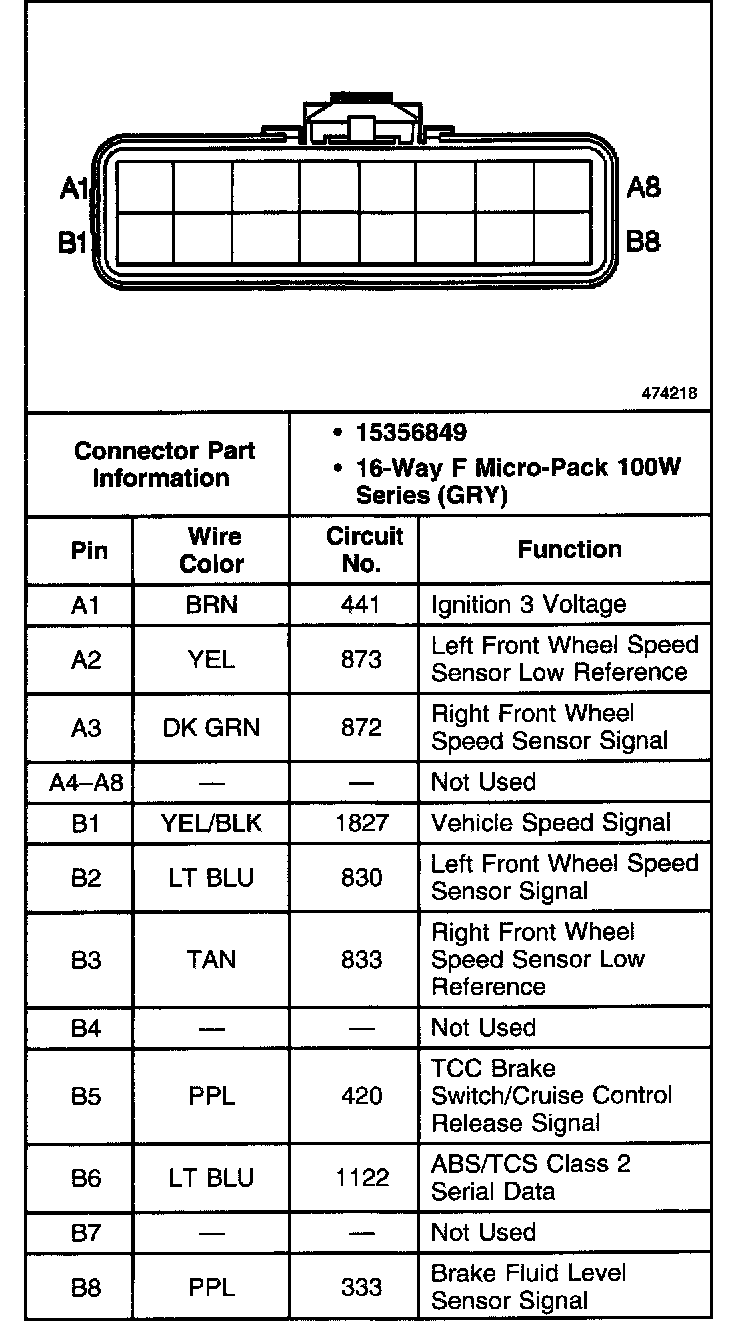

Electronic Brake Control Module (EBCM) C1:



Electronic Brake Control Module (EBCM) C2:
