Home >> Chevrolet >> 2002 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Locations >> Component Locations >> Modules >> HVAC Control Module

HVAC Control Module

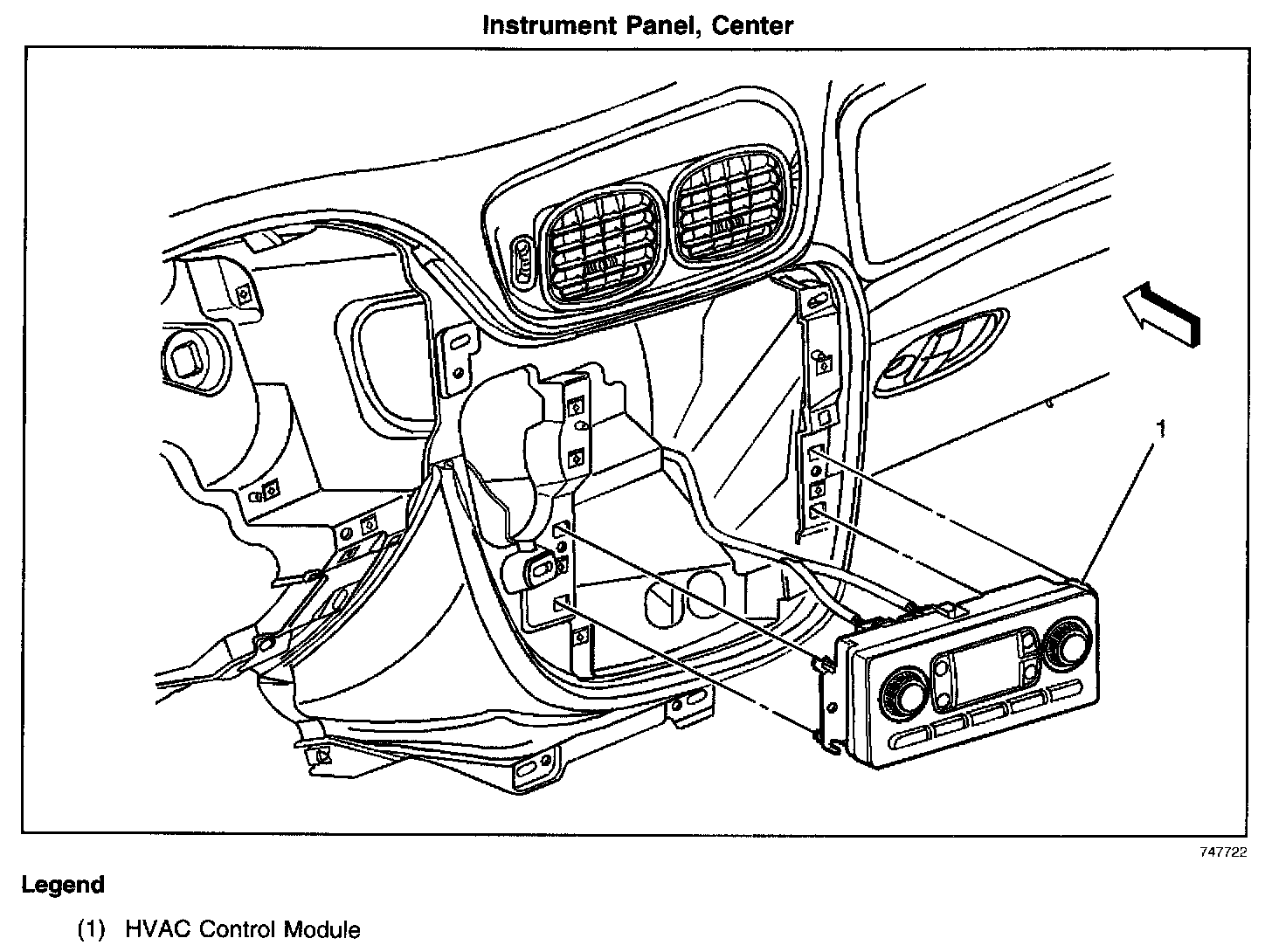

Locations View - HVAC Systems - Manual:

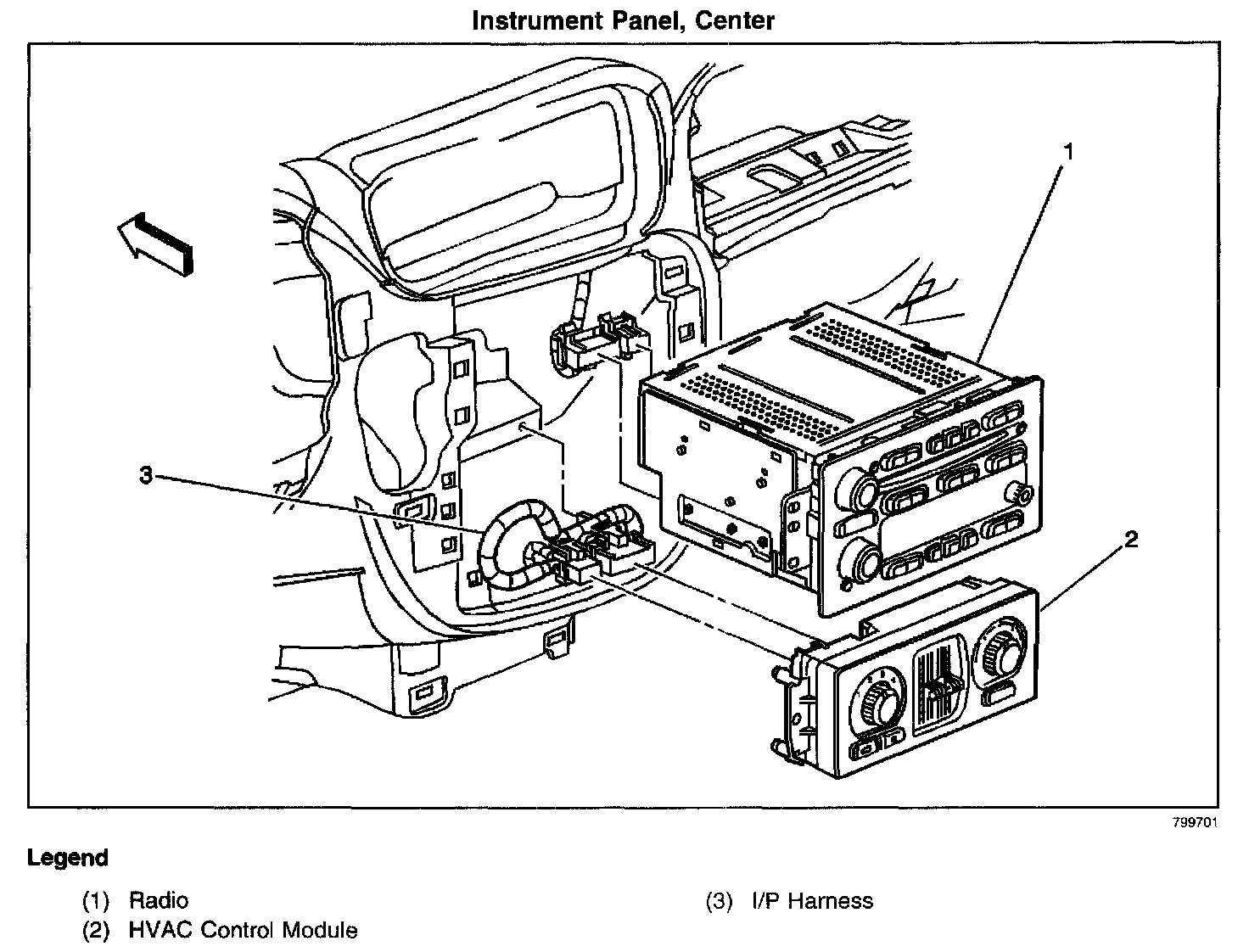

Locations View - HVAC Systems - Automatic:
