Transfer Case

Transfer Case Disassembled View





Part 1 of 2





Part 2 of 2

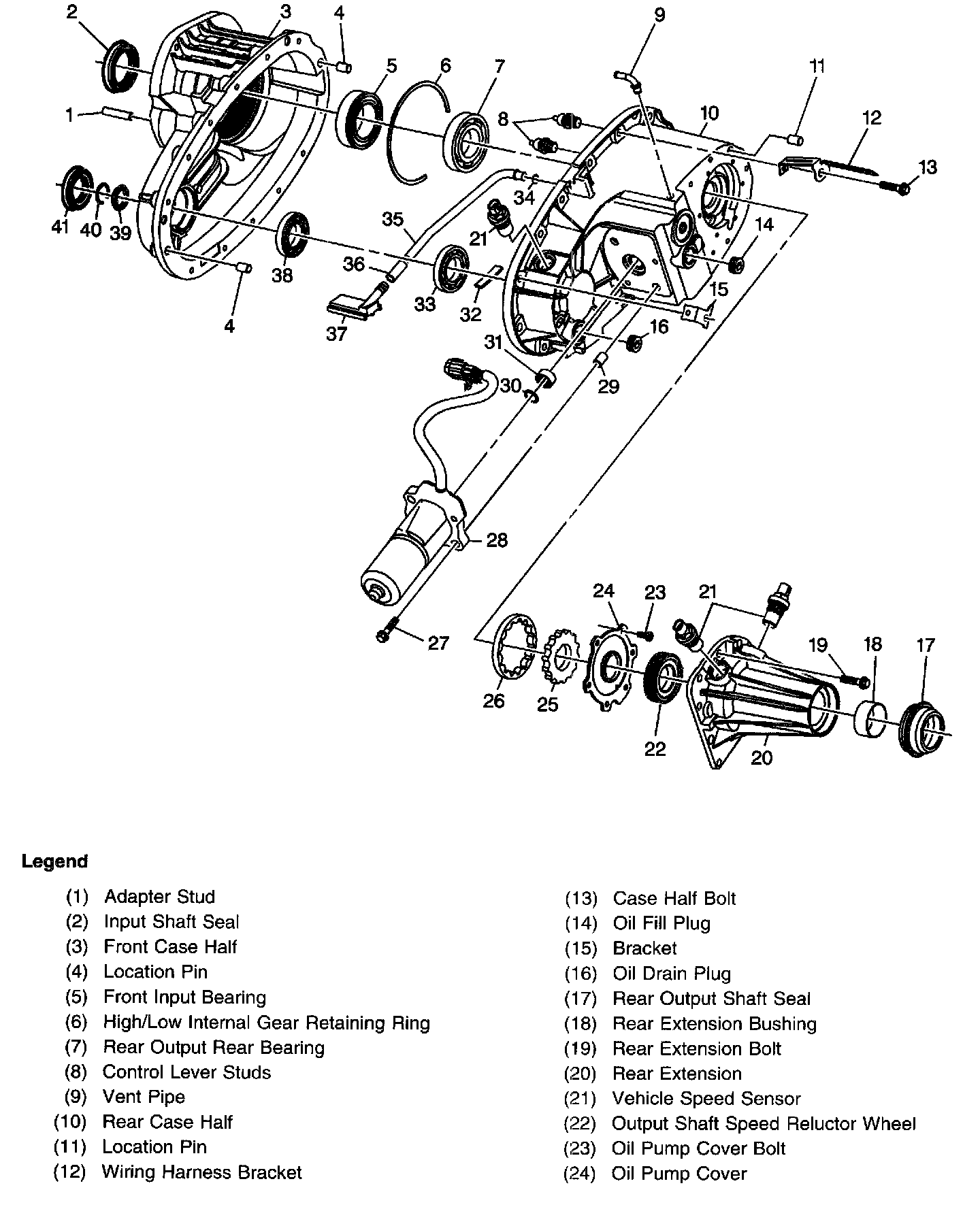

Case Components





Part 1 of 2





Part 2 of 2

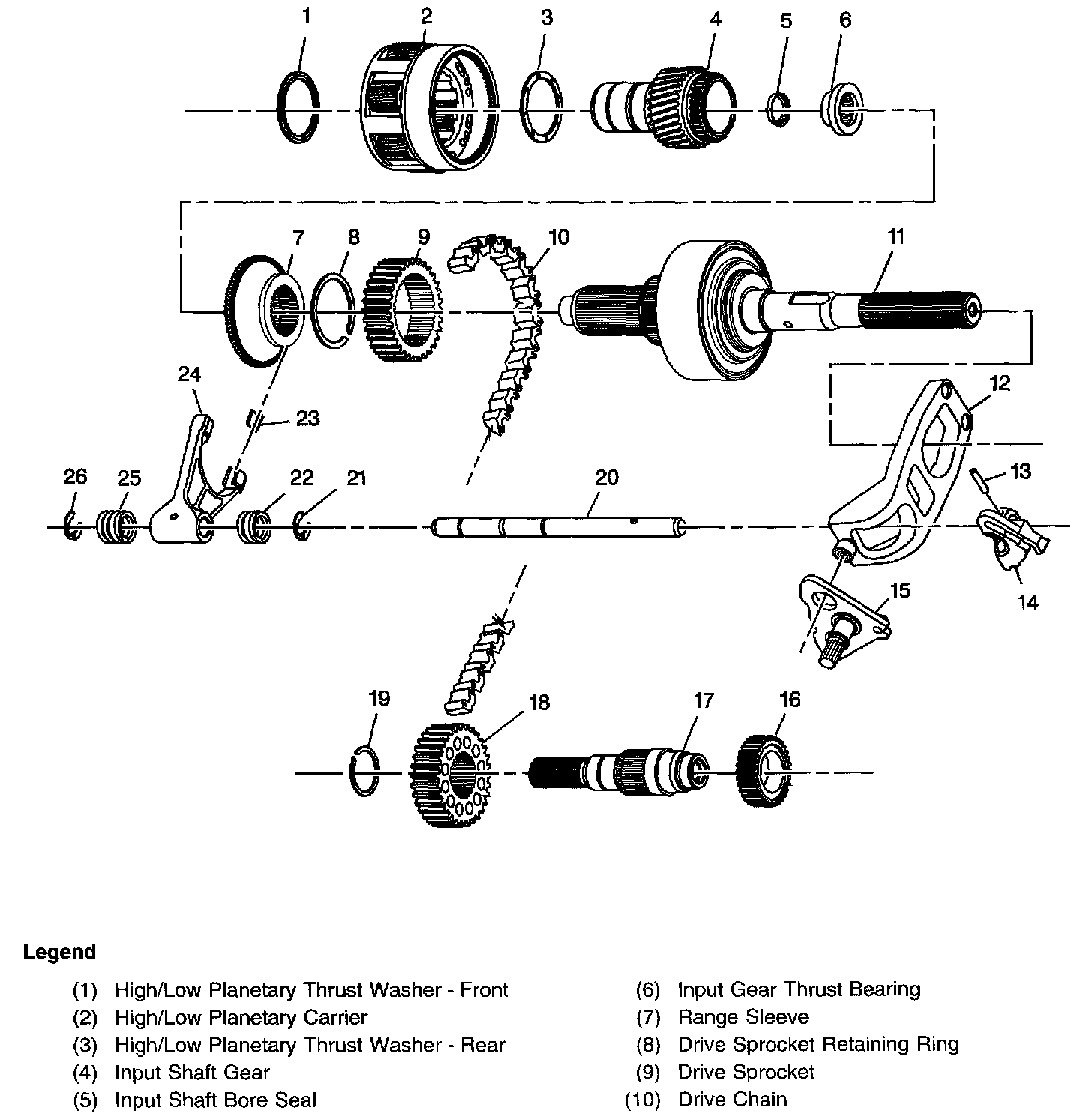

Internal Components

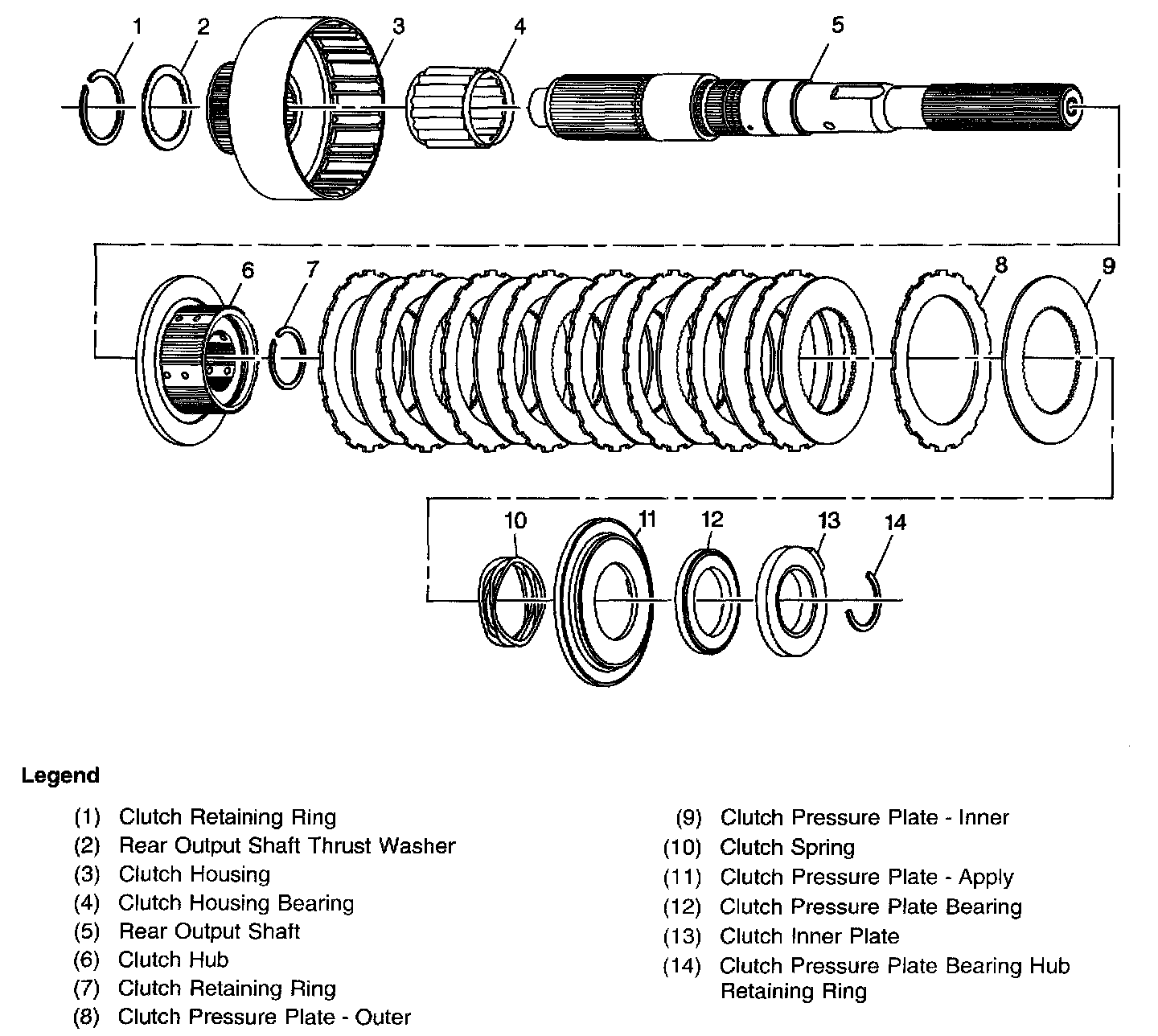

Rear Output Shaft Assembly
