Differential Assembly
>>

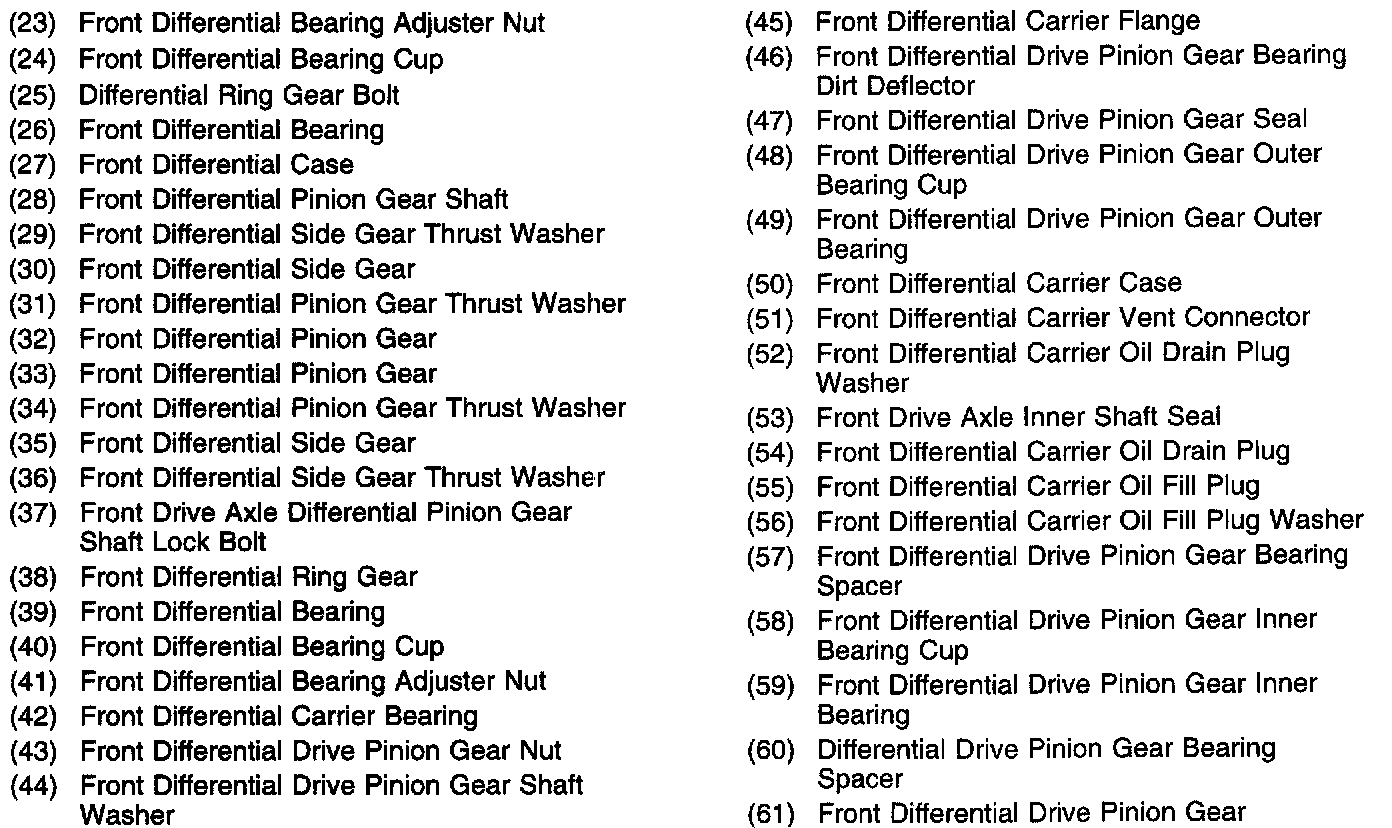

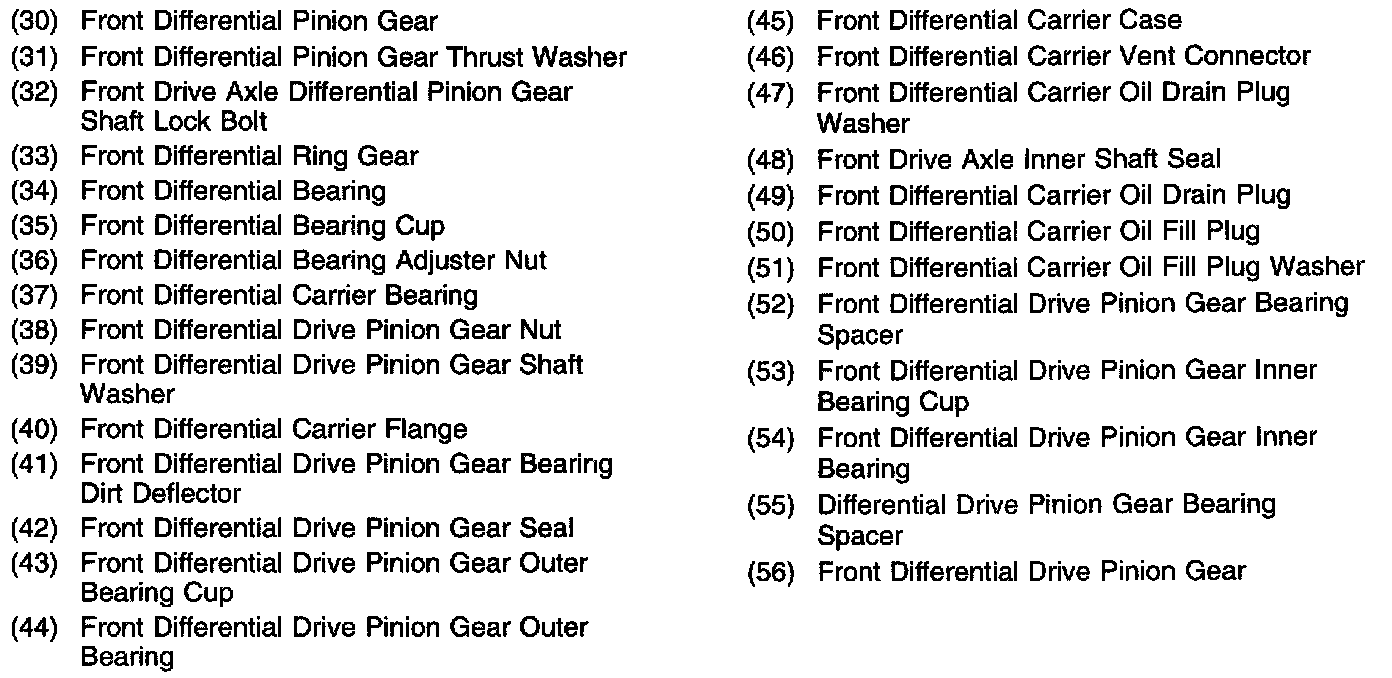

Front Drive Axle Disassembled Views
Front Drive Axle Disassembled Views
Front Drive Axle Disassembled Views

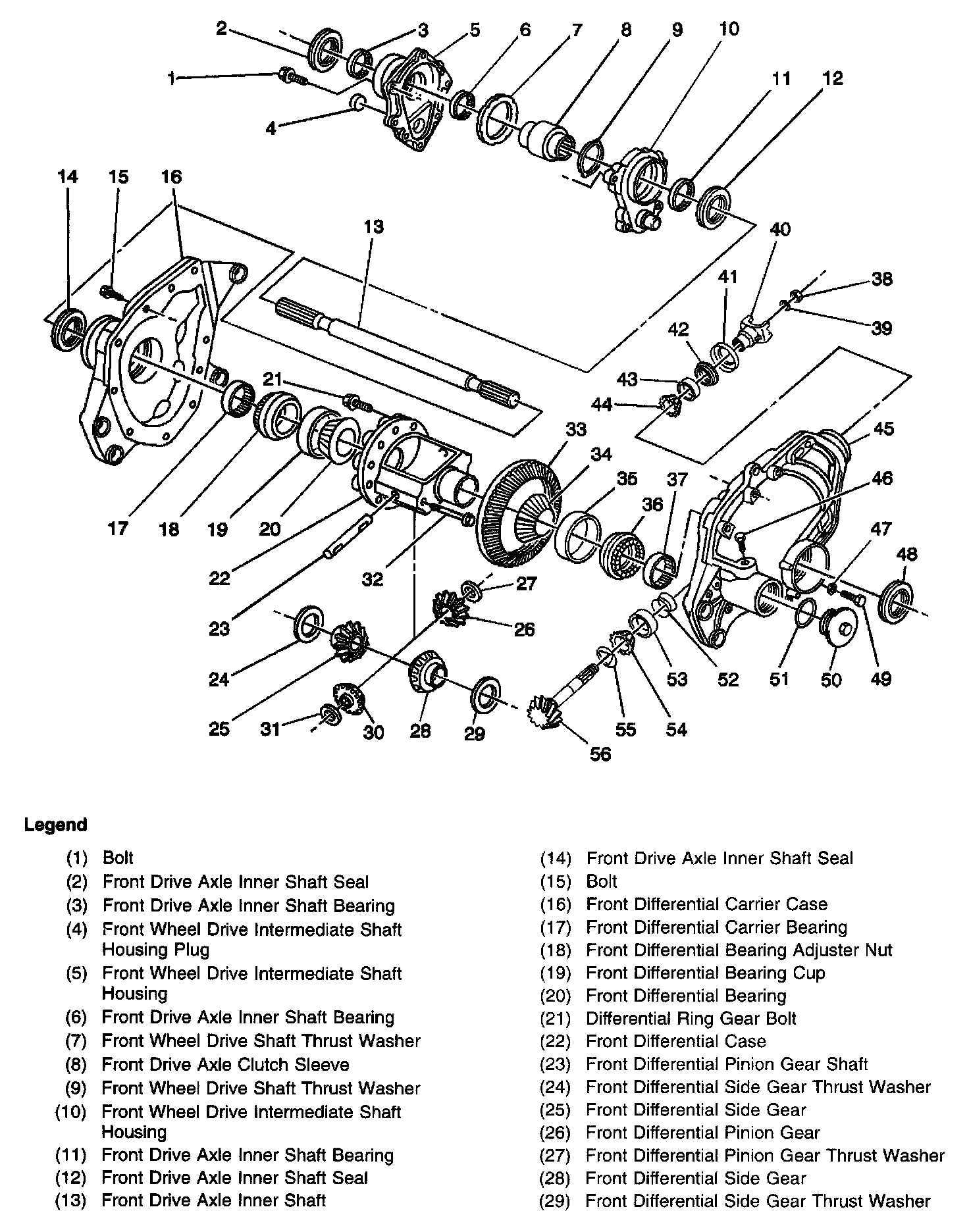

Front Drive Axle (7.25 in Axle) (S4WD)

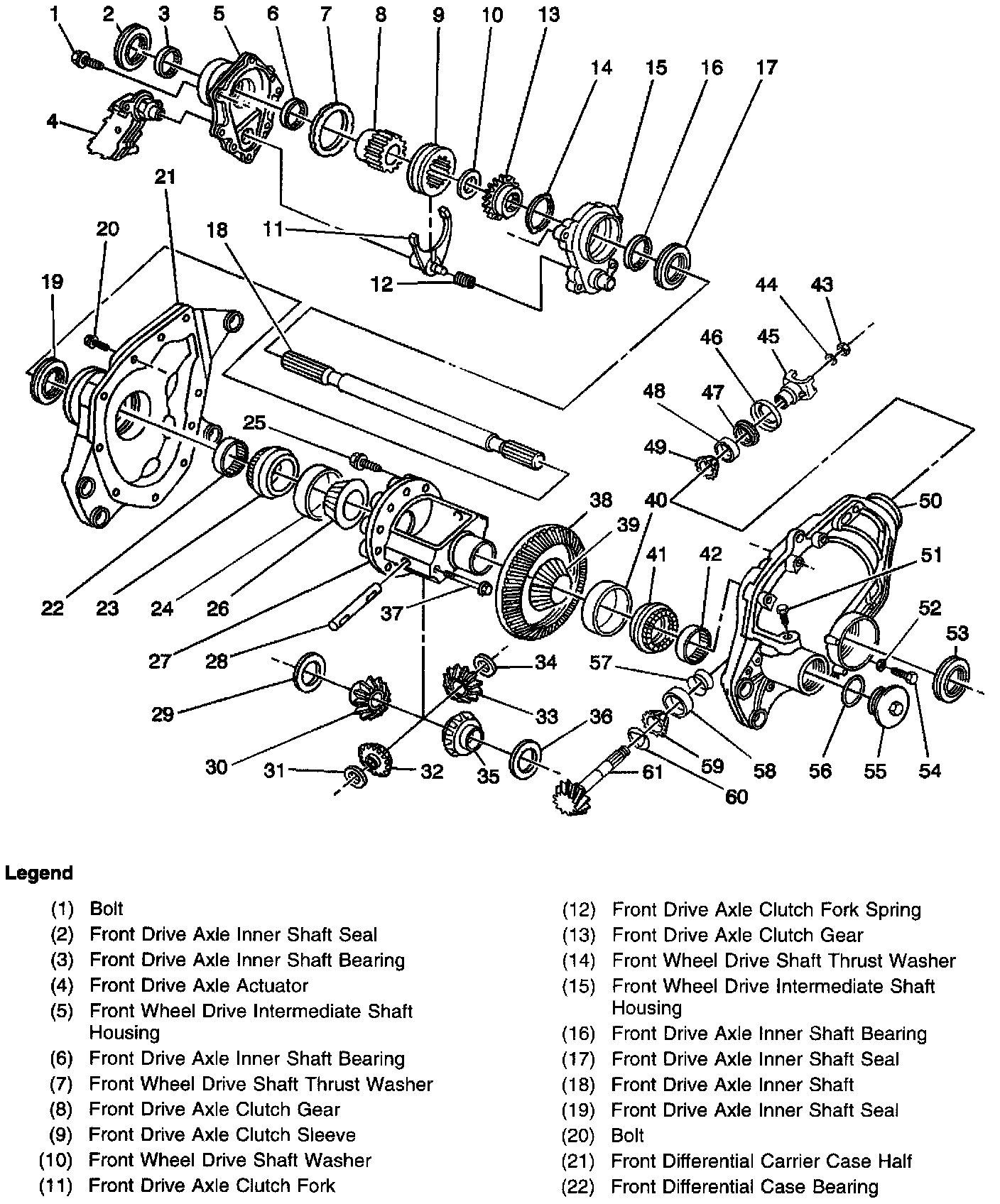

Front Drive Axle (7.25 in Axle) (A4WD)
