Home >> Chevrolet >> 2002 >> TrailBlazer 4WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case Actuator >> Transfer Case Encoder Motor

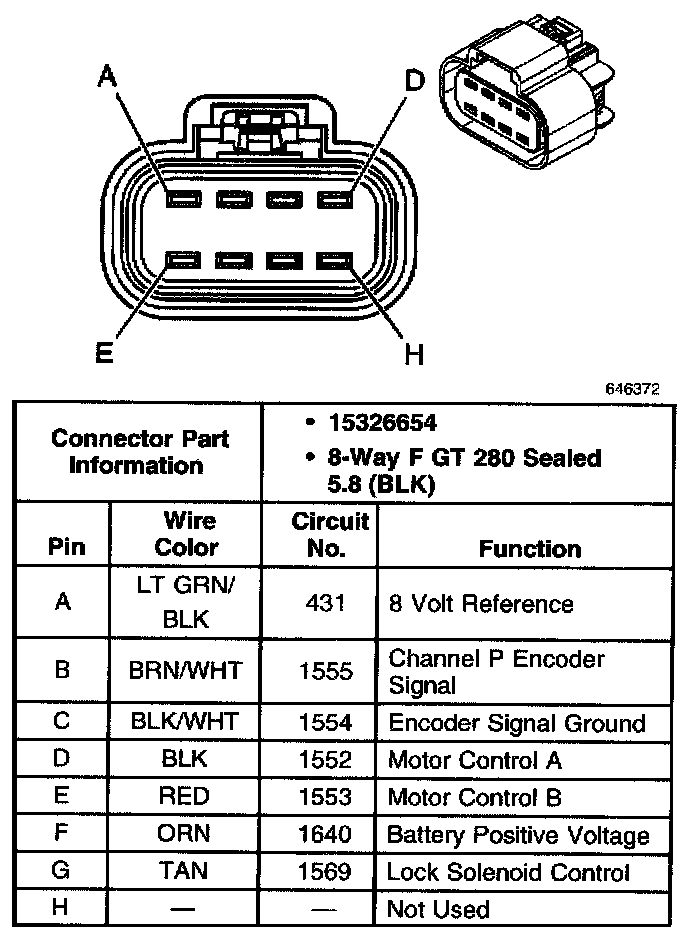

Transfer Case Encoder Motor
