Driver Door Module (DDM)

Driver Door Module (DDM) C1:

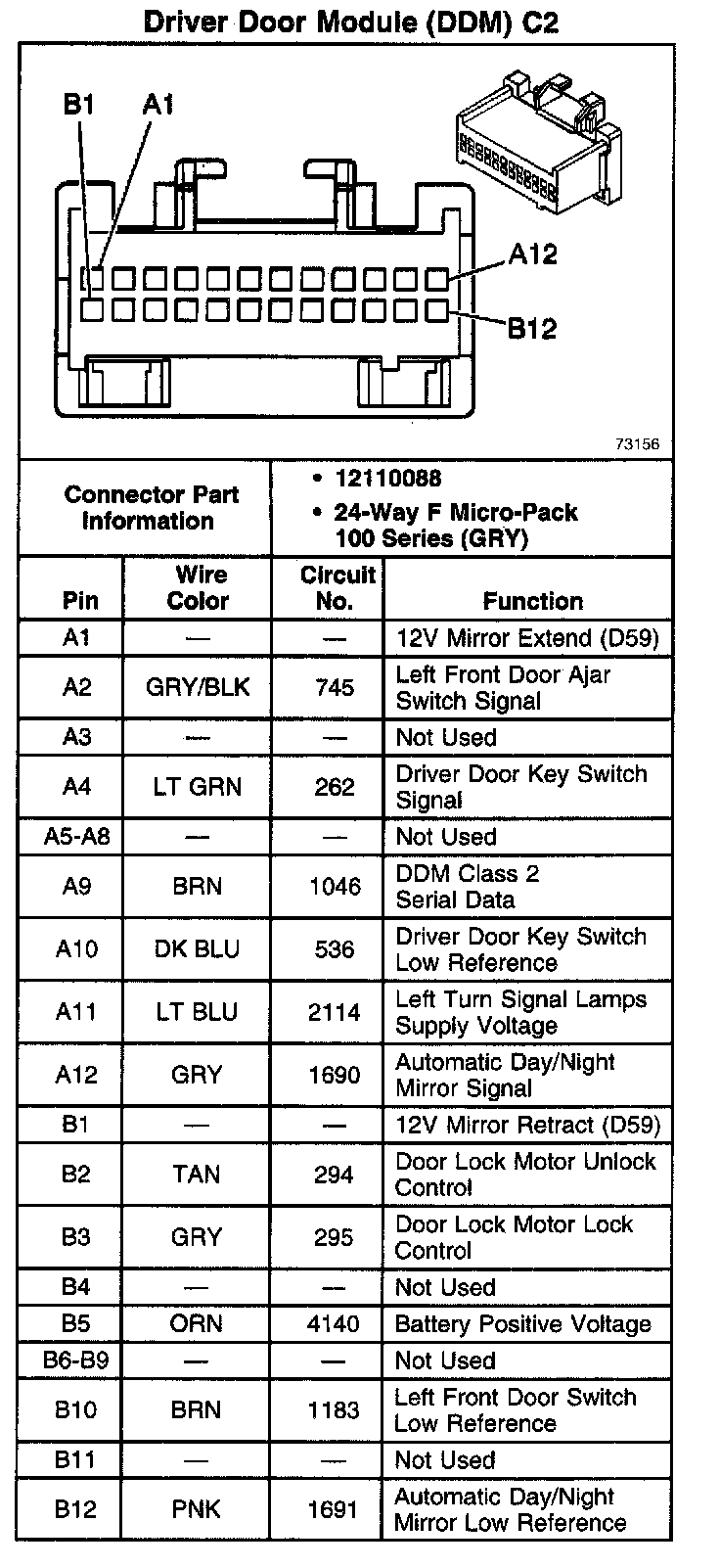

Driver Door Module (DDM) C2:

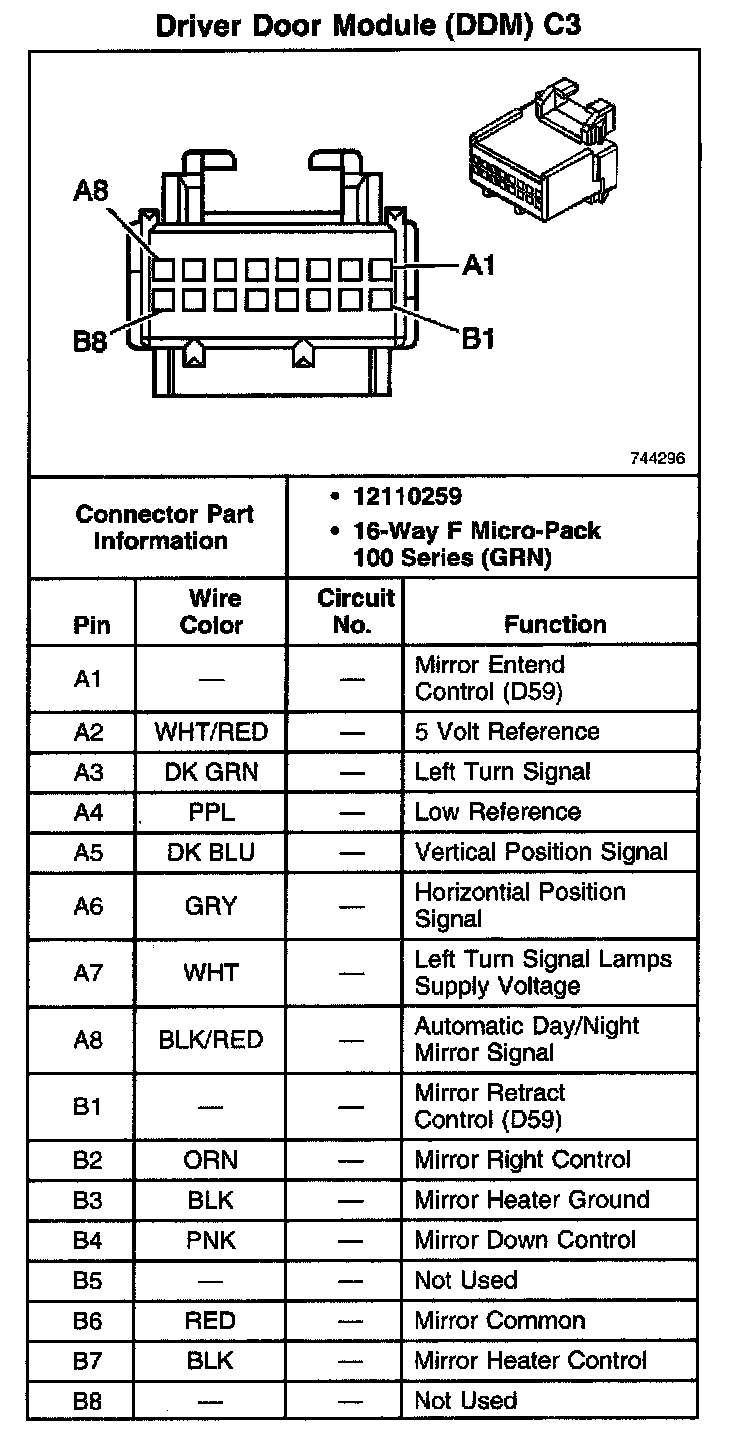

Driver Door Module (DDM) C3:

Driver Door Module (DDM) C4 (W/Memory Features):

Driver Door Module (DDM) C5:
