Home >> Chevrolet >> 2002 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - HVAC >> Control Module HVAC >> Locations >> Automatic Control

Automatic Control

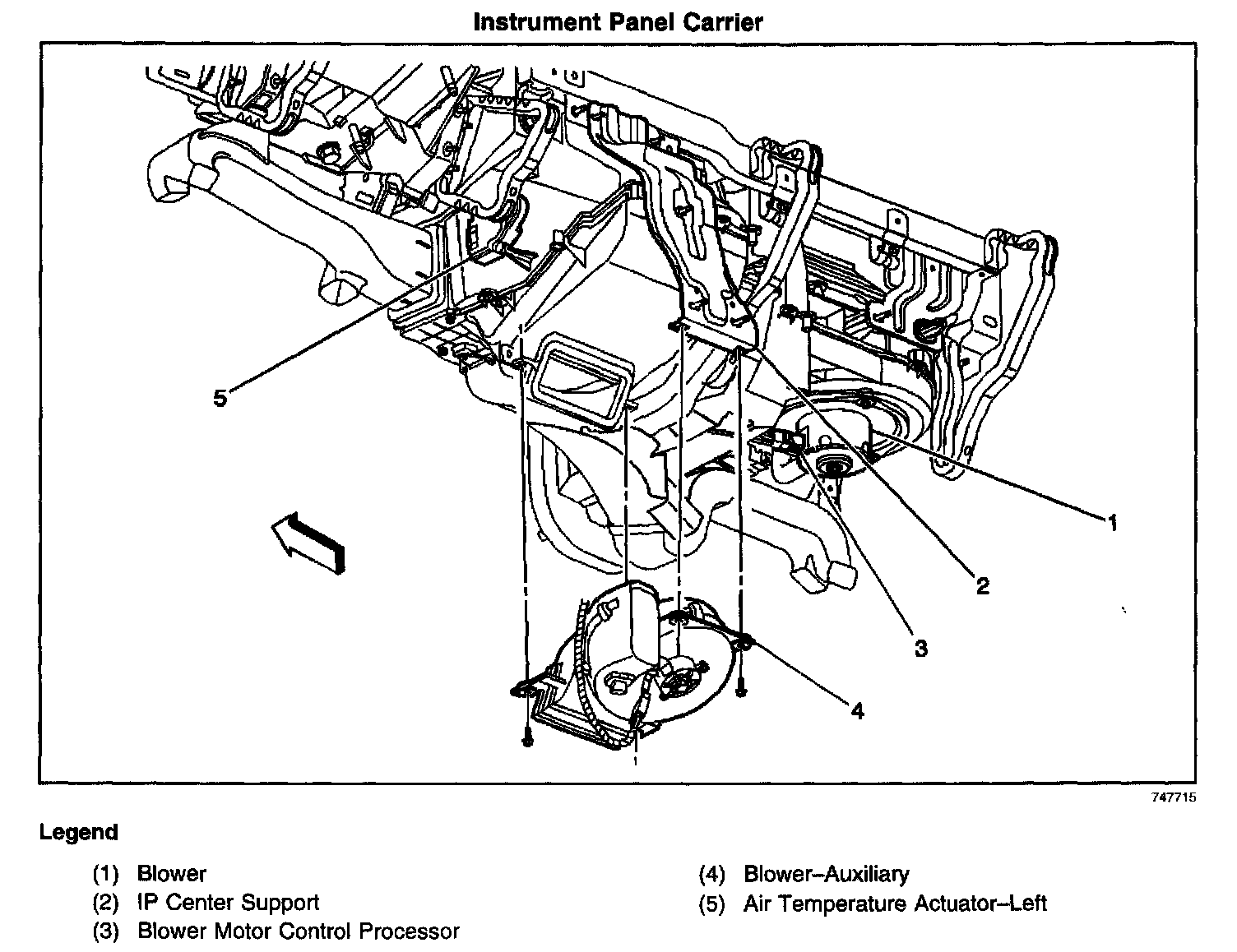

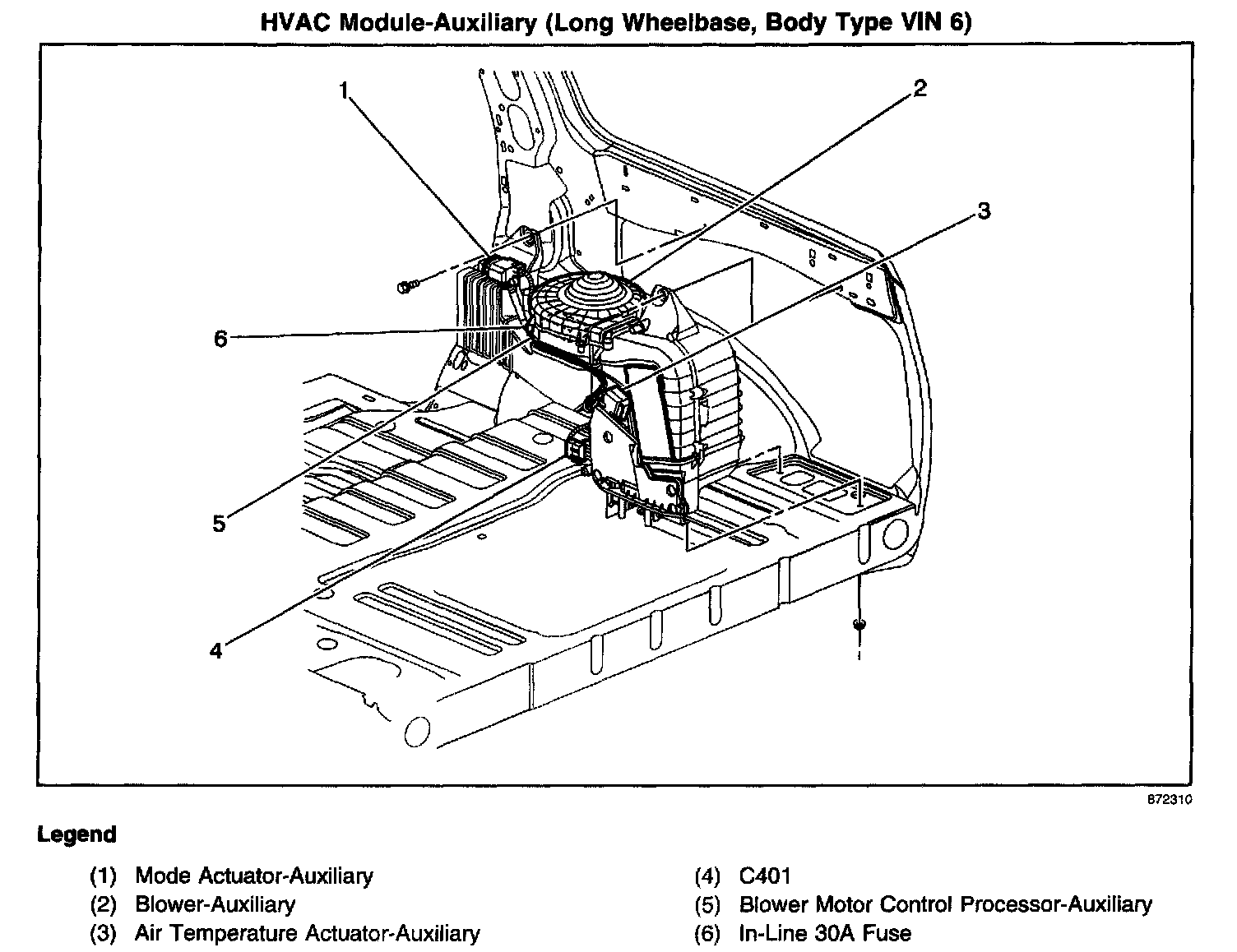

Locations View - HVAC Systems - Automatic:



Locations View - HVAC Systems - Automatic:
